Specifications

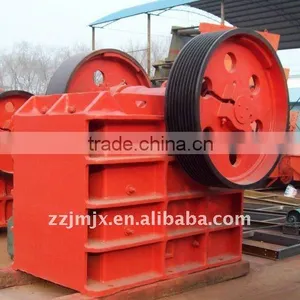

Metal Jaw Crusher1. jaw crusher condition
2. big crushing ratio
3. uniform products size

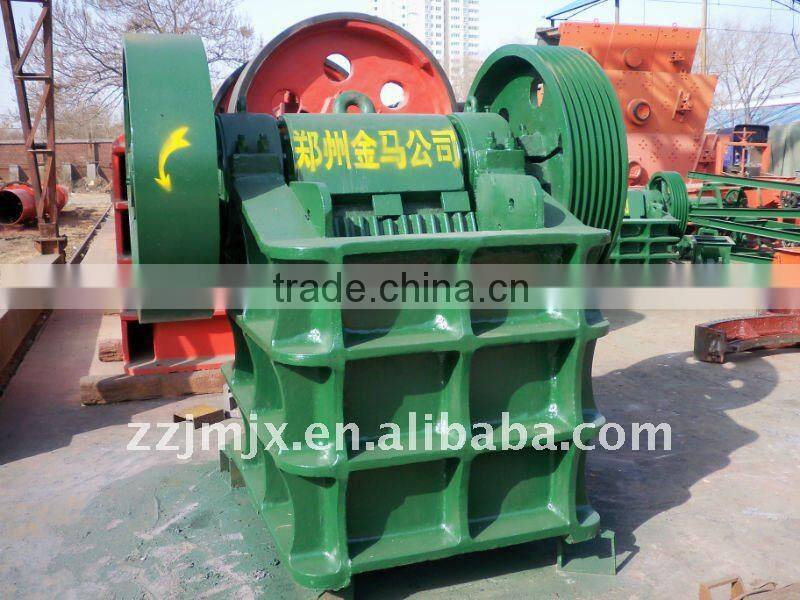

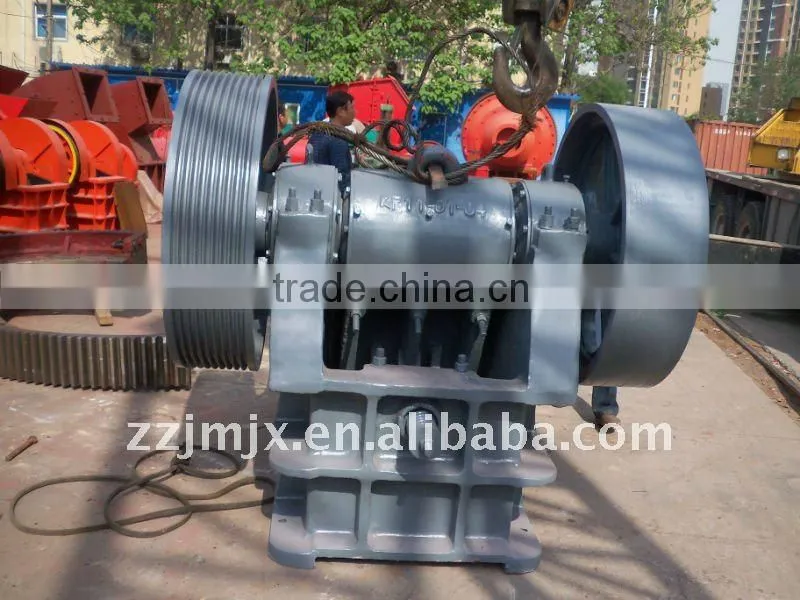

Metal Jaw Crusher
Features of Jaw crusher
1. crusher crushing the ores,rocks ,pressure below 320 MP
2. hard rocks of high erosion
3. used in mining,building,chemical
4. crusher with Less machine stop time
5. Low cost
6. Long service life
7. Primary crusher, simple structure
8. Strong construction
9. High crushing ratio;
10. Easy maintenance;
11. Stable performance;
12. Even final products.
Jaw crusher working principle:
The jaw crusher squeezes rock between two surfaces, one of which opens and closes like a jaw. Rock enters the jaw crusher from the top. Pieces of rock that is larger than the opening at the bottom of the jaw lodge between the two metal plates of the jaw. The opening and closing action of the movable jaw against the fixed jaw continues to reduce the size of lodged pieces of rock until the pieces are small enough to fall through the opening at the bottom of the jaw. It has a very powerful motion.
Jaw crusher application
Jaw crushers are widely used for mining, smelting, building materials, road and railway construction, irrigation works, and materials with compression strength no more than 320MPa.

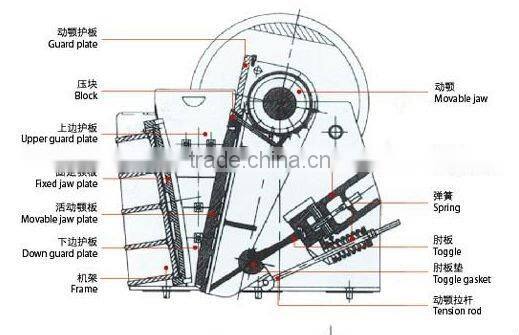

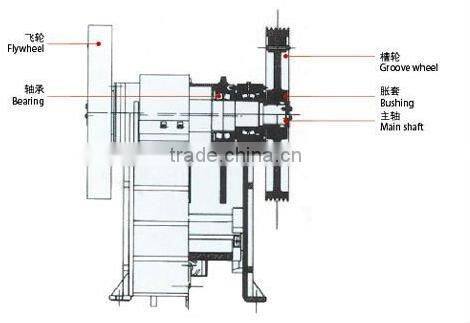

The Structure of Jaw Crusher:
Jaw crusher technical parameters
|
Model
|
Max feed size (mm) |
Discharge Size(mm) |
Capacity |
Power (KW) |
mainshaft Speed(r/min) |
Weight (T) |
|
PEF150×250 |
125 |
10-40 |
1-3 |
Y2-132S-4 |
5.5 |
285 |
0.7 |
PEF200×300 |
180 |
20-70 |
2-8 |
Y2-160M-4 |
11 |
285 |
0.8 |
PEF-250×400 |
210 |
20-80 |
4-14 |
Y2-180L-6 |
15 |
310 |
2.8 |
PEF-400×600 |
350 |
40-160 |
20-120 |
Y2-250M-8 |
30 |
300 |
6.5 |
PEF500×750 |
425 |
50-100 |
40-110 |
Y2-280M-6 |
55 |
275 |
11.3 |
PEF-600×900 |
480 |
72-200 |
56-192 |
JR117-8 |
75 |
255 |
17.6 |
PEF750×1060 |
630 |
80-200 |
100-250 |
JR117-8 |
90 |
250 |
29 |
PEF900×1200 |
750 |
95-200 |
120-280 |
JR117-8 |
110 |
250 |
50 |
PEF1000×1200 |
850 |
110-260 |
180-340 |
JR117-8 |
130 |
200 |
53 |
PEF1200×1500 |
1020 |
150-300 |
300-500 |
JR117-8 |
160 |
180 |
101 |
PEX-150×750 |
120 |
8-25 |
10-40 |
Y2-180L-6 |
15 |
300 |
3.5 |
PEX-250×750 |
210 |
12-35 |
15-50 |
Y2-280S-8 |
30 |
300 |
5.5 |
PEX-250×1000 |
210 |
12-50 |
30-95 |
Y2-250M-8 |
37 |
300 |
6.5 |
PEX-250×1200 |
210 |
12-50 |
40-100 |
J2-280M-8 |
37 |
300 |
8.8 |
12-70 | |||||||
PEX-350×750 |
300 |
15-50 |
20-50 |
Y2-315M-8 |
30 |
250 |
6.5 |
PEX-300×1300 |
250 |
20-90 |
45-130 |
Y225M-6 |
75 |
250 |
11 |
Metal Jaw Crusher
For further details, please feel free to contact
Tracy Xie
Zhengzhou Jinma Mining Machinery Co., Ltd.
Tel: 86-371-67511065 Fax: 0086-371-67512579
Mobile:86-150-382-13376
