Home > Products > Crusher, Sand Making Machine > PE series Calcite Crusher

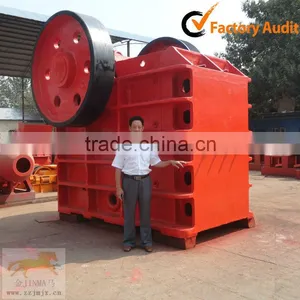

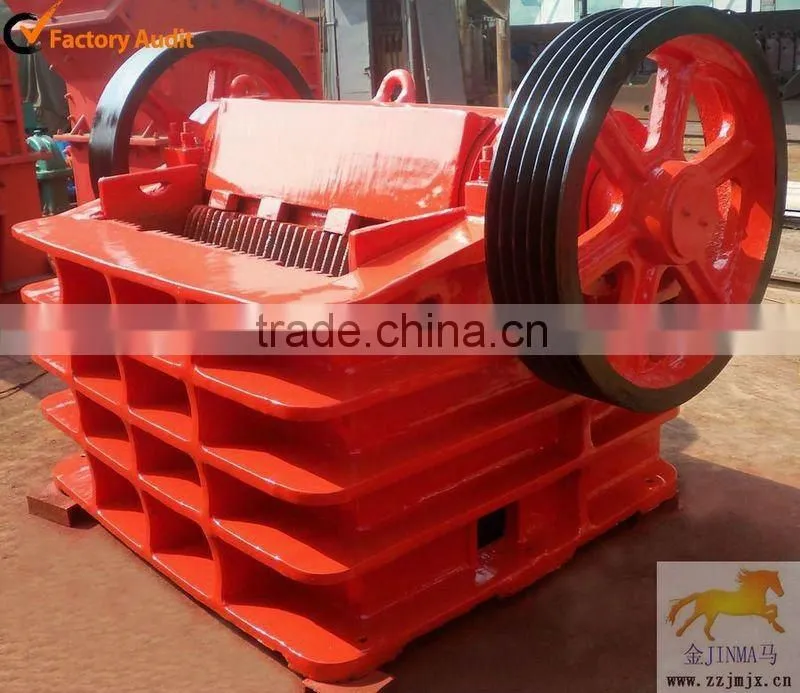

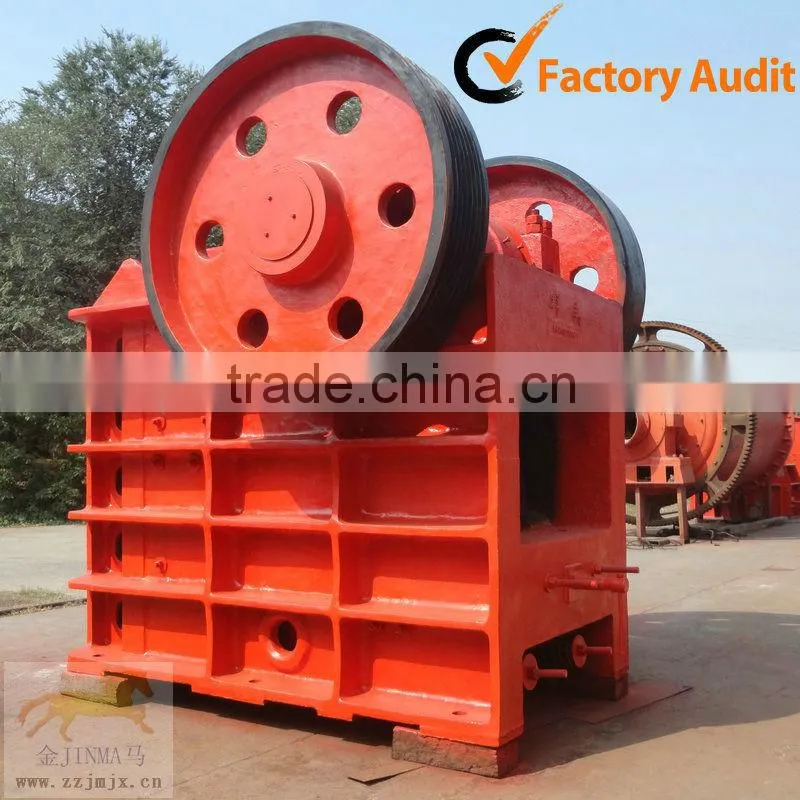

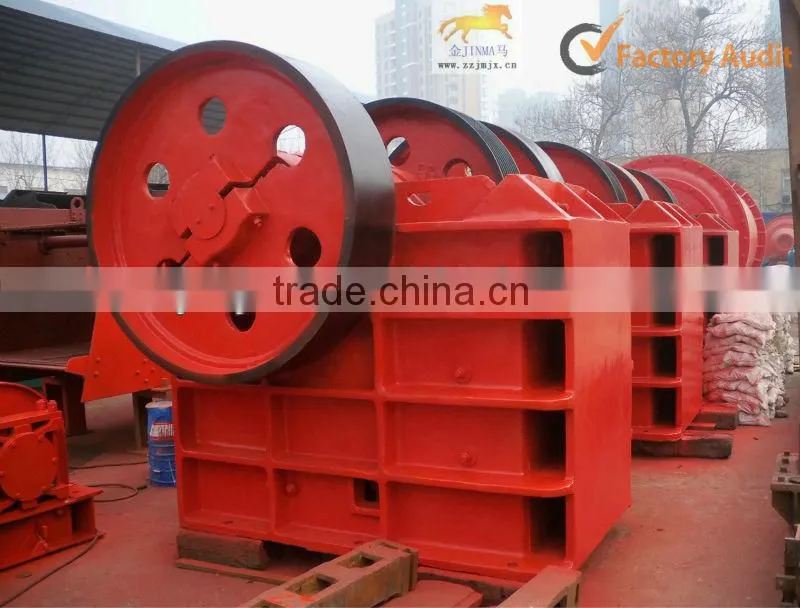

PE series Calcite Crusher
- 50 Set / Sets per Month
- Tianjin/Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Type | Other, Calcite Crusher | |
Motor Type | AC Motor | Capacity(t/h) | 1-500 TPH | |
Place of Origin | Henan, China | Brand Name | Jinma | |
Model Number | PEX, PEF | Warranty | 1 year (wearing parts excluded) | |
After-sales Service Provided | Engineers available to service machinery overseas |
Standard packing, Seaworthy packing, or as required
Product Description
Specifications
Calcite Jaw Crusher35 yeras experience manufacturer
Even discharge granularity
Economical operation
Wearproof parts
Calcite Jaw Crusher Features:
1. Crushing cavity depth and no dead zone, improving the feeding capacity and output
2. the jaw crusher has big crushing ratio, products of granularity
3. Gasket type discharging mouth adjusting devices, reliable convenient, wide adjustment, increased the equipment's flexibility
4. Lubrication system is safe, reliable and convenient maintenance, small amount in
maintenance
5. The palate broken simple structure, reliable working, operation cost is low
6. The saving-energy equipment: single energy-saving 15% ~ 30%, more than doubling system energy saving
7. The jaw crusher discharging mouth adjusting scope is big, can satisfy to different user’s requirements
Stone jaw crusher, crusher technical parameters:
Model
| Max feed size (mm) | Discharge Size(mm) | Capacity | Power (KW) | mainshaft Speed(r/min) | Weight (T) | |
PEF150×250 | 125 | 10-40 | 1-3 | Y2-132S-4 | 5.5 | 285 | 0.7 |
PEF200×300 | 180 | 20-70 | 2-8 | Y2-160M-4 | 11 | 285 | 0.8 |
PEF-250×400 | 210 | 20-80 | 4-14 | Y2-180L-6 | 15 | 310 | 2.8 |
PEF-400×600 | 350 | 40-160 | 20-120 | Y2-250M-8 | 30 | 300 | 6.5 |
PEF500×750 | 425 | 50-100 | 40-110 | Y2-280M-6 | 55 | 275 | 11.3 |
PEF-600×900 | 480 | 72-200 | 56-192 | JR117-8 | 75 | 255 | 17.6 |
PEF750×1060 | 630 | 80-200 | 100-250 | JR117-8 | 90 | 250 | 29 |
PEF900×1200 | 750 | 95-200 | 120-280 | JR117-8 | 110 | 250 | 50 |
PEF1000×1200 | 850 | 110-260 | 180-340 | JR117-8 | 130 | 200 | 53 |
PEF1200×1500 | 1020 | 150-300 | 300-500 | JR117-8 | 160 | 180 | 101 |
PEX-150×750 | 120 | 8-25 | 10-40 | Y2-180L-6 | 15 | 300 | 3.5 |
PEX-250×750 | 210 | 12-35 | 15-50 | Y2-280S-8 | 30 | 300 | 5.5 |
PEX-250×1000 | 210 | 12-50 | 30-95 | Y2-250M-8 | 37 | 300 | 6.5 |
PEX-250×1200 | 210 | 12-50 | 40-100 | J2-280M-8 | 37 | 300 | 8.8 |
12-70 | |||||||
PEX-350×750 | 300 | 15-50 | 20-50 | Y2-315M-8 | 30 | 250 | 6.5 |
PEX-300×1300 | 250 | 20-90 | 45-130 | Y225M-6 | 75 | 250 | 11 |
For further details, please feel free to contact
Tel: 86-371-67511065 Fax: 0086-371-67512579
Mobile:86-150-382-13376
Website:
Company Profile

Zhengzhou Jinma Mining Machinery Co., Ltd. was established in 1976 subordinated to China CMIIC Engineering & Construction Corporation (CMIIC), the company specializes in manufacturing large and medium-size crushers, sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines. Located in No. 8 Dianchang Road, Zhengzhou and covers an area of 3500 square meters, the company's total annual sales reached one hundred and fifty million RMB, with annual export sales about six million USD. Crushing equipments includes jaw crusher, impact crusher, PCZ single-stage hammer crusher, DPC single-stage fine crusher, PXJ fine crusher (Third generation sand making machine), PC hammer crusher, PCH ring hammer crusher, PCL vertical composite crusher, and roller crusher. These equipments are applicable to construction, metallurgy, building material, mineral processing, coal mine, etc. Mineral processing equipments includes MQG ball mill, MQS ball mill, GZMY energy-saving ball mill, MQGZ super energy-saving ball mill, MQGT super energy-saving ball mill, MQGMC super energy-saving ball mill, spiral classifier, flotation machines, magnetic separator, rotary dryer, etc. All the equipments are applicable to the beneficiation of iron, copper, gold, silver, lead, zinc, tungsten, molybdenum, manganese and other non-ferrous concentrating. The company has passed ISO9001: 2008 quality management system, CE certification, SGS and BUREAU VERITAS factory audit. It has independent Imp. & Exp. right, R&D center, production base, QC, Marketing and after-sales service department. While expanding domestic market constantly, the products are exported to over 70 countries like Chile, Peru, Costa Rica, USA, Vietnam, Indonesia, Malaysia, India, Philippines, Pakistan, Iran, Russia, Kazakhstan, Azerbaijan, Turkey, North Korea, South Africa, Tanzania, Ghana, etc. With the goal of "The excellence, the better" and "Satisfaction from customers" as the eternal pursuit, we sincerely welcome clients from all over the world to come for a visit, and establish long term win-win cooperation.
