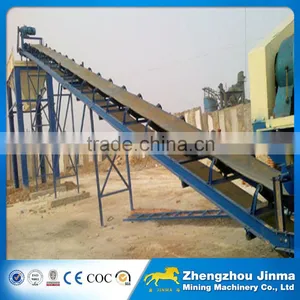

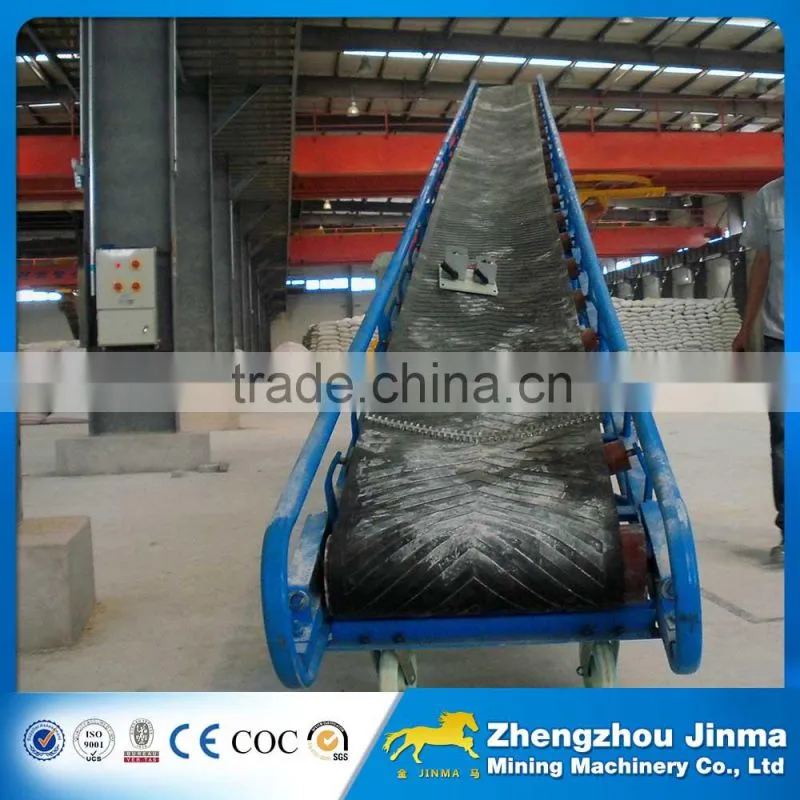

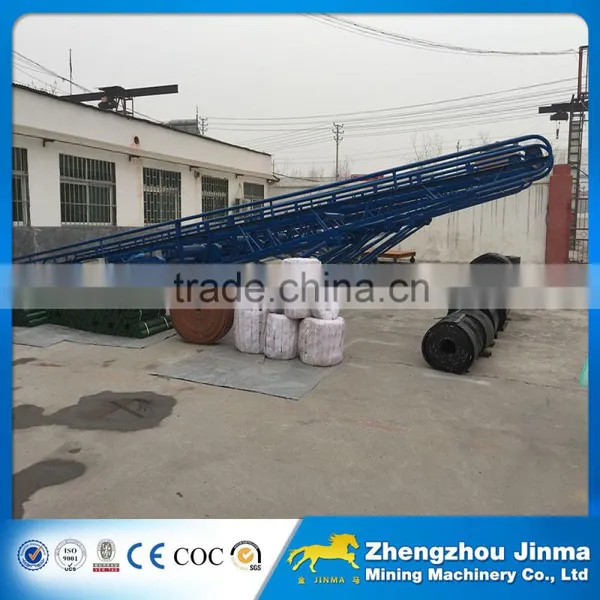

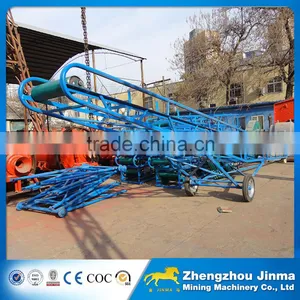

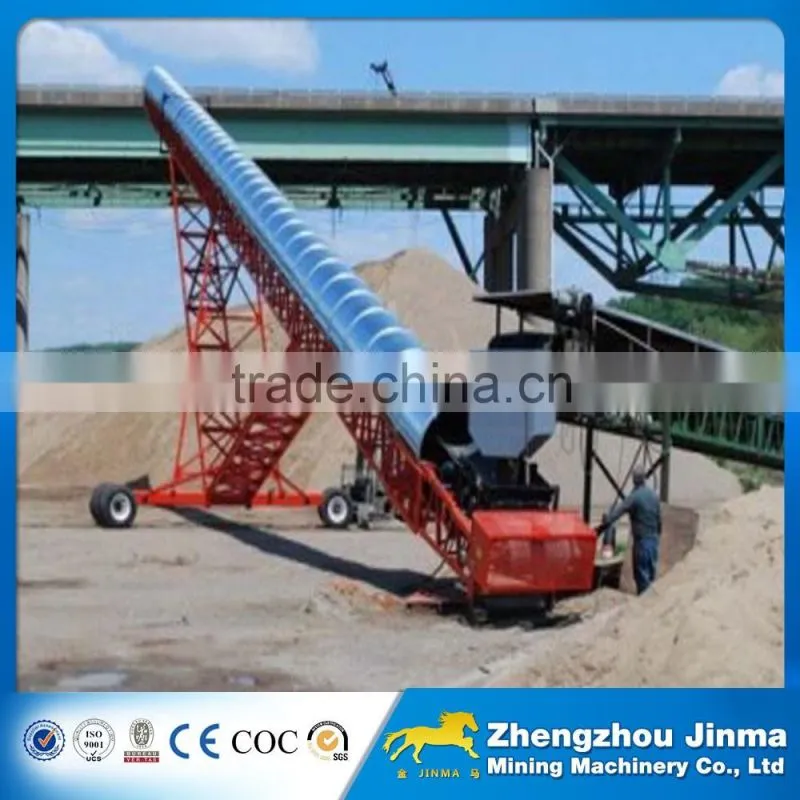

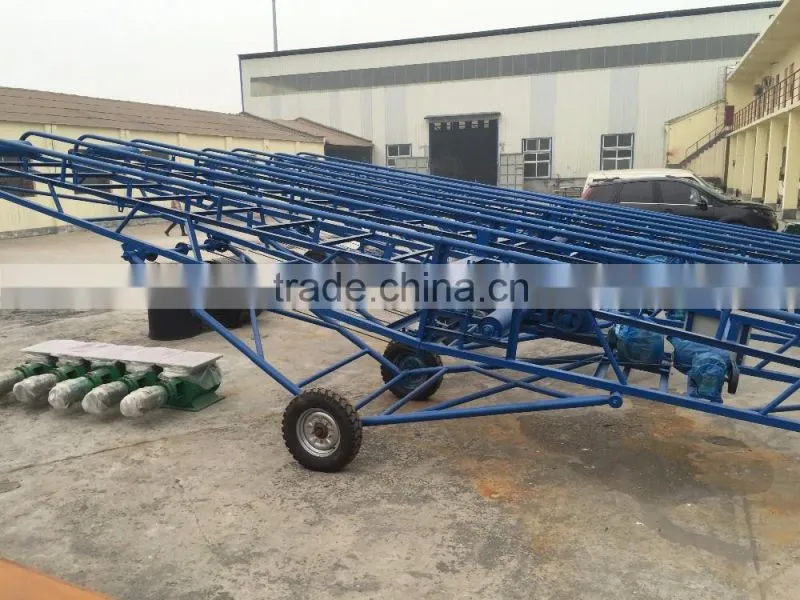

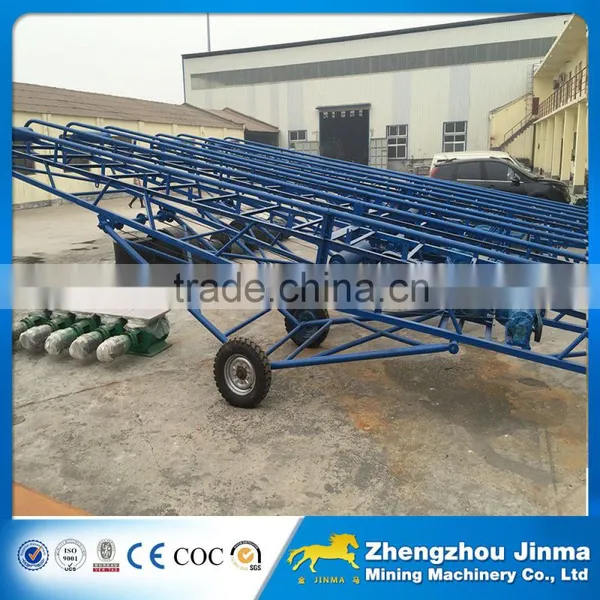

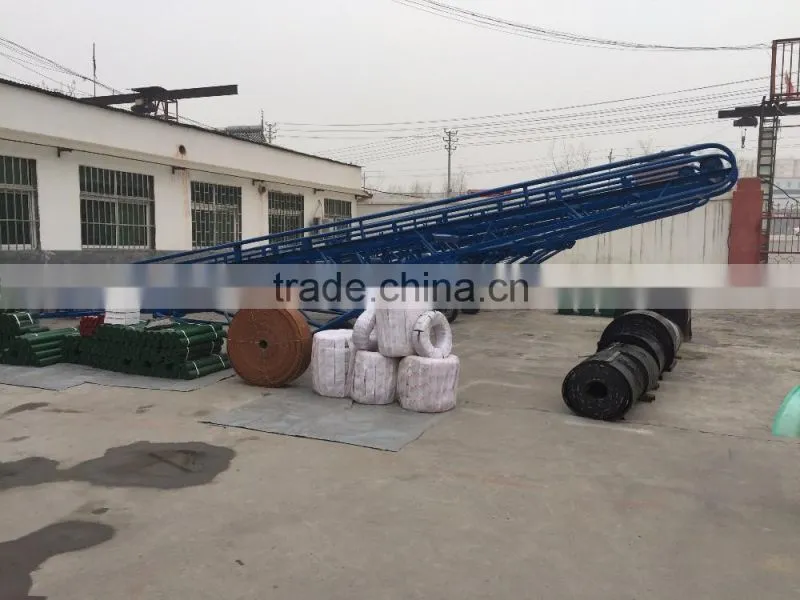

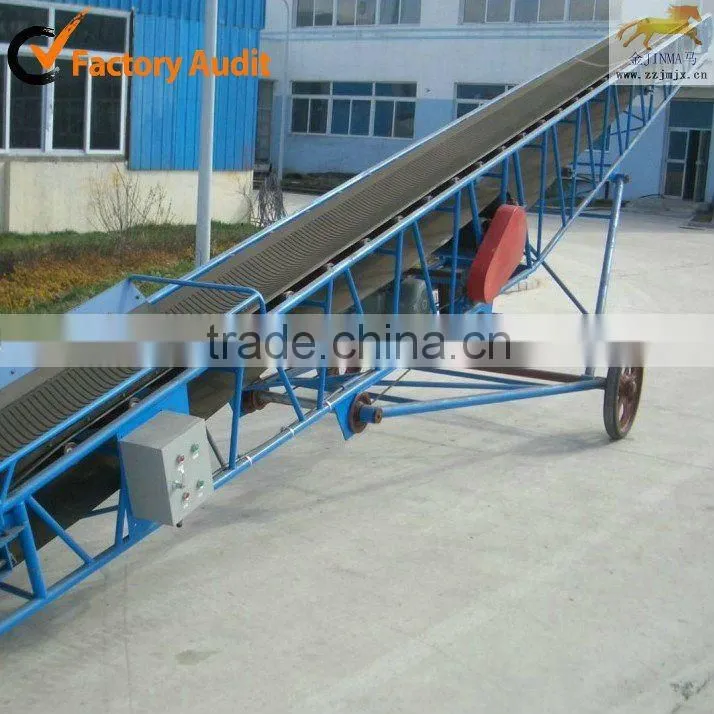

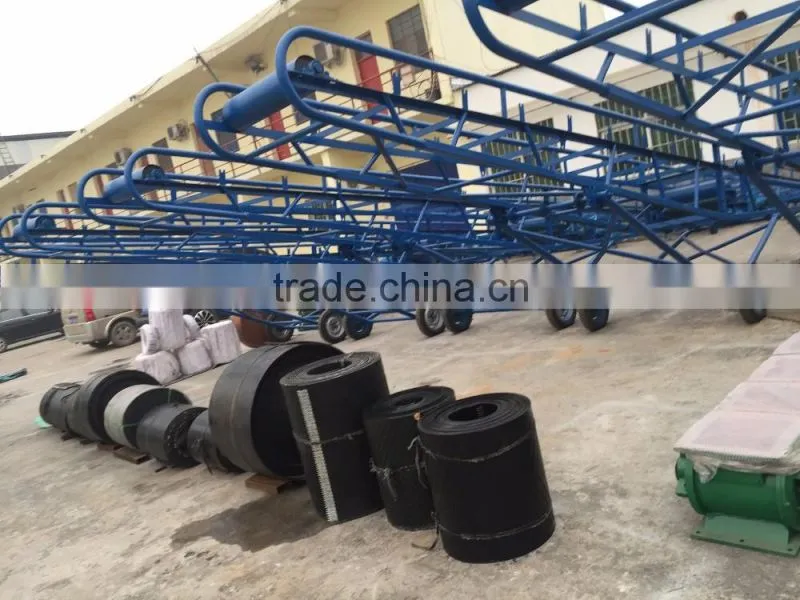

High Quality Small Rubber Belt Conveyor For Hot sale
Applicable of the belt conveyor:
1.Can be used for horizontal or tilt transportation and it’s very convenient to use , widely used in various industrial enterprises such as : the underground workings of the mine , mine ground transportation system.
According to the transport process requirements , not only can use a single conveyor but also can be composed of multiple components or other equipment to form horizontal or inclined conveyor system to meet needs of different types of layout .
2.Belt conveyor is widely used in metallurgy, coal, transport , water, electricity, chemical and other sectors , because it has a LARGE capacity , simple structure, easy maintenance , low cost , versatility , etc.
3.The belt conveyor also can be used in building materials, electric power , light industry , food , ports , ships and other departments .
Instruction of the used conveyor belt:
The belt conveyor is a kind of friction drive transport material continuously machine . Mainly made of the rack , conveyor belts , idlers , rollers, and gear .
It can be in a certain line , the feed point from the initial to the final discharge point formed a process of delivery of materials . It not only can deliver granular material but also can deliver pieces of goods .
it can be combined with the process in the industrial production line and form the rhythmic flow transport line .
Technical data:
| Belt width(mm) | transmission length (m) | power(kw) | transmission speed (m/s) | capacity(t/h) |
| 500 | 10-12 | 3 | 1.3-1.6 | 78-191 |
| 500 | 20-30 | 4-5.5 | 1.3-1.6 | 78-191 |
| 650 | 10-12 | 4 | 1.3-1.6 | 131-323 |
| 650 | 12-20 | 5.5 | 1.3-1.6 | 131-323 |
| 800 | 6-15 | 5.5 | 1.3-1.6 | 278-546 |
| 1000 | 20-40 | 15-30 | 1.3-2.0 | 435-853 |
Note:The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
Packaging Details:Standard packing, seaworthy packing or as required.
Usually packing the bare machine in standard container, motor & small parts in wooden case. Or depend on your required.
Delivery Detail: Shipped in 15 days after payment
1. Pre-sale service: We can provide you with project design, process design, suitable purchase program for your equipment.
2. Sale service: We will accompany you to visit our factory and all kinds of machinery and equipment if you come here, also show you construction plan and assist in the development process in detail.
3. After Sale service: We will send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.
