China Manufacture Grain Belt Conveyor Machine
Belt conveyro introduction
The fertilizer belt conveyor has the advantages of big conveying capacity, simple structure, convenient repair and standard parts, so it is widely used in the industries of mine, metallurgy and coal to convey loose materials and finished products. According to different technique requirements, the machine can convey material singly or be formed conveying system with other conveying equipments to meet different requirements of working line.
The working temperature is from -200C to +400C and the temperature of conveying material is under 500C

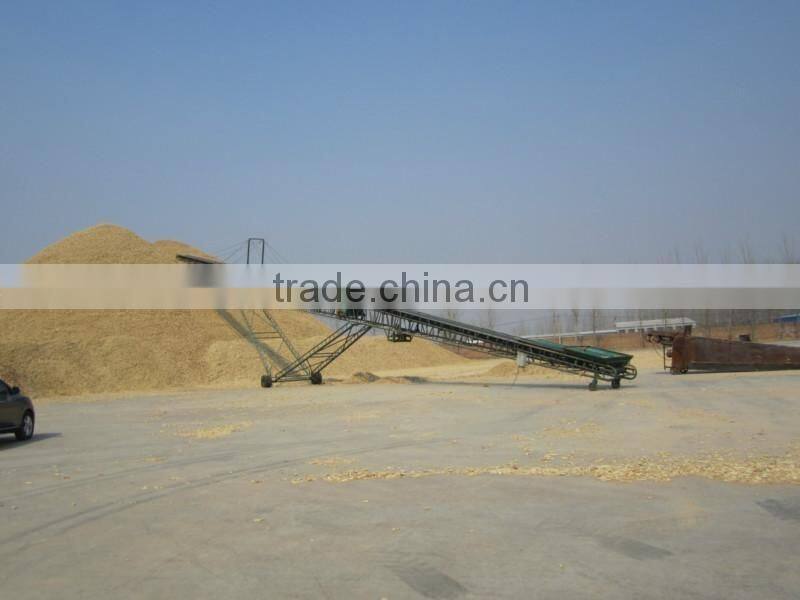

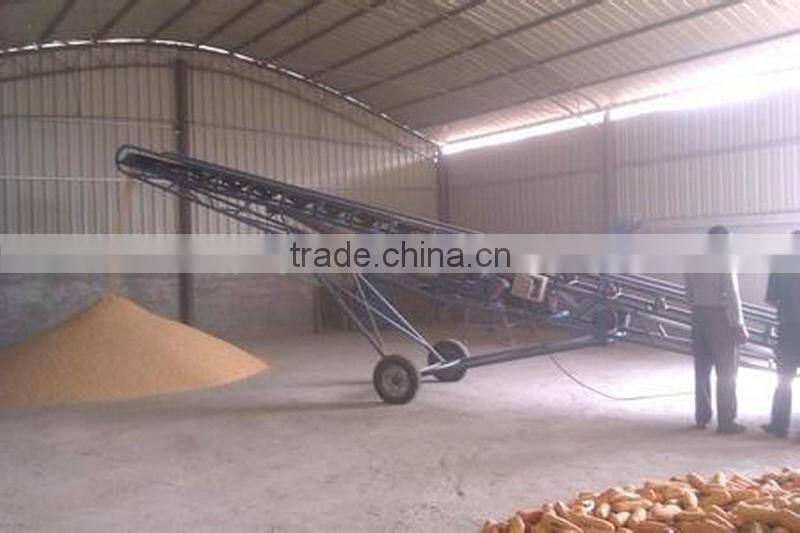

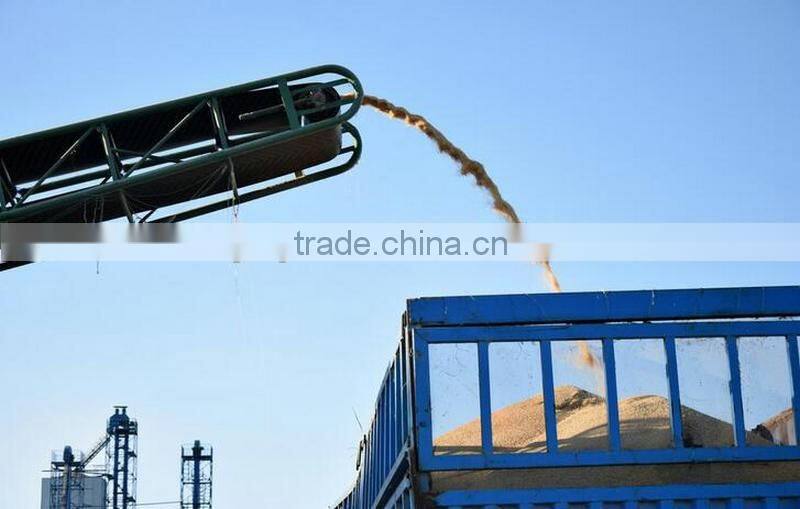

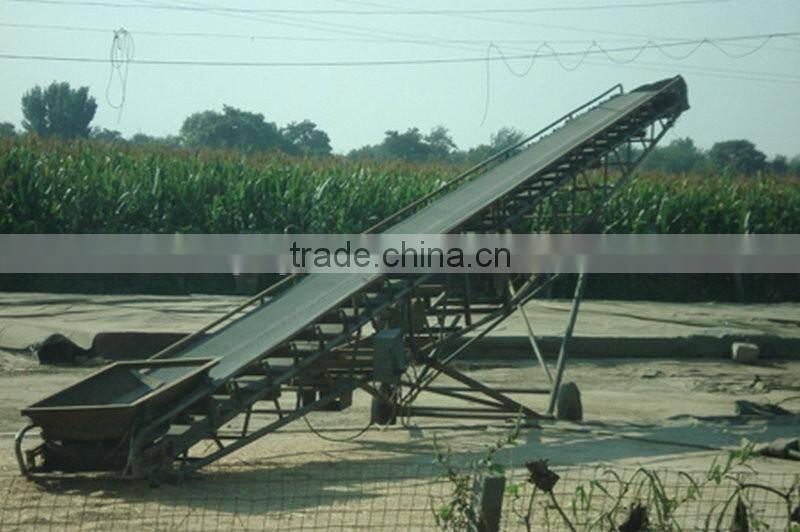

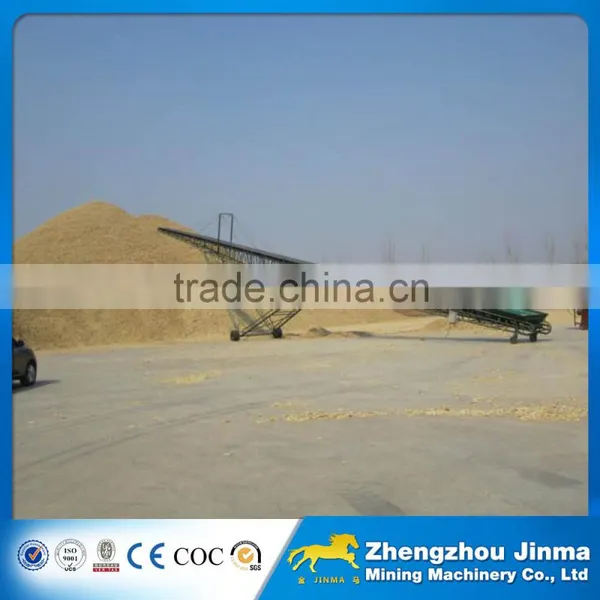

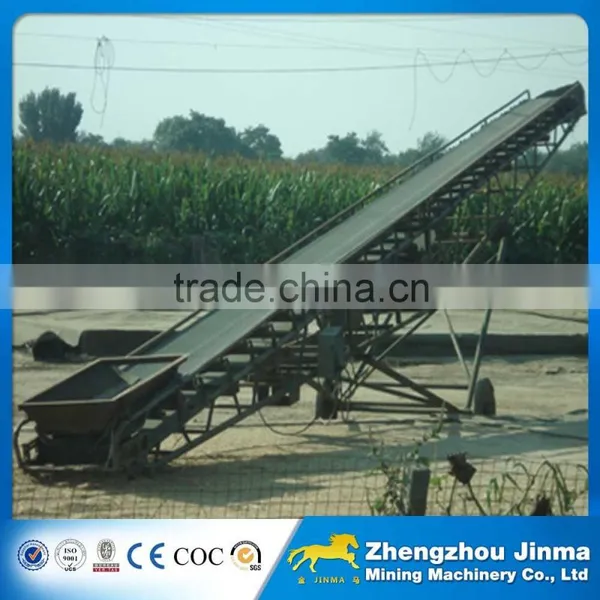

the grain belt conveyor produced by jinma
Equipment accessory
1. The fertilizer belt conveyor quantity is worked out by the following conditions: material density is between 1.0t/m3-1.6t/m3; conveyor obliquity is less than 18o and the material stockpile angle is 30o.
2. Density of material is less than 2.5t/m3.
3. The conveying length isnt restricted to the form; different length can be manufactured according to customers' demands.
Equipment application
The fertilizer belt conveyor consists of standard parts, which are advanced and simple in structure,easy to maintain. Our belt conveyor equipment is adaptable for stationaryand mobile crushing plants.They are widely used in mining, metallurgical and coal industry to transfer sandy or lump materials, or packaged materials.According to different transferring equipment, the transfer system can be oneindependently or multi-conveyors or combined with other transfer equipments.

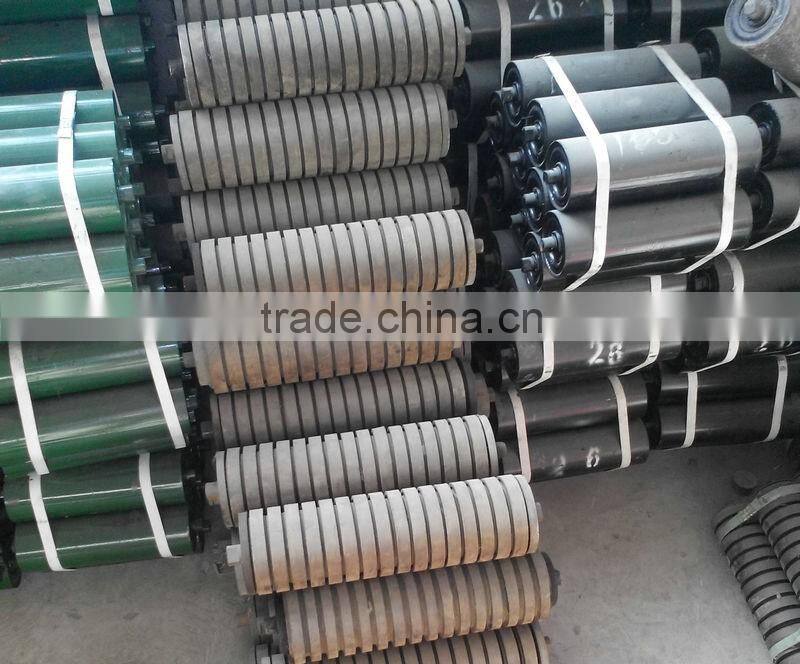

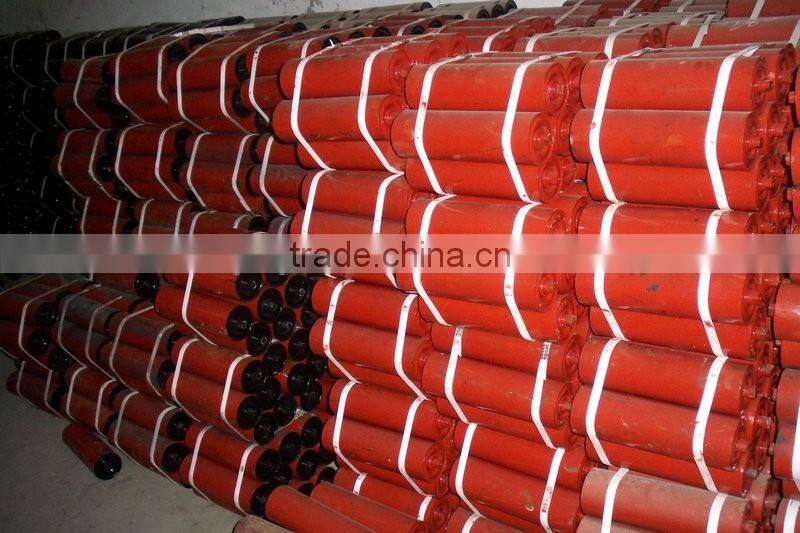

roller, standard parts

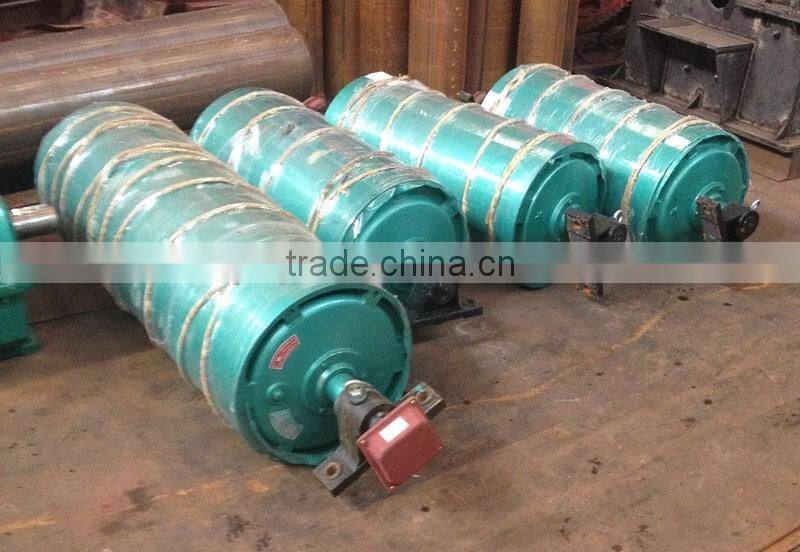

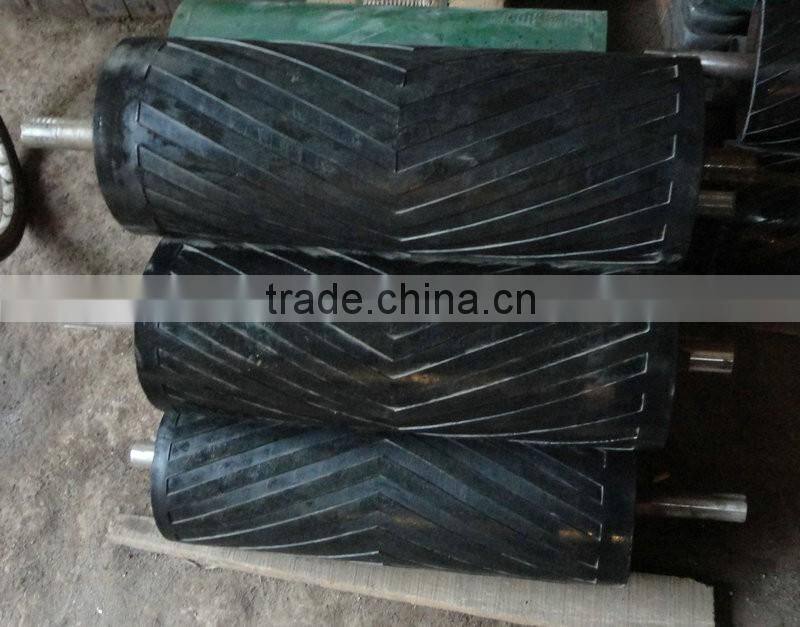

Driving drum:

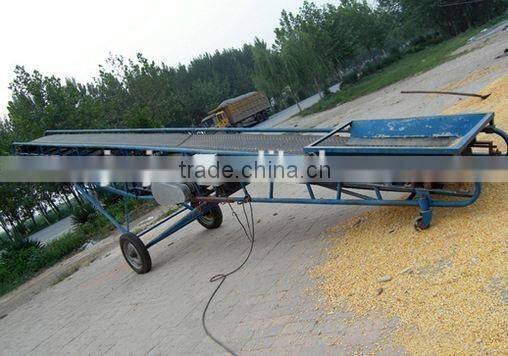

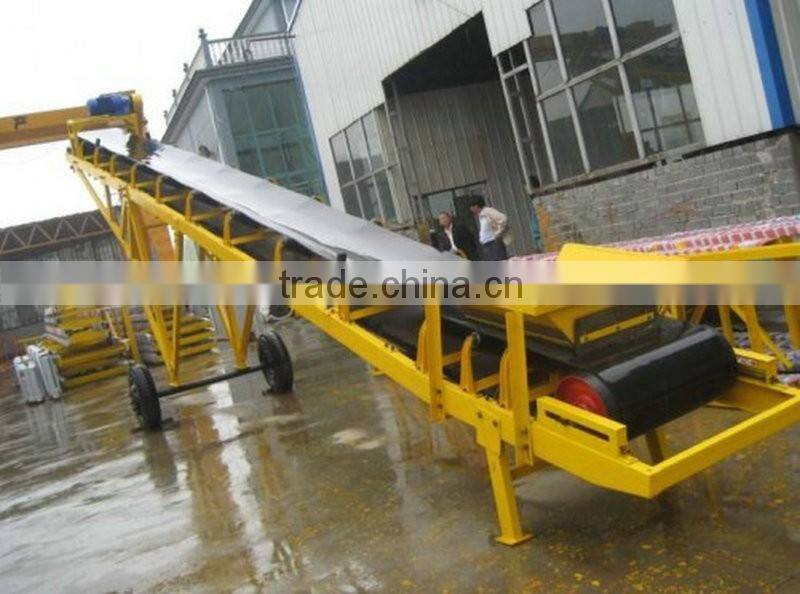

4.Specifications of mobile belt conveyor:
belt width (mm) | Transmission length(m) Power(kw) | Transmission speed (m/s) | Capacity (t/h) | ||
500 | ≤12 3 | 20-30 4-5.5 | 20-30 5.5-7.5 | 1.3-1.6 | 78-191 |
650 | ≤12 4 | 12-20 5.5 | 20-30 7.5-11 | 1.3-1.6 | 131-323 |
800 | ≤6 4 | 6-15 5.5 | 15-30 7.5-15 | 1.3-1.6 | 278-546 |
1000 | ≤10 5.5 | 10-20 7.5-11 | 20-40 11-12 | 1.3-2.0 | 435-853 |
1200 | ≤10 7.5 | 10-20 11 | 20-40 15-30 | 1.3-2.0 | 655-1284 |
1400 | ≤10 7.5-11 | 10-20 11-18.5 | 20-40 18.5-37 | 1.3-2.0 | 800-1950 |
1600 | ≤10 11 | 10-20 11-22 | 20-40 18.5-45 | 1.3-2.0 | 1200-2600 |
1800 | ≤10 15 | 10-20 15-30 | 20-40 22-55 | 1.3-3.15 | 1500-3500 |
2000 | ≤10 18.5 | 10-20 18.5-37 | 20-40 30-75 | 1.3-3.15 | 1800-4000 |
1>Zhengzhou Jinma Mining Machinery Co.,Ltd was established in 1976. Our company specializes in manufacturing large and medium-size crusher, sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines. Our company covers an area of 7000 square meters. Now, our annual export sales about six million USD. It has passed ISO9001:2008 quality management system, CE certification, SGS and BV factory audit.
2>Support & service from Zhengzhou Jinma Mining Machinery Co., Ltd
1.Jinma provide the design, process diagram and foundation drawings according to clients' request.
2.Clients are welcome to inspect the equipment when the equipment are ready to delivery.
3.Equipment will be delivered with English Manuals and technical drawings
4.Engineers available to service machinery overseas, to make the layout design, foundations, guide the installation, commissioning run test, training workers, etc.
5.The equipment ordered from jinma will be guaranteed within 2 years since the day of purchasing if the problem is due to the equipment’s quality. If there is big quality problem with the equipment, the seller will discuss with the buyer and offer proposals to solve the problems within 72 hours since the notice from buyer.
the certificate of our factory
1>.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
the clients visit our factory
1.How long is the delivery time of your belt conveyor?
The delivery time is within 30 working days. But when the project is very big and the customers have special requirement on the equipment, the delivery could be extended.
2.How long is the belt conveyor warranty period?
Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation are not included.
3.What’s the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide installation service, workers training service, etc.
4.Can you provide wearing parts?
We have two casting factories that specialize in produce wearing parts for our clients. If your equipment are not manufactured by our company, please provide us the wearing parts drawing.
Notes:Our company with the goal of "The excellent, the better" and "Satisfaction from customers" as the eternal pursuit, we sincerely welcome clients from all over the world to come for a visit, and establish long term win -win cooperation . Believe us and choose us.We will give you the most suitable price with full specification.
With more than 30 years of production experience, we can also supply:
Crushers: jaw crusher, hammer crusher, cone crusher, impact crusher, fine crusher, compound crusher, roll crusher ,etc.
Stone Production Line: vibrating feeder, crusher, vibrating screen, belt conveyor, sand washing machine.
Beneficiation Production Line: vibrating feeder, crusher, ball mill, classifier, magnetic separator, mixing tank, flotation machine, rotary dryer.
Other Equipments: chute feeder, swing feeder, linear screen, trommel screen, spiral chute, shaking table.
