Coal Mine Equipment Flat Rubber Belt Conveyor Machine
- 100 Set / Sets per Month
- Qingdao Tianjin Shanghai or as requested
- T/T L/C D/P D/A Credit Card PayPal
- China Professional Rubber Belt Conveyor Factory
- 10mm Thickness ttransportation Rubber Conveyor Belt
- Width 350mm to 1200mm Rubber Used Belt Conveyor For Sale
- Adjustable speed vegetable belt conveyor price Quality Choice
- widely used Soil Belt Conveyor
- Reliable operation food grain steel slat belt conveyor
Product Details
Condition: | New | Type: | Gravity Conveyor | Material: | Rubber |
Material Feature: | Fire Resistant | Structure: | Belt Conveyor | Load Capacity: | depend on model |
Place of Origin: | Henan, China | Brand Name: | Jinma | Model Number: | TD series belt conveyor |
Voltage: | 220-440V | Power(W): | 3-75kw | Dimension(L*W*H): | Depends on model |
Certification: | two years(wearing parts excluded) | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
standard container,bare machine and spare parts are packed in wooden cases.
Product Description
Advantages of flat rubber belt conveyor machine
The belt conveyors consist of standard parts, which are advanced and simple in structure, easy to maintain.
Belt conveyors are widely used in mining, metallurgical and coal industry to transfer sandy or lump materials,
or packaged materials. According to different transferring equipment, the transfersystem can be one
independently or multiconveyors or combined with other transfer equipments. The belt conveyor can be
installed horizontally or as lope to meet the needs of different transfer lines .
Accessory of flat rubber belt conveyor machine
1. The conveying quantity is worked out by the following conditions: material density is
between 1.0t/m3-1.6t/m3; conveyor obliquity is less than 18° and the material stockpile angle is 30°.
2. Density of material is less than 2.5t/m³.
3. The conveying length isn’t restricted to the form; different length can be manufactured according to
customers' demands.
Features of flat rubber belt conveyor machine
The belt conveyor manufactured by our company has the advantages of big conveying capacity, simple
structure, convenient repair and standard parts, so it is widely used in the industries of mine, metallurgy and
coal to convey loose materials and finished products. According to different technique requirements, the
machine can convey material singly or be formed conveying system with other conveying equipments to meet different requirements of working line.
The working temperature is from -200C to +400C and the temperature of conveying material is under 500C.
Flat rubber belt conveyor machine technical parameters
Belt width (mm) | Transmission length(m) Power(kw) | Transmission speed (m/s) | Capacity (t/h) | ||
500 | ≤12 3 | 20-30 4-5.5 | 20-30 5.5-7.5 | 1.3-1.6 | 78-191 |
650 | ≤12 4 | 12-20 5.5 | 20-30 7.5-11 | 1.3-1.6 | 131-323 |
800 | ≤6 4 | 6-15 5.5 | 15-30 7.5-15 | 1.3-1.6 | 278-546 |
1000 | ≤10 5.5 | 10-20 7.5-11 | 20-40 11-12 | 1.3-2.0 | 435-853 |
1200 | ≤10 7.5 | 10-20 11 | 20-40 15-30 | 1.3-2.0 | 655-1284 |
1400 | ≤10 7.5-11 | 10-20 11-18.5 | 20-40 18.5-37 | 1.3-2.0 | 800-1950 |
1600 | ≤10 11 | 10-20 11-22 | 20-40 18.5-45 | 1.3-2.0 | 1200-2600 |
1800 | ≤10 15 | 10-20 15-30 | 20-40 22-55 | 1.3-3.15 | 1500-3500 |
2000 | ≤10 18.5 | 10-20 18.5-37 | 20-40 30-75 | 1.3-3.15 | 1800-4000 |
Working principle of flat rubber belt conveyor machine
it consists of frame, conveyor belt, belt rollers, tension device, transmission device and the like. Body is connected by superior steel plate, which forms rack by former and back landing legs, and plane has certain inclined angle. Rack is equipped with belt roller, carrier roller and the like, which drives and supports conveyor belt. There are two ways of driving: gear motor drive and electric roller drive.
The different width rubber belt

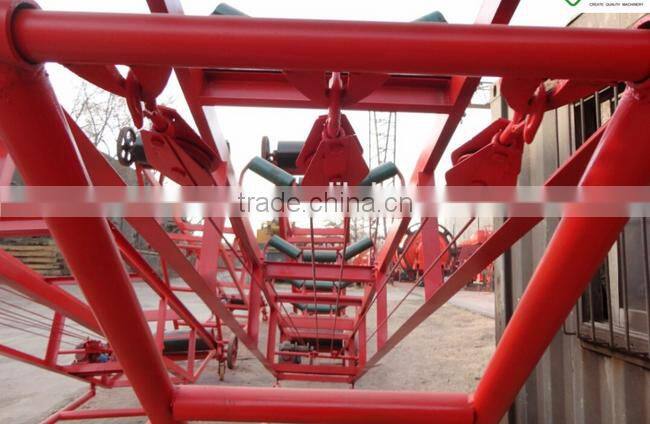

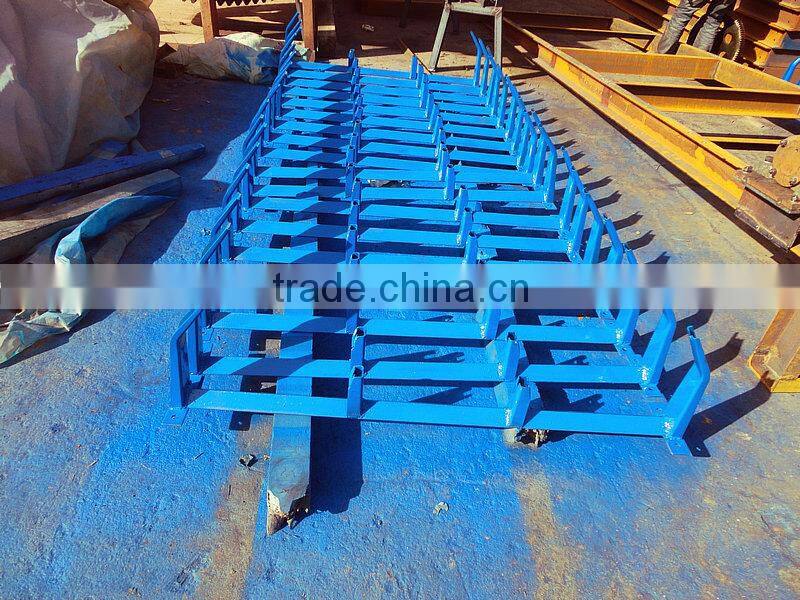

The bracket of belt conveyor
The different length conveyor roller

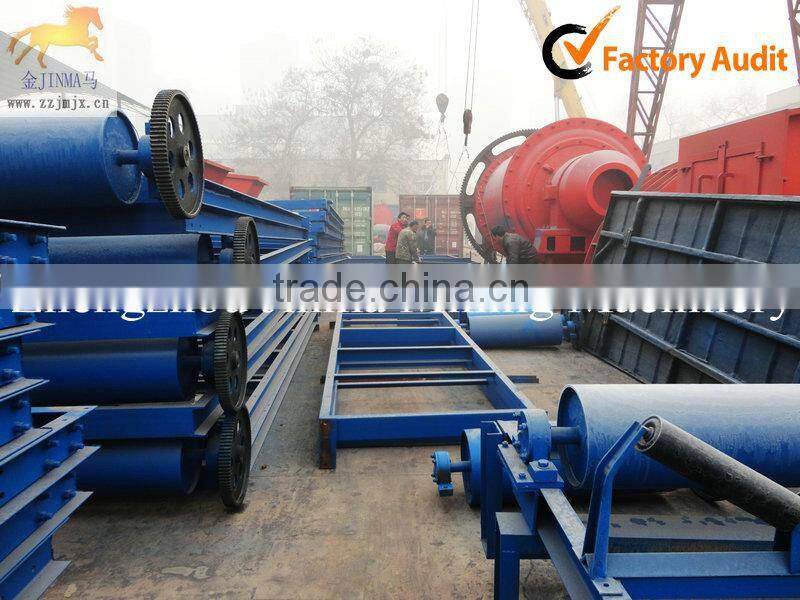

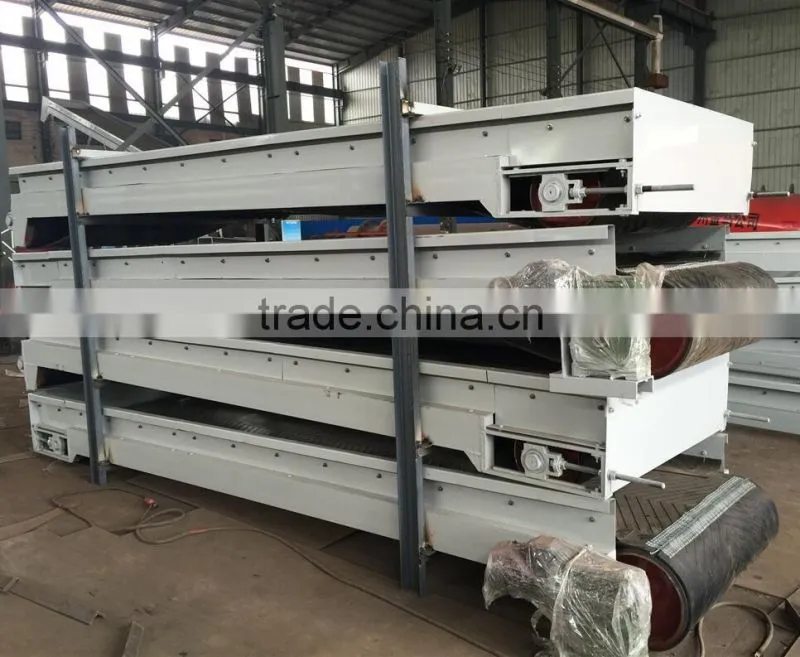

The channel frame without color of belt conveyor

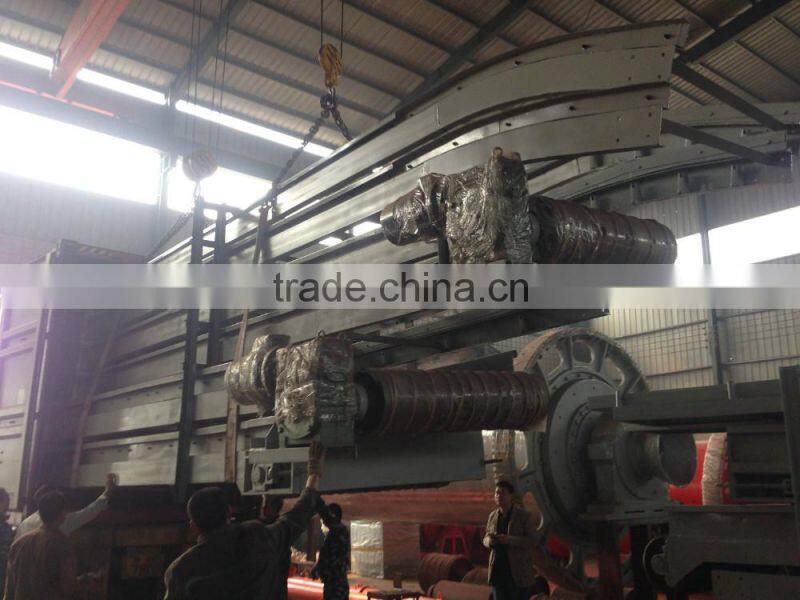

The delivery of our belt conveyor

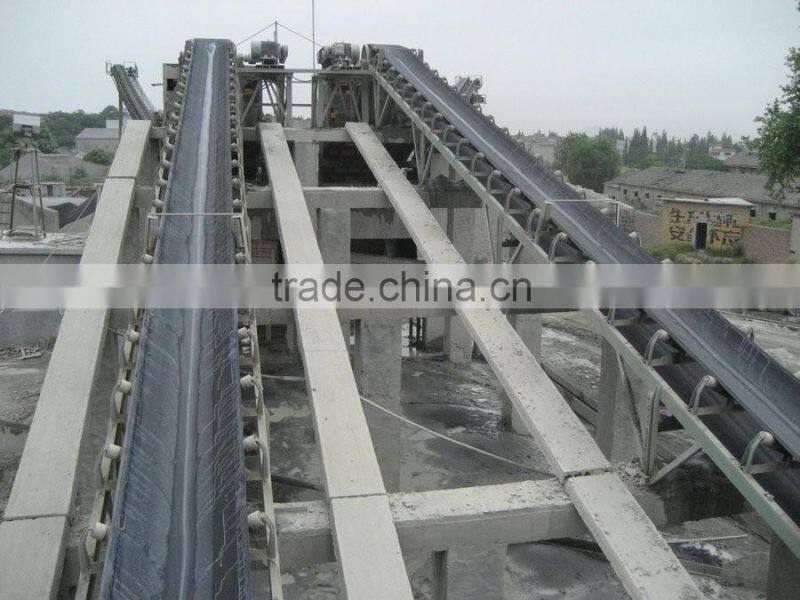

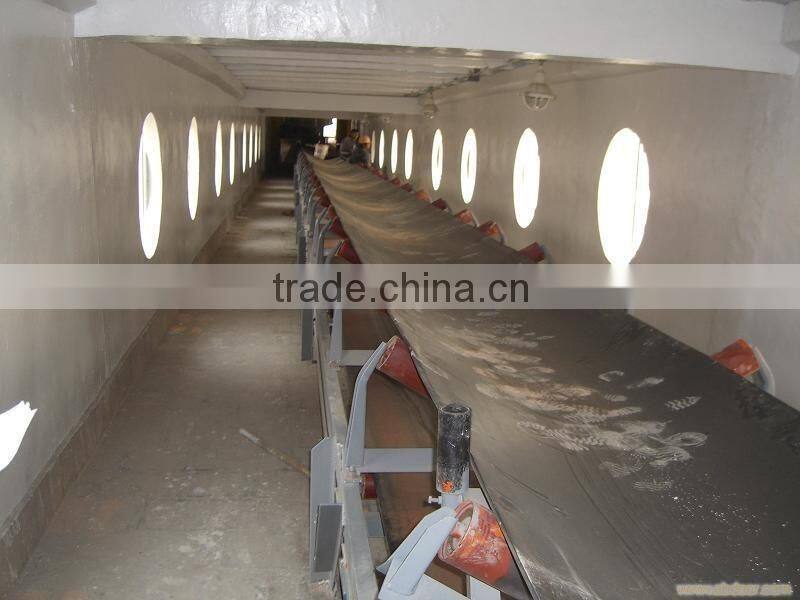

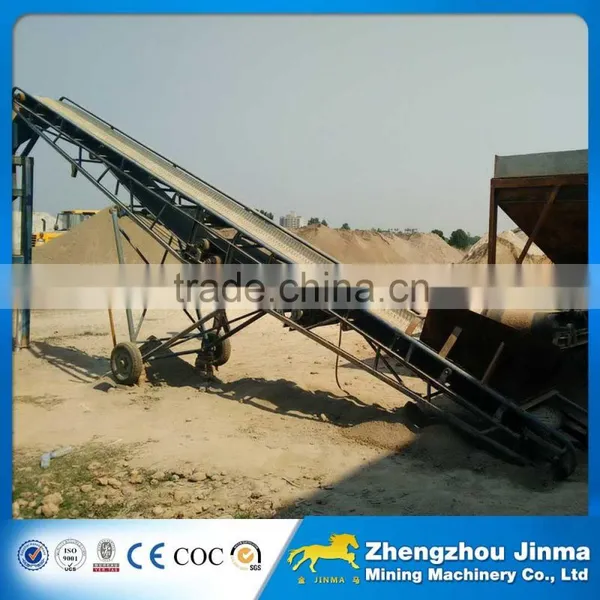

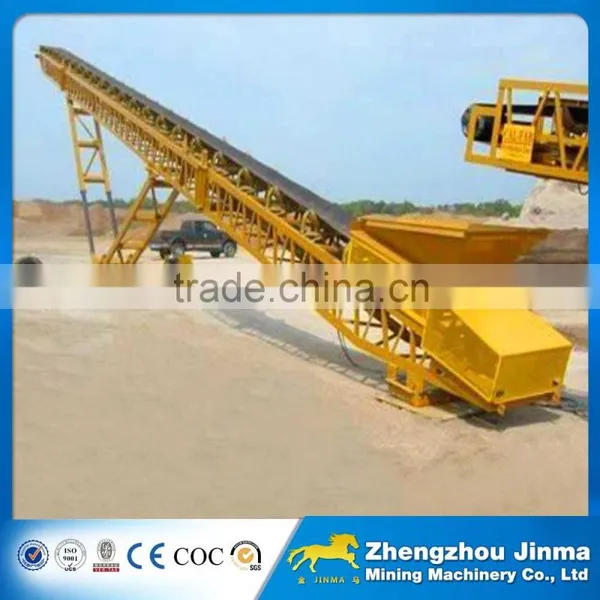

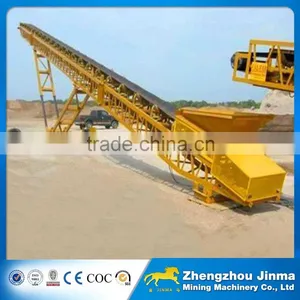

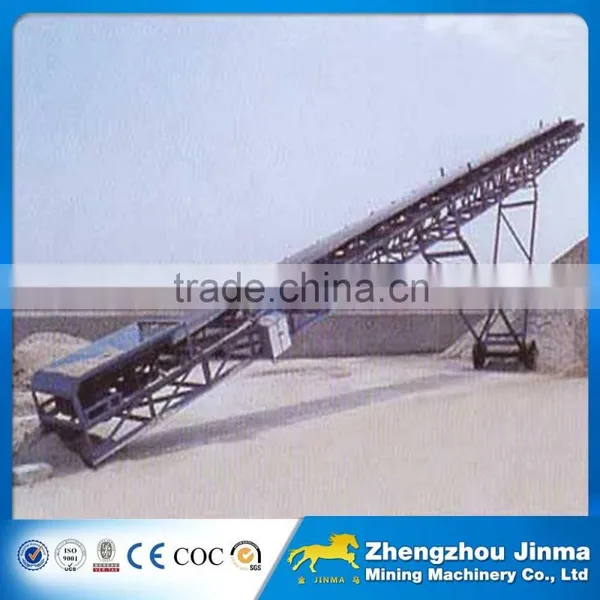

The working sites of heavy duty belt conveyor
The adjusted device to adjust the height

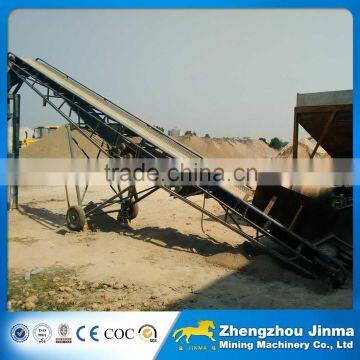

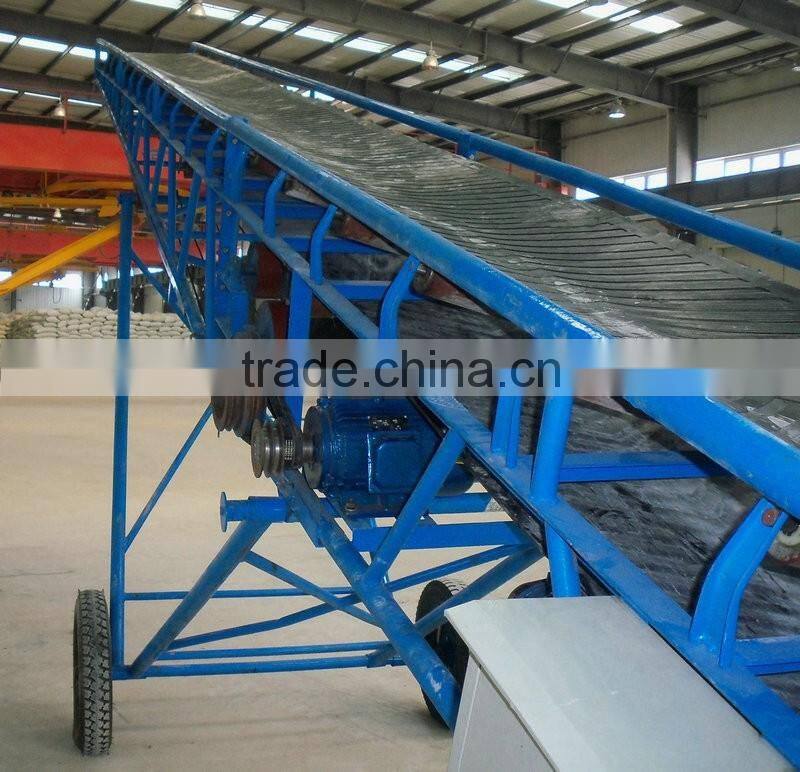

The mobile belt conveyor made by Jinma mining machinery
Zhengzhou Jinma mining machinery
Company development:Established in 1976 .
Company tenet: Clients' interests first, quality first, after-sales service first
Company spirit:Founding Integrity, Innovation Forever
Company philosophy: Jinma makes employees as fundamental, as quality to development, improve benefit
by management, with innovation to develop market, in good faith to famous brand and use good service to
make development.
Company strategy: Advanced, scientific, novelty and practicability.
Company goal:We manufacture lean products, To provide higher quality products to customers
more high-quality service.
For the more details of machine and future cooperation. Pls contact us if you feel free.
we sincerely welcome clients from all over the world to come for a visit, and establish long term win -win cooperation.
Zhengzhou Jinma Mining Machinery Co.,Ltd
Name: Cathy Chen
Tel: +86-371-67511065
Fax: +86-371-85098580
Mobile :+86-139-3906-0840
Skype: cherish2228617703
Company Profile
Zhengzhou Jinma Mining Machinery Co., Ltd. was established in 1976 subordinated to China CMIIC Engineering & Construction Corporation (CMIIC), the company specializes in manufacturing large and medium-size crushers, sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines. Located in No. 8 Dianchang Road, Zhengzhou and covers an area of 3500 square meters, the company's total annual sales reached one hundred and fifty million RMB, with annual export sales about six million USD.
Crushing equipments includes jaw crusher, impact crusher, PCZ single-stage hammer crusher, DPC single-stage fine crusher, PXJ fine crusher (Third generation sand making machine), PC hammer crusher, PCH ring hammer crusher, PCL vertical composite crusher, and roller crusher. These equipments are applicable to construction, metallurgy, building material, mineral processing, coal mine, etc.
Mineral processing equipments includes MQG ball mill, MQS ball mill, GZMY energy-saving ball mill, MQGZ super energy-saving ball mill, MQGT super energy-saving ball mill, MQGMC super energy-saving ball mill, spiral classifier, flotation machines, magnetic separator, rotary dryer, etc. All the equipments are applicable to the beneficiation of iron, copper, gold, silver, lead, zinc, tungsten, molybdenum, manganese and other non-ferrous concentrating.
The company has passed ISO9001: 2008 quality management system, CE certification, SGS and BUREAU VERITAS factory audit. It has independent Imp. & Exp. right, R&D center, production base, QC, Marketing and after-sales service department.
While expanding domestic market constantly, the products are exported to over 70 countries like Chile, Peru, Costa Rica, USA, Vietnam, Indonesia, Malaysia, India, Philippines, Pakistan, Iran, Russia, Kazakhstan, Azerbaijan, Turkey, North Korea, South Africa, Tanzania, Ghana, etc.
With the goal of "The excellence, the better" and "Satisfaction from customers" as the eternal pursuit, we sincerely welcome clients from all over the world to come for a visit, and establish long term win-win cooperation.
