Equipments Producing Rubber Belt Conveyor Price
Rubber Belt Conveyor Introduction
The rubber belt conveyor from China manufacturer has the advantages of big conveying capacity, simple structure, convenient repair and standard parts, so it is widely used in the industries of mine, metallurgy and coal to convey loose materials and finished products. According to different technique requirements, the machine can convey material singly or be formed conveying system with other conveying equipments to meet different requirements of working line.
The working temperature is from -200C to +400C and the temperature of conveying material is under 500C.
Features of Rubber Belt Conveyor Machine:
- Large capacity, sample structure, easy maintenance, low cost and better compatibility.
- It can be used alone or be packaged with other conveying equipments into horizontal or inclined handling system.
- The form of assembles are determined by user requirements,tranmission can be electri c drum can also be used with a drive rack drive.
Structure of Rubber Belt Conveyor Machine:
Belt conveyor system mainly consists of frame, conveying belt, belt drum, tension devise, and gearing. The body is connected by high-quality steel plate and formed by high-low discrepancy of front and rear legs. The body surface shows a certain angle of incline. The frame, outfit with belt drum and carrier roller, is used for driving and supporting the conveying belt. The belt conveyor is driven by reducing motor or motorized pulley.
Characteristics of Rubber Belt Conveyor Machine:
The working temperature is from -200C to +400C and the temperature of conveying material is under 500C.
Accessory:
- The conveying quantity is worked out by the following conditions: material density is between 1.0t/m3-1.6t/m3; conveyor obliquity is less than 18o and the material stockpile angle is 30o.
- Density of material is less than 2.5t/m3.
- The conveying length isnt restricted to the form; different length can be manufactured according to customers' demands.
Specifications of TD series Belt Conveyor System:
|
belt width (mm) |
Transmission length(m) Power(kw) |
Transmission speed (m/s) |
Capacity (t/h) |
||
500 |
≤12 3 |
20-30 4-5.5 |
20-30 5.5-7.5 |
1.3-1.6 |
78-191 |
650 |
≤12 4 |
12-20 5.5 |
20-30 7.5-11 |
1.3-1.6 |
131-323 |
800 |
≤6 4 |
6-15 5.5 |
15-30 7.5-15 |
1.3-1.6 |
278-546 |
1000 |
≤10 5.5 |
10-20 7.5-11 |
20-40 11-12 |
1.3-2.0 |
435-853 |
1200 |
≤10 7.5 |
10-20 11 |
20-40 15-30 |
1.3-2.0 |
655-1284 |
1400 |
≤10 7.5-11 |
10-20 11-18.5 |
20-40 18.5-37 |
1.3-2.0 |
800-1950 |
1600 |
≤10 11 |
10-20 11-22 |
20-40 18.5-45 |
1.3-2.0 |
1200-2600 |
1800 |
≤10 15 |
10-20 15-30 |
20-40 22-55 |
1.3-3.15 |
1500-3500 |
2000 |
≤10 18.5 |
10-20 18.5-37 |
20-40 30-75 |
1.3-3.15 |
1800-4000 |

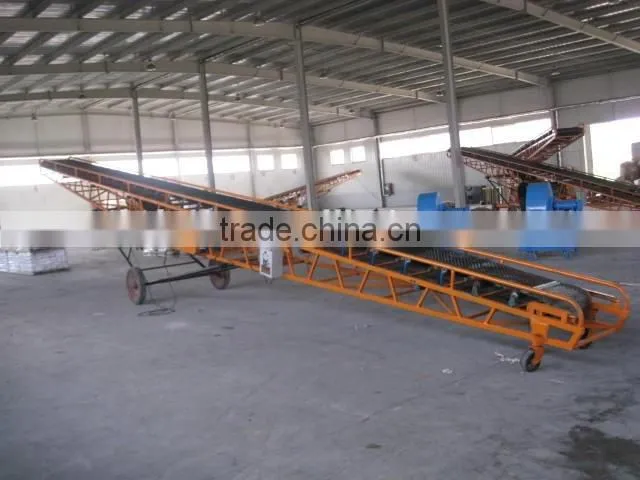

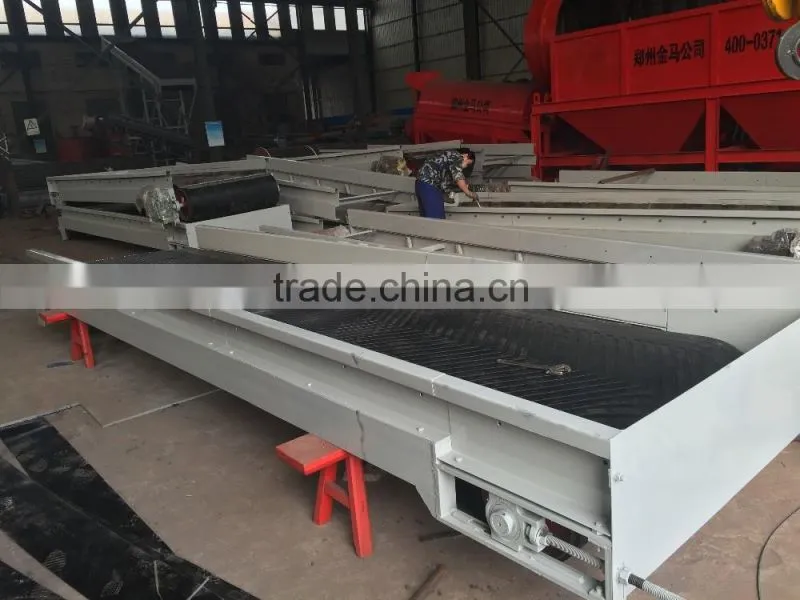

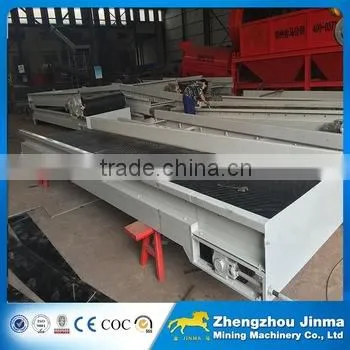

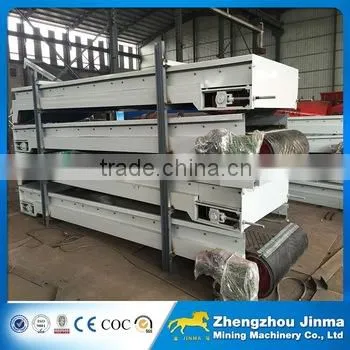

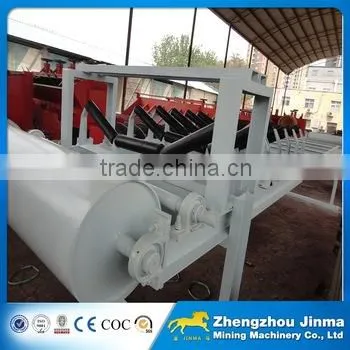

The mobile mining belt conveyor made by Jinma company:

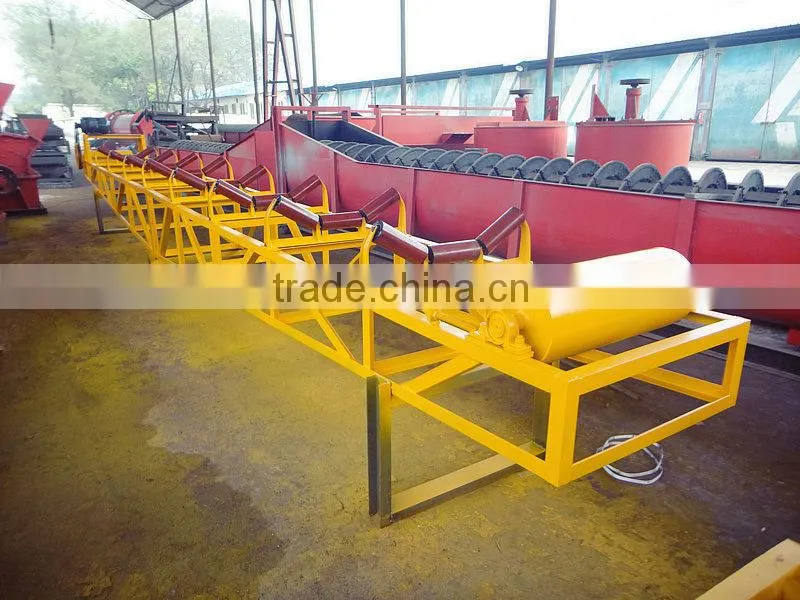

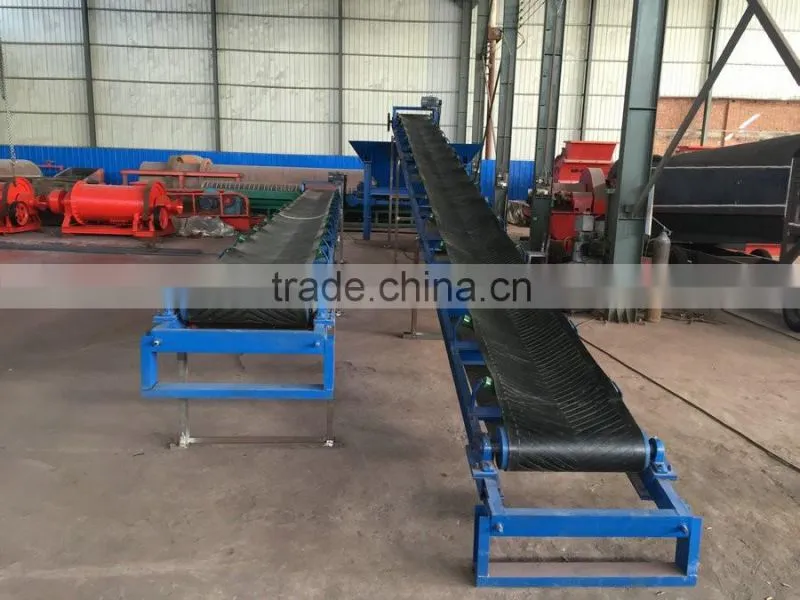

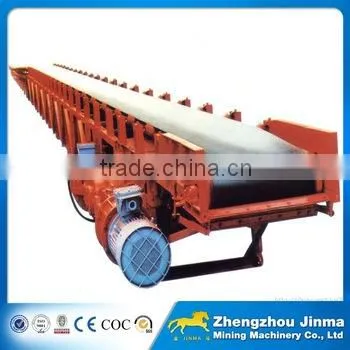

Additionly, we also provide the fixed belt conveyor:

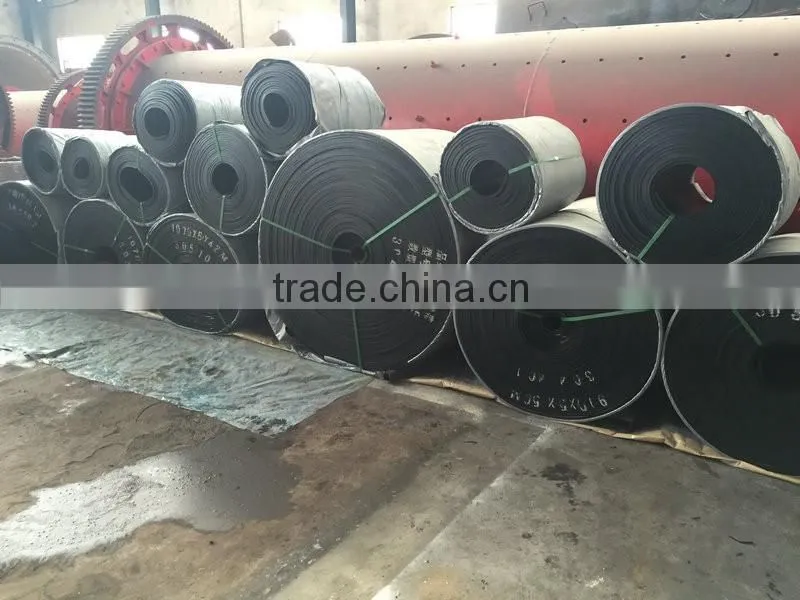

The different width rubber belt:

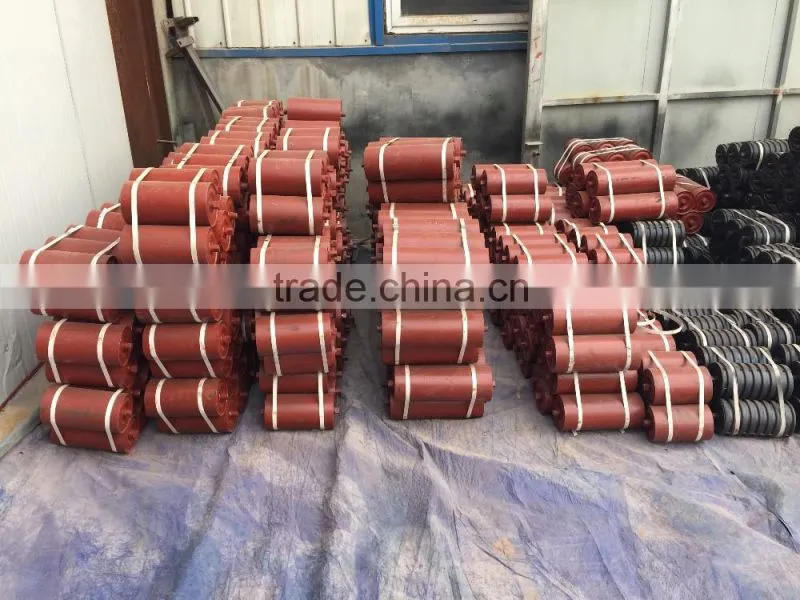

The idlers of belt conveyor:
The skirt side of the belt conveyor:

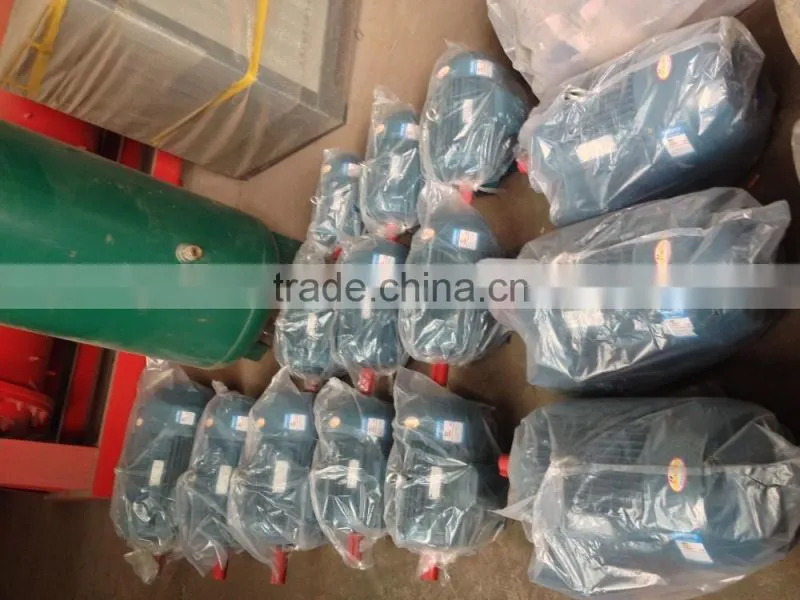

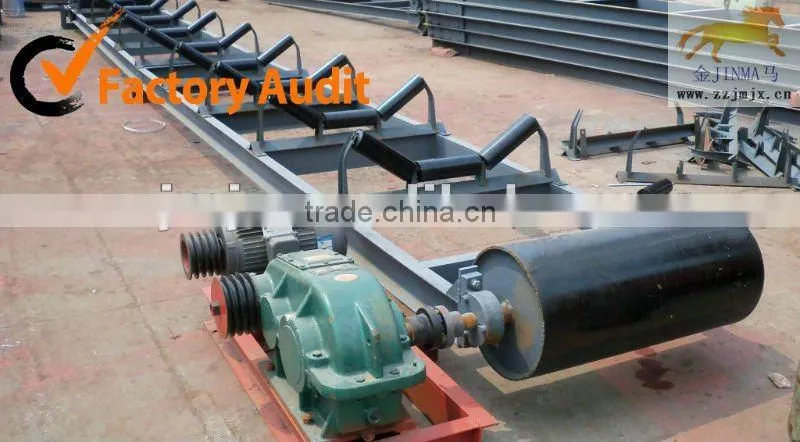

The motors and reducers of the belt conveyor:

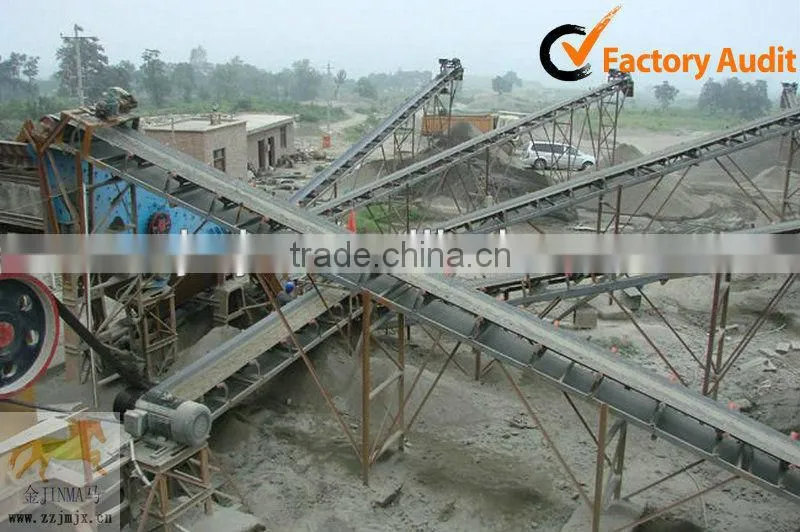

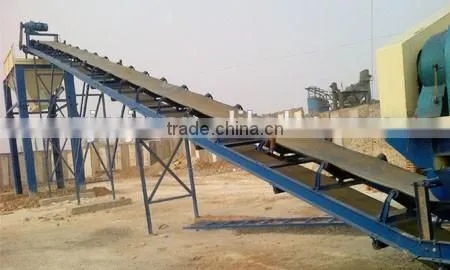

The working sites from our clients:
1>.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
4>.We provide one-year warranty to make sure your machine runs consistently.
We always offering lifelong services and provide spare parts for a long time
1>Zhengzhou Jinma Mining Machinery Co.,Ltd was established in 1976. Our company specializes in manufacturing large and medium-size crusher, sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines. Our company covers an area of 7000 square meters. Now, our annual export sales about six million USD. It has passed ISO9001:2008 quality management system, CE certification, SGS and BV factory audit.
2>Support & service from Zhengzhou Jinma Mining Machinery Co., Ltd.
1. Jinma provide the design, process diagram and foundation drawings according to clients' request.
2. Clients are welcome to inspect the equipment when the equipment are ready to delivery.
3. Equipment will be delivered with English Manuals and technical drawings
4. Engineers available to service machinery overseas, to make the layout design, foundations, guide the installation, commissioning run test, training workers, etc.
5.The equipment ordered from jinma will be guaranteed within 2 years since the day of purchasing if the problem is due to the equipment’s quality. If there is big quality problem with the equipment, the seller will discuss with the buyer and offer proposals to solve the problems within 72 hours since the notice from buyer.
6. Offer spares for the equipment within 10 years
Here are our company qualifications certificated by related institutions:
Oversea customers come to visit Jinma comoany:
1.How long is the delivery time of your products?
The delivery time is within 30 working days. But when the project is very big and the customers have special requirement on the equipment, the delivery could be extended.
2.How long is the equipments warranty period?
Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation arenot included.
3.What’s the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide installation service, workers training service, etc.
4.Can you provide wearing parts?
We have two casting factories that specialize in produce wearing parts for our clients. If your equipment are not manufactured by our company, please provide us the wearing parts drawing.
If you want to know more about the product ,please contact me as you are free.
| Name | Cathy Chen |
| Skype | cherish2228617703 |
| Whatsapp/Mobile | 0086-13939060840 |
| Tel | 86-371-56751868 |
| Address | No.8, Dianchang Road, Zhongyuan District., Zhengzhou,China |
Looking forward to having a win-win cooperation with you.
