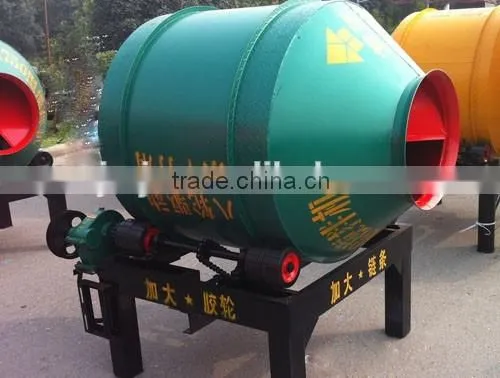

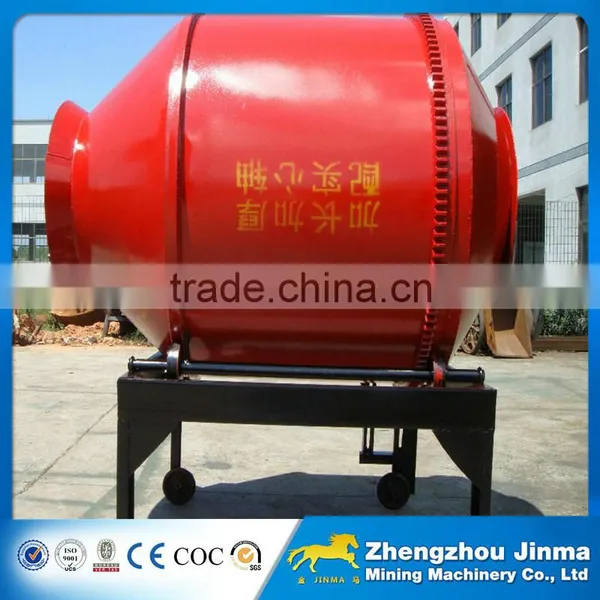

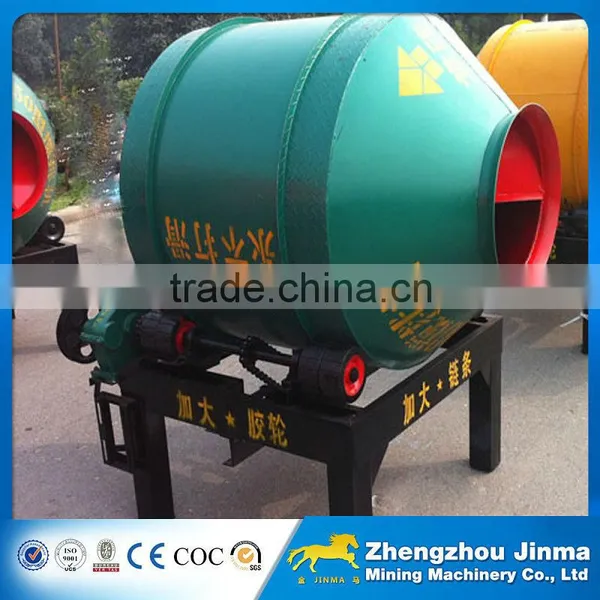

JW series small concrete mixer for sale
1. Description of JW series concrete mixer
JW series concrete mixer is a kind of self - drop type double - cone reverse discharge concrete mixer, which can be mixed with plastic and semi - dry concrete.
Mixing tube is rotating mixing, inversion of the material, can be mixed with 350 liters of concrete (refers to the volume of concrete), can produce 10~14 cubic meters per hour. Applicable to general construction sites, roads, bridges and small and medium sized concrete components factory. Small concrete mixer drum fixed stirring, digging a pit, the hopper opening flush with the ground, feeding is convenient, greatly reduce the labor intensity. This small roller concrete mixer is mostly not automatic feeding system.
2. Features of JW series concrete mixer
JW series concrete mixer has the advantages of novel structure, high production efficiency, good mixing quality, light weight, beautiful shape, etc., and the price of the small roller concrete mixer is cheap, and the general civil use is more. Presented here is a small concrete mixer drum and similar large drum concrete mixer, this small number and the flat concrete mixer is the use of its own small features.
3. Specification of JW series concrete mixer
Model |
JW-350 |
JW-500 |
Discharge capackty(L) |
350L |
500L |
Feed capacity(L) |
560L |
800L |
Capacity(m3/h) |
3-5 m3/h |
5-10 m3/h |
Maximum aggregate size of aggregate (gravel, crushed stone) |
60mm/40mm |
80mm/60mm |
Rotational Speed of Stirring Shaft |
20r/min |
17r/min |
Power |
5.5kw |
7.5kw |
mixing time |
30-300s |
30-300s |
Dimension(Length*Width*Height) |
1200*1300*1400mm |
1400*1600*1600mm |
Weight |
200kg |
400kg |
JW series concrete mixer Details
1. We will packing the bare machine in standard container, motor & small parts in wooden case. Or depend on your required.
2. We usually use truck and ship to transport the machine and remind you before ship arrived.
Zhengzhou Jinma Mining Machinery Co., Ltd. was established in 1976 subordinated to China CMIIC Engineering & Construction Corporation (CMIIC), the company specializes in manufacturing large and medium-size crushers, sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines.
While expanding domestic market constantly, the products are exported to over 50 countries like Chile, Peru, Costa Rica, USA, Vietnam, Indonesia, Malaysia, India, Philippines, Pakistan, Iran, Russia, Kazakhstan, Azerbaijan, Turkey, North Korea, South Africa, Tanzania, Ghana, etc.
