Automatical Aggregate Concrete Batching Machine
1. Description of PLD series Concrete Batching Machine
Zhengzhou Jinma PLD Series Concrete Batching Machine is one kind of automatic batching equipment matched with suitable mixers. It can automatically finish 3-6 kinds of materials batching process, like sand, stone and cement. It can batch materials to one or two mixers, so it greatly improving the efficiency of the work.
2. Application of PLD series Concrete Batching Machine
Concrete Batching Machine is widely used in all kinds of large and medium-sized construction project and concrete mixing station.
Concrete Batching Machine is usually used for sand, stone, cement, etc.
3. Specification of PLD series Concrete Batching Machine
Model |
PLD600 |
PLD800 |
PLD1200A |
PLD1200B |
PLD1600 |
PLD2400 |
PLD3200 |
PLD4800 |
Weighing dipper volume |
600 |
800 |
1200 |
1200 |
1600 |
2400 |
3200 |
4800 |
Storage hopper volume |
2*1.2m3 |
2*2m3 |
2*3m3 |
3*3m3 |
4*5m3 |
4*10m3 |
4*18m3 |
4*25m3 |
Capacity(m3/h) |
30 |
48 |
60 |
60 |
75 |
120 |
160 |
280 |
Batching accuracy |
±2% |
±2% |
±2% |
±2% |
±2% |
±2% |
±2% |
±2% |
Maximum weighing (kg) |
2000 |
2000 |
3000 |
3000 |
3000 |
4000 |
5000 |
8000 |
Aggragate Kinds |
2—3 |
2—3 |
2—4 |
2—4 |
2—5 |
2—5 |
2—5 |
2—5 |
Feeding Height (mm) |
1850 |
2430 |
2600 |
2600 |
2900 |
2900 |
2300 |
2300 |
Feed belt speed(m/s) |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
Power (kw) |
3*2.2 |
3*3 |
3*3 |
4*3 |
5*4 |
11 |
15 |
18.5 |
Weight(kg) |
1360 |
2300 |
2800 |
410 |
560 |
8500 |
10500 |
14000 |
Overall Dimension(L*W*H) (mm*mm*mm) |
3800 |
5400 |
6000 |
8400 |
12000 |
10000 |
14500 |
15520 |

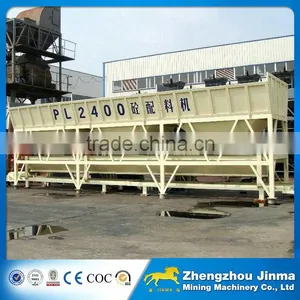

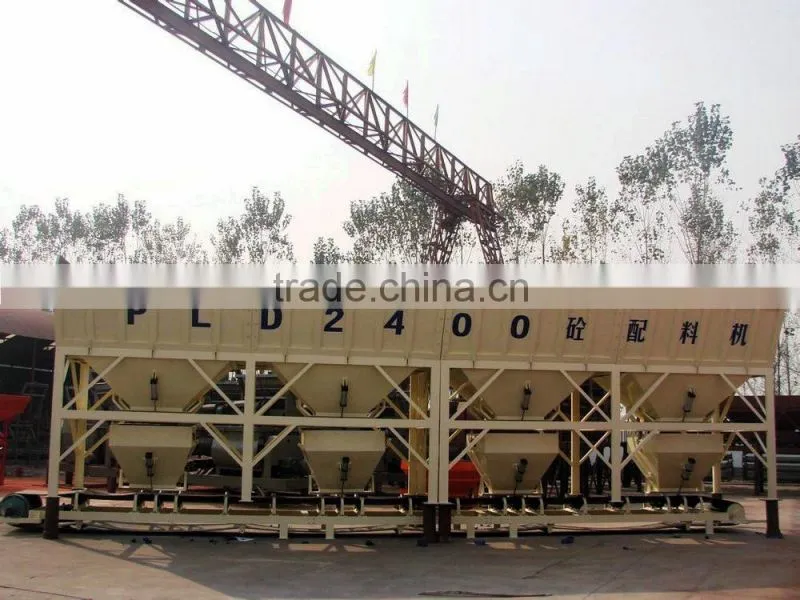

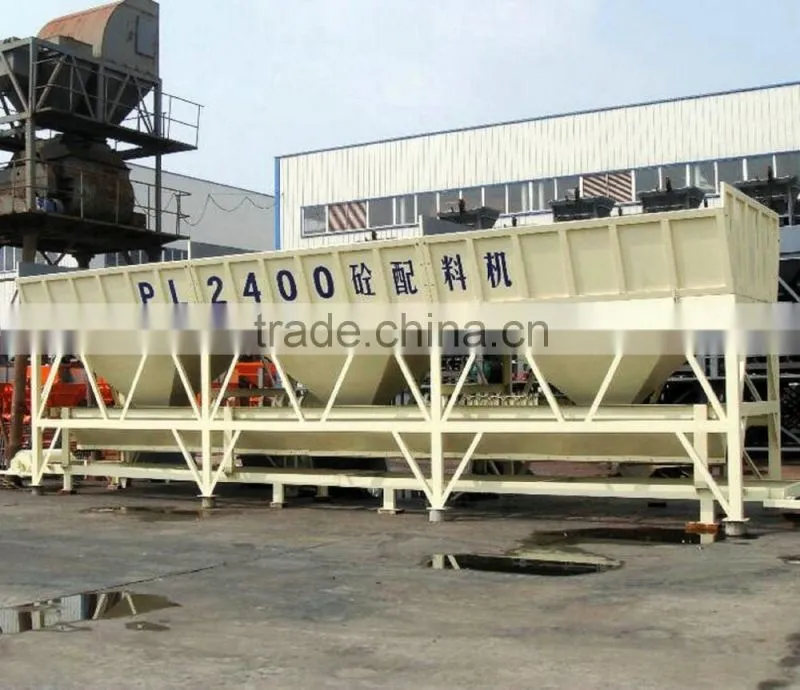

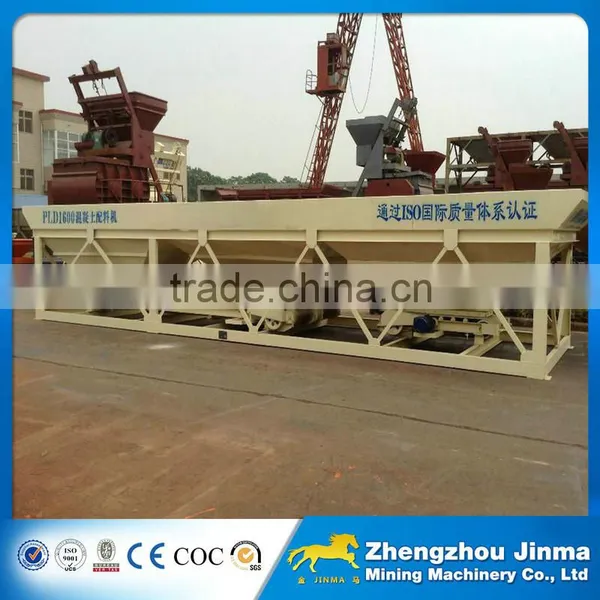

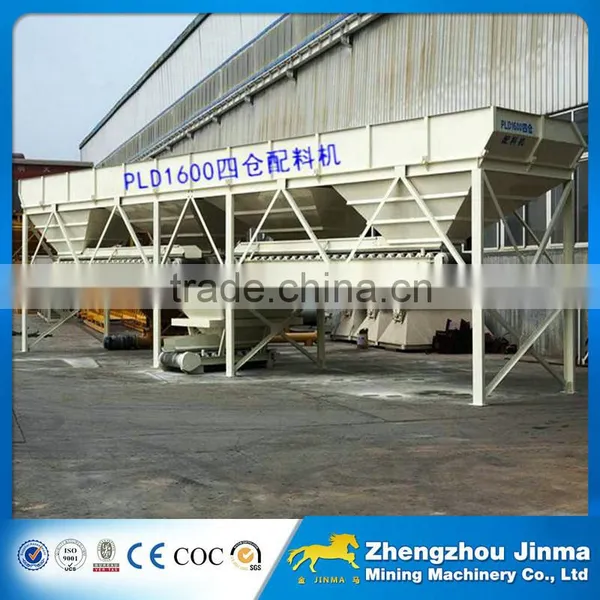

PLD series Concrete Batching Machine Details

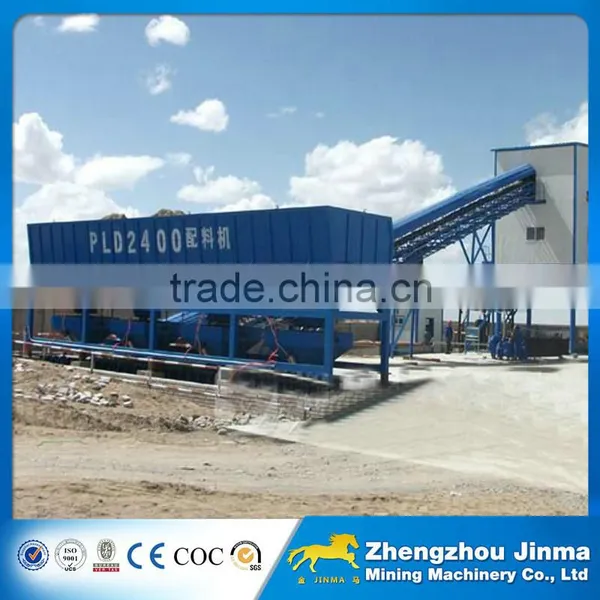

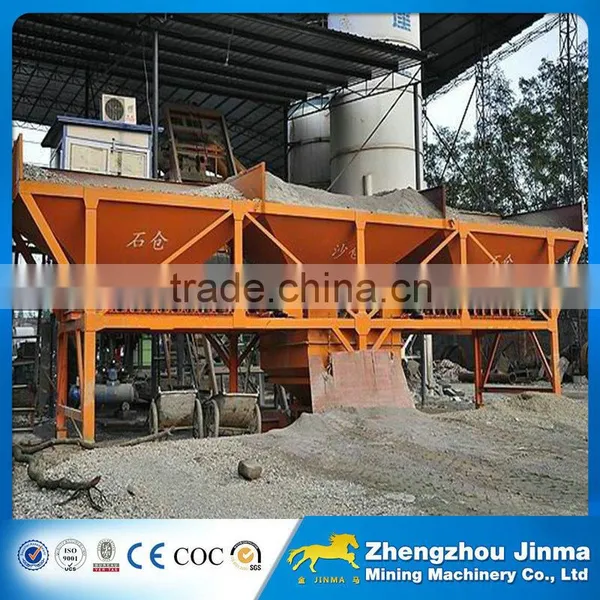

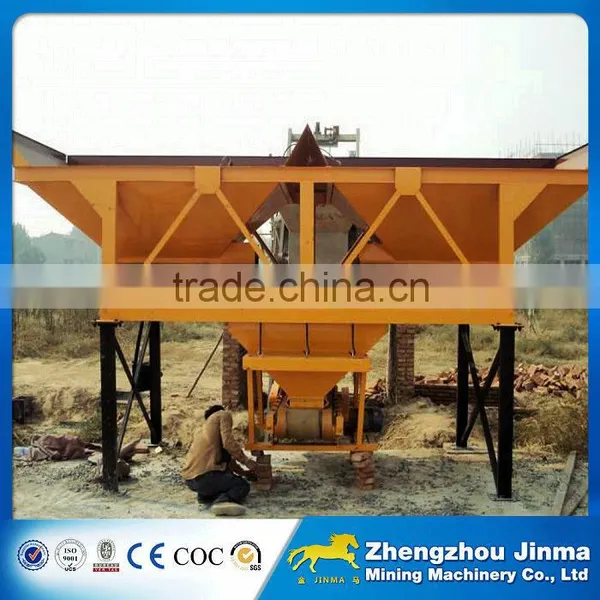

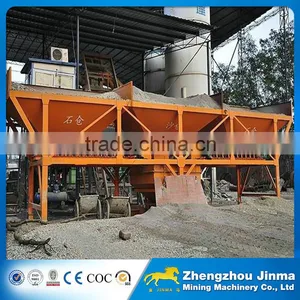

Working site of PLD series Concrete Batching Machine
1. We will packing the bare machine in standard container, motor & small parts in wooden case. Or depend on your required.
2. We usually use truck and ship to transport the machine and remind you before ship arrived.
Zhengzhou Jinma Mining Machinery Co., Ltd. was established in 1976 subordinated to China CMIIC Engineering & Construction Corporation (CMIIC), the company specializes in manufacturing large and medium-size crushers, sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines.
While expanding domestic market constantly, the products are exported to over 50 countries like Chile, Peru, Costa Rica, USA, Vietnam, Indonesia, Malaysia, India, Philippines, Pakistan, Iran, Russia, Kazakhstan, Azerbaijan, Turkey, North Korea, South Africa, Tanzania, Ghana, etc.
