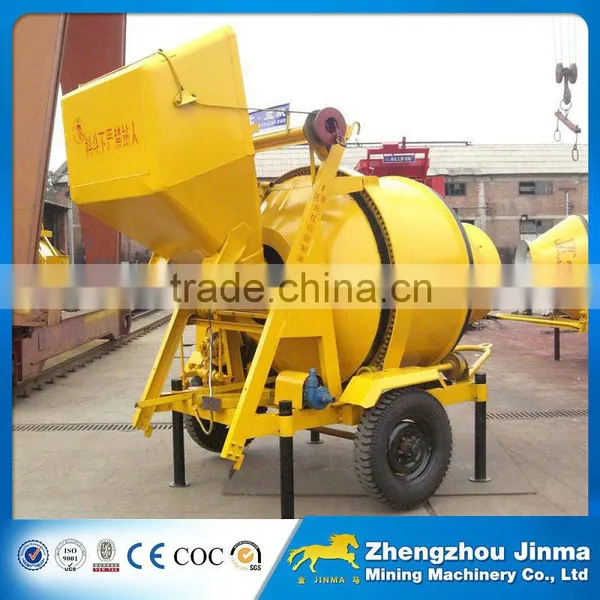

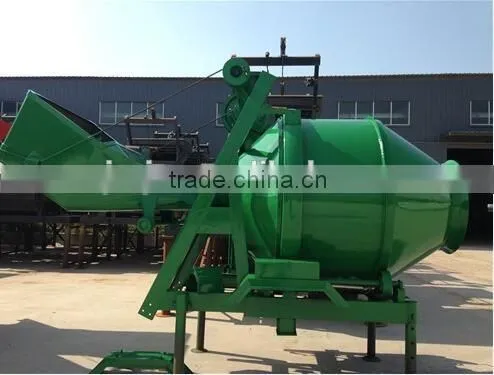

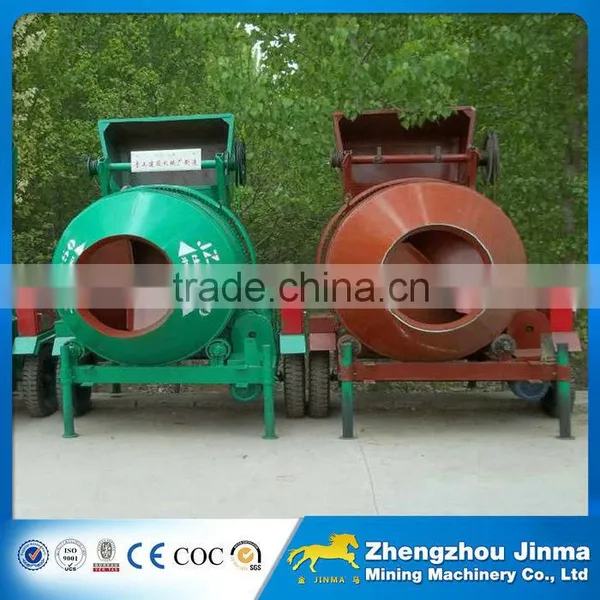

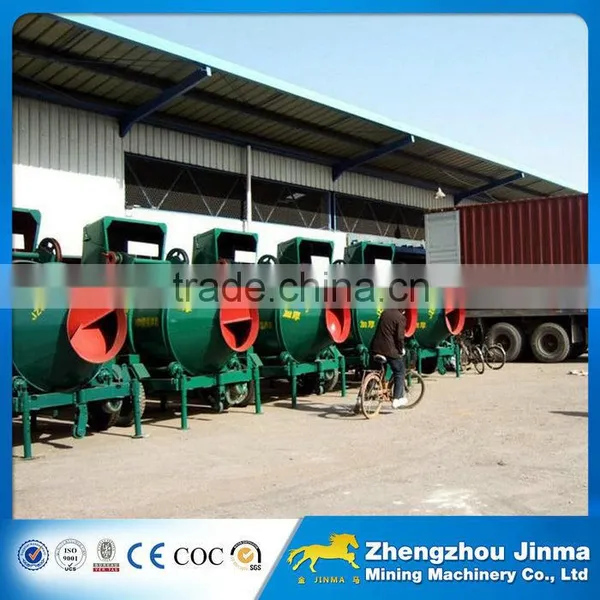

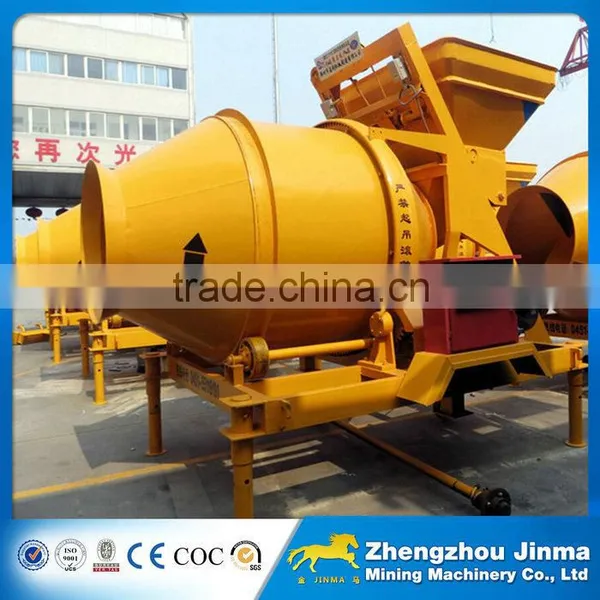

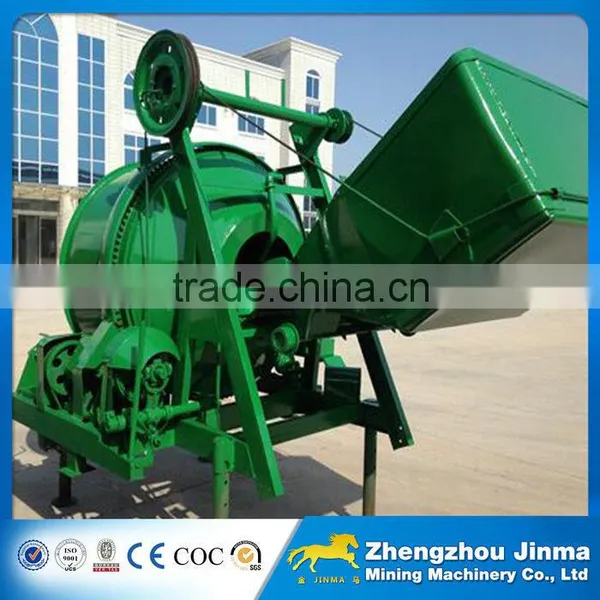

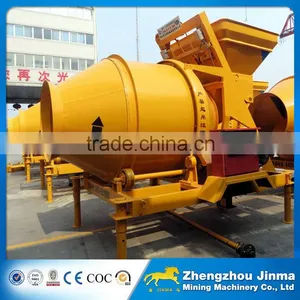

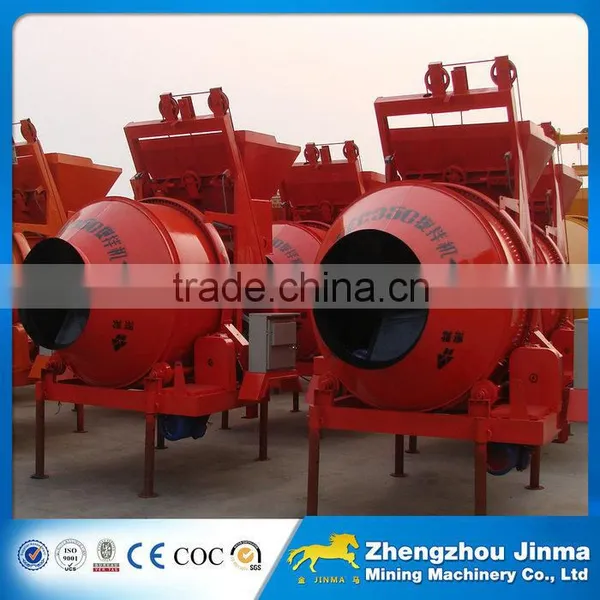

JZC series full climbing concrete mixer for sale
1. Description of JZC series full climbing concrete mixer
JZC series full climbing concrete mixer/climbing bucket feeding concrete mixer includes automatic dual-motor model and semi-automatic single-motor model. The former's hopper and mixing drum both are controlled by electric equipment. The latter's hopper is operated by the handle. It has many outstanding advantages such as compact structure, easy operation, stable working and high mixing quality.
2. Features of JZC series full climbing concrete mixer
1. Reliable transmission, small noise, low energy consumption.
2. Compact structure, smooth operation, easy to operate.
3 Good mixing quality, high productivity.
4 Applicable to general construction sites, roads, bridges, water and electricity and other engineering and small concrete components factory.
3. Specification of JZM series friction type concrete mixer
Model |
JZC250 |
JZC350 |
JZC500 |
|
Working performance |
Discharge capacity(L) |
250 |
350 |
500 |
Feed capacity(L) |
320 |
560 |
800 |
|
Capacity(m3/h) |
6-8 |
10-14 |
18-20 |
|
Rotational speed of mixing drum(r/min) |
17 |
14 |
13 |
|
Maximum aggregate size(mm) |
60 |
60 |
60-80 |
|
Precision of water supply |
deviation≤2% |
deviation≤2% |
deviation≤2% |
|
Motor |
Mixing motor power(KW) |
4 |
5.5 |
11 |
Lifting motor power(KW) |
4 |
5.5 |
5.5 |
|
Pump motor power(KW) |
0.55 |
0.55 |
0.75 |
|
Maximum towing speed(km/h) |
20 |
20 |
20 |
|
Tire specifications |
6.50-16 |
6.50-16 |
7.50-16 |
|
Dimension(Length*Width*Height) |
2260×1990×2750mm |
2766×2140×3000mm |
5226×2200×5460mm |
|
Weight(KG) |
1300 |
1950 |
3100 |
|
JZC series full climbing concrete mixer Details
1. We will packing the bare machine in standard container, motor & small parts in wooden case. Or depend on your required.
2. We usually use truck and ship to transport the machine and remind you before ship arrived.
Zhengzhou Jinma Mining Machinery Co., Ltd. was established in 1976 subordinated to China CMIIC Engineering & Construction Corporation (CMIIC), the company specializes in manufacturing large and medium-size crushers, sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines.
While expanding domestic market constantly, the products are exported to over 50 countries like Chile, Peru, Costa Rica, USA, Vietnam, Indonesia, Malaysia, India, Philippines, Pakistan, Iran, Russia, Kazakhstan, Azerbaijan, Turkey, North Korea, South Africa, Tanzania, Ghana, etc.
