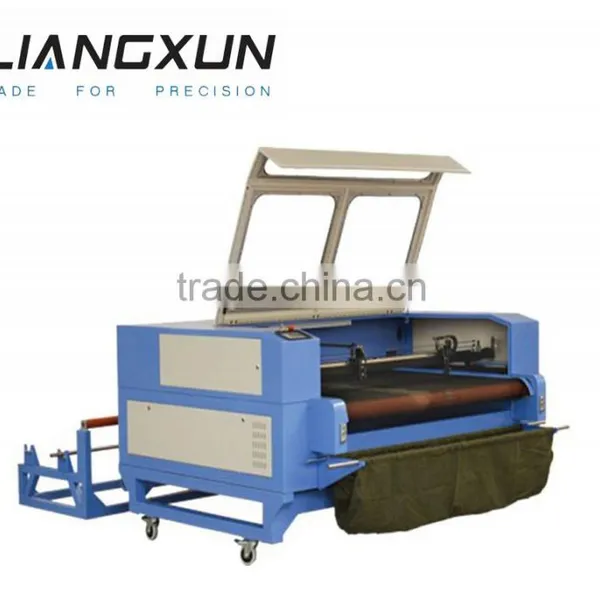

LX1610 Automatic Feeding Laser Cutter for textil

Name:

LX1610AT

Processing area

1600mm*1000mm (5.3feet*3.3feet)

Laser power

60W,80W,100W,130W,150W

Laser type:

Sealed Co2 glass laser tube

Cooling mode:

Water cooling and protection system

Resetting positioning accuracy:

±0.01mm

Compatible Software:

Laser cut 5.3, CorelDraw  AutoCAD  Photoshop

Whole machine size:

1850mm*1200mm*1000mm

Engraving speed

1-6000mm/min

Cutting speed

1-1000mm/min

Cutting thickness

0-25mm acrylic (others determined by materials)

Resolution ratio

≤0.0125mm

Position system:

Red dot

Interface:

USB

Minimum shaping character

letter 0.5mm, Chinese 0.5mm

Support graphic format

DST, PLT, BMP, DXF

Gross power

1000W

Driving mode:

DC0.8A 24V stepper motor

Cooling mode:

Circulation water cooling

Working voltage:

AC 110 - 220V±10%, 50 - 60Hz or depend on customer

Operating temperature

0-45C

Operating humidity:

5-95%

Driving system

stepper

Option:

Up and down table, rotary attachment

Packing:

wooden box

Guarantee time:

1 year, laser tube 3 months

Option:

Rotary attachment for column materials

Operation:

Video to tell customer how to operate the machine

Net weight:

190KGS before package, 240KGS after package
