Specifications
LX960 laser engraving machine1)red light position system
2)with up and down table
3)blade platform

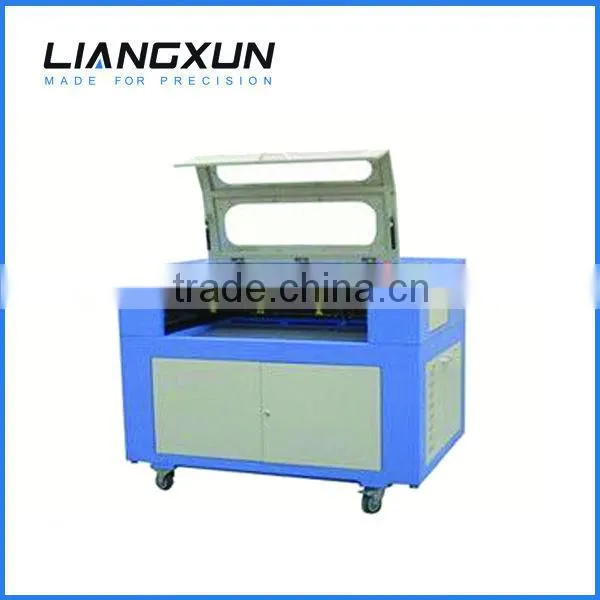

LX960 laser cutting machine
Brief introduction:
LX960T laser engraving and cutting machine is used specially for the nonmetal art crafts, gifts and the engraving of bamboo products. The mechanical structure is strong and stable, making the machine to run at high precision. The electrical ability is stable, the engraving speed is high, and the precision is high.
The machine can engrave beautiful pictures, peoples’ photos on the surface of many materials of different size of materials (marble, black or colored acrylic etc). It can also engrave many signs, marks. It is a machine with high cost performance.
Specification:
Name: |
LX960T |
Processing area |
900mm*600mm (3feet*2feet) |
Laser power |
60W,80W |
Laser type: |
Sealed Co2 glass laser tube |
Cooling mode: |
Water cooling and protection system |
Resetting positioning accuracy: |
±0.01mm |
Compatible Software: |
Laser cut 5.3, CorelDraw, AutoCAD, Photoshop |
Whole machine size: |
1420mm*1020mm*1150mm |
Engraving speed |
1-6000mm/min |
Cutting speed |
1-1000mm/min |
Cutting thickness |
0-20 mm acrylic (others determined by materials) |
Resolution ratio |
≤0.0125mm |
Position system: |
Red dot |
Interface: |
USB |
Minimum shaping character |
letter 0.8mm, Chinese 2mm |
Support graphic format |
DST, PLT, BMP, DXF |
Gross power |
1000W |
Driving mode: |
DC0.8A 24V stepper motor |
Cooling mode: |
Circulation water cooling |
Working voltage: |
AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
Operating temperature |
0-45C |
Operating humidity: |
5-95% |
Driving system |
stepper |
Option: |
Up and down table, rotary attachment |
Packing: |
wooden box |
Guarantee time: |
1 year, laser tube 3 months |
Option: |
Rotary attachment for column materials |
Operation: |
Video to tell customer how to operate the machine |
Net weight: |
190KGS before package, 240KGS after package |
Applicable materials:
Non-metal materials such as acrylic, double color board, Plexiglas, acrylic,
Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Samples:
Applicable industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo
and wooden product, garment and leather, embroidery, decoration and upholster industry.
Characteristics:
1) Japanese technical engine running, making sure the products to run at high aped and high precision.
2) The original binding beeline lead rail, the mechanic is running well and stable.
3) Channel feeding, the feeding can be unlimited.
4) The body of the machine adopts high quality aluminum, professional model and has the specification of strong and not easy for distortion.
5) The main parts of the electrical line adopts the imported materials, the mainly controlled CMOS chip adopts double face CPU.
Machine parts:
Looking for agents all over the world.
