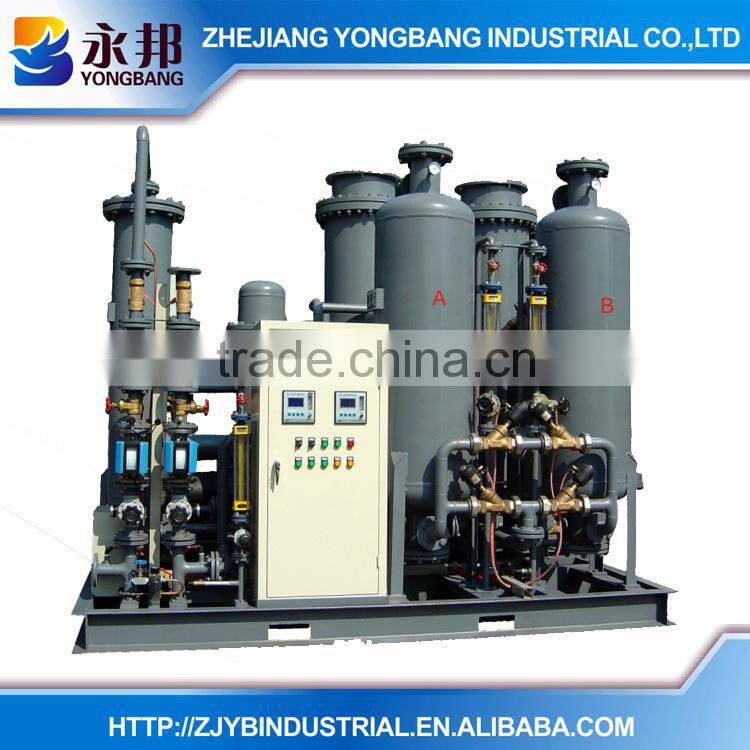

1.Pictures of Nitrogen Hydrogen Air Purifier
2.Chat Flow of Nitrogen Hydrogen Air Purifier
3. Principle of operation of Nitrogen Hydrogen Air Purifier
By the action of catalyst, the remaining O2 occurs reaction with H2.
After this reaction,enter into the drying system to do deep dehydration.
4.Technical characteristics of Nitrogen Hydrogen Air Purifier
Automatic control H2 amount, high automation, safety and reliable
Efficient activator
Advanced technology
Safety and reliable control element
Stable property
Intelligent interlocking emptying equipment
Fault alarm
Normal temperature deoxidization
Wide range deoxidization
5.Technical data of Nitrogen Hydrogen Air Purifier
BHP-Ⅰ
N2 production: 10~2000Nm3/h
N2 content: 500PPm(Not dehydrogenation)-5%(dehydrogenation)
O2 content:≤5ppm
N2 purity: ≥99.9995%
Dew point: ≤-60ºC
BHP-Ⅱ
N2 production: 10~2000Nm3/h
N2 content: ≤5ppm
O2 content:≤5ppm
N2 purity: ≥99.9995%
Dew point: ≤-60ºC
6.Technical Parameters of Nitrogen Hydrogen Air Purifier
| BHP-I | ||||||||||
| Item | BHP-10I | BHP-20I | BHP-40I | BHP-60I | BHP-100I | BHP-150I | BHP-200I | BHP-300I | BHP-400I | BHP-500I |
| Rated output of nitrogen (Nm³ / h) | 10 | 20 | 40 | 60 | 100 | 150 | 200 | 300 | 400 | 500 |
| The rated volume (Nm³ / h) | 11 | 22 | 44 | 66 | 110 | 165 | 220 | 330 | 440 | 550 |
| Hydrogen consumption (Nm³ / h) | 0.13 | 0.25 | 0.45 | 0.7 | 1.2 | 1.7 | 2.3 | 3.4 | 4.5 | 5.6 |
| Installed power (KW) | 1 | 1 | 1.5 | 1.5 | 2 | 3 | 5 | 7 | 7 | 9 |
| Cooling water (t / h) | 0.2 | 0.4 | 0.6 | 0.75 | 1.35 | 1.75 | 2.1 | 4.3 | 4.3 | 5.2 |
| BHP-II | ||||||||||
| Item | BHP-10II | BHP-20II | BHP-40II | BHP-60II | BHP-100II | BHP-150II | BHP-200II | BHP-300II | BHP-400II | BHP-500II |
| Rated output of nitrogen (Nm³ / h) | 10 | 20 | 40 | 60 | 100 | 150 | 200 | 300 | 400 | 500 |
| The rated volume (Nm³ / h) | 11 | 22 | 44 | 66 | 110 | 165 | 220 | 330 | 440 | 550 |
| Hydrogen consumption (Nm³ / h) | 0.13 | 0.25 | 0.45 | 0.7 | 1.2 | 1.7 | 2.3 | 3.4 | 4.5 | 5.6 |
| Installed power (KW) | 2 | 3 | 4 | 5 | 8 | 11 | 16 | 24 | 30 | 38 |
| Cooling water (t / h) | 0.4 | 0.5 | 1.2 | 1.5 | 2.7 | 3.5 | 4.3 | 6.2 | 8.6 | 10.5 |
Remark:
1, the data presented in the table are the ambient temperature 38 ℃, a standard atmospheric pressure, 32 ℃ cooling water temperature, imports 99.5% purity nitrogen, hydrogen purity of 90% of the design basis;
2, according to different requirements, allowing purification equipment imported nitrogen purity in the range of 95 to 99.99%. Hydrogen purity of 50 to 11%;
3, the above table does not involve changes in the type or design conditions, equipment details, please consult us, upon request.
