Home > Products > generator set > China Supplier Factory Direct Price Electric Portable Generator

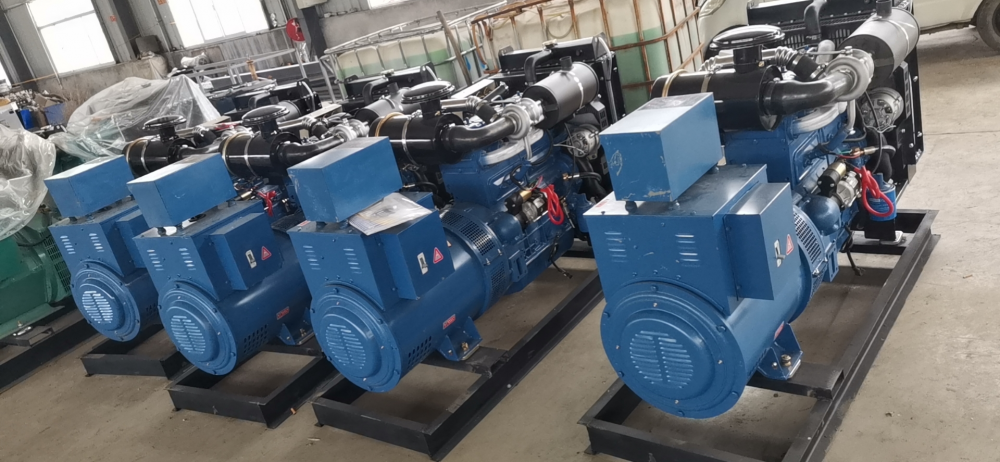

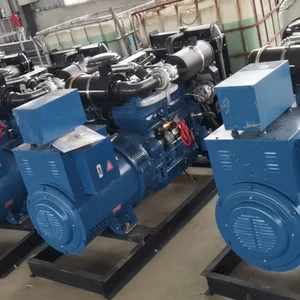

China Supplier Factory Direct Price Electric Portable Generator

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	wisdom	Place of Origin	China
Model Number	ws-800	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	1 year
Weight	1000kg	Dimension(LWH)	32.5 2m
Condition	New	Voltage	415v
Usage	Other	Power(W)	900kw
Production Rate	1500

Product Description

Brand	Power(Kw)	Qty
Weifang Power	50	1set
Still sound box	/	1set
With muffler, can work at high temperature of 50 degrees. The output power is sufficient and meets the power acceptance standard.

Supply list of diesel generator sets

	Details		Details
1	engine	2	Electric generator
3	24V electric starting motor	4	silencer
5	Random spare parts	6	Shock absorber
7	charger	8	Operation and maintenance manual
9	Battery connection cable	10	Pressure transducer
11	Temperature sensor	12	Speed sensor
13	Instruction Manual	14	Certificate of delivery

The configuration and technical parameters of the generator set

Item			Details
*Diesel generator set*
rand of unit			Weifang Power
Unit model number			50 KMS -
Manufacturer's name/address			China
Rated power (KVA)			65
Rated output voltage (V)			400
Frequency (Hz)			50
Rated speed (rpm)			1500
Rated power factor			0.8（lag）
Rated current (A)			72
Class of insulation			H GRADE
Class of protection			IP21
Mode of connection			Three phase four wire system
Unit weight (kg)			550
Unit size (length × width × height mm)			1730/600/1100
Noise dB(A)			75
Fuel consumption rate (g/kwh)			208
Start and stop modes			Electric starting
Unit overhaul time (H)			＞10000
*Diesel engine*
Brand of engine			Weifang Power
Origin of engine			China
Number of cylinders			4
structure			Straight line type
Speed regulation mode			Mechanical speed regulation
Filtration system			Adopt integral replacement type oil, diesel filter and air filter
Muffler and exhaust pipe			Using the industrial muffler with high noise reduction efficiency, the noise of the unit can be reduced by 15~20dBA
Start up mode			Start with 24V DC
*Alternating current generator*
Mode of excitation			Brush self excitation
Insulation levels of rotor and stator coils			H GRADE
Class of protection			IP21
Quality of power			G3 GRADE，GB/T2820
Voltage (V)			400
Voltage fluctuation (%)			≤0.5%
Voltage transient adjustment rate (%)			+20%～-15%
Voltage steady-state adjustment rate (%)			≤±0.25%
Voltage stabilization time			4S
Rotational speed (rpm)			1500
Frequency volatility (%)			≤0.5%
Frequency transient adjustment rate (%)			+10%～-7%
Frequency steady-state adjustment rate (%)			0~5%（adjustable）
Frequency stabilization time			3S
Waveform distortion rate			≤5%
Unit no-load voltage setting range			95%~105%Rated voltage
Random file
	Diesel engine instruction manual	1pcs
	Alternator instruction manual	1pcs
	Diesel generator set installation, use, maintenance manual	1pcs
	Product quality certification documents	1pcs
