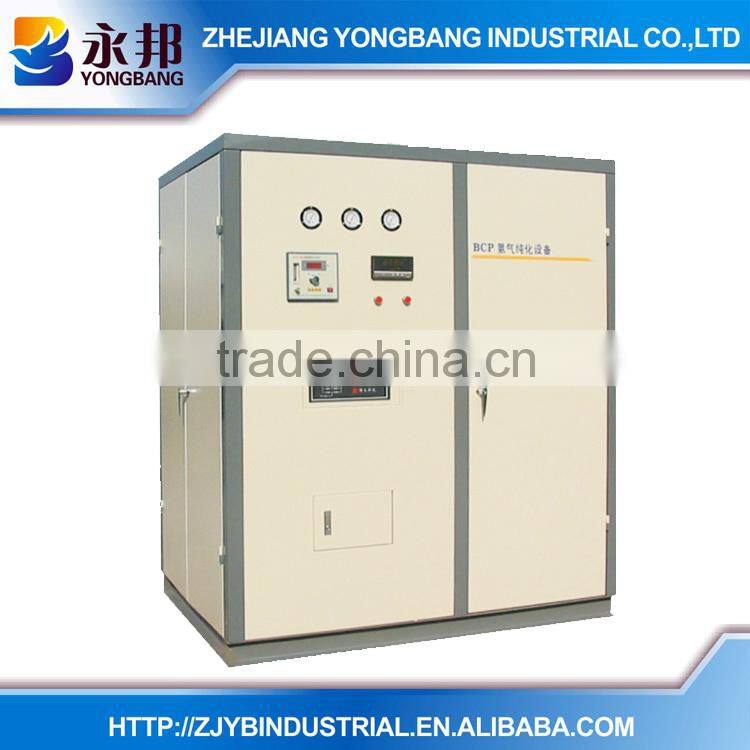

1.Pictures of Carbon Type Nitrogen Air Purifier

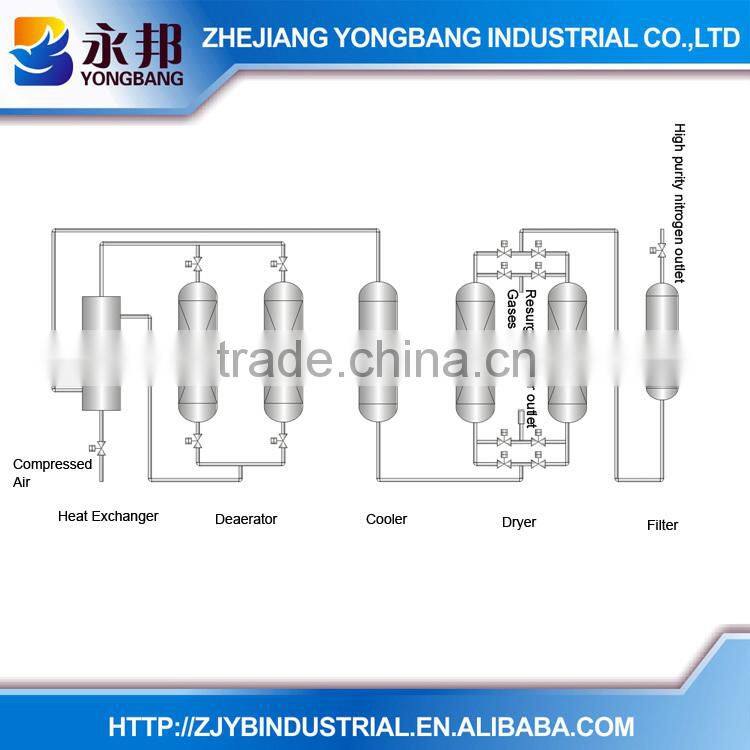

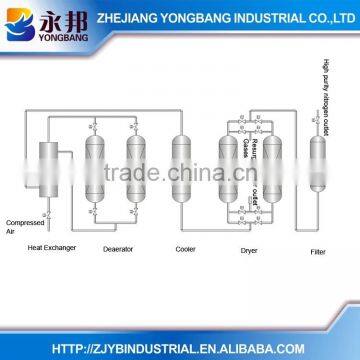

2.Chat Flow of Carbon Type Nitrogen Air Purifier
3. Principle of operation of
Carbon Type Nitrogen Air Purifier
Under certain temperature, the residual O2 in N2 occurs oxidation reaction with carbon in catalyst:C+O2=CO2,which can romoved by pressure swing adsorption process.
At the same time, deep dehydration is happened.Finally,we get high purity N2.
4.Technical characteristics of
Carbon Type Nitrogen Air Purifier
·Stable property, O2 content strictly control under 5PPm
·High purity, N2 purity≥99.9995%
·Safety and reliable control element
·H2 free,suitable for crafts which are strictly requirements of H2 and O2
·Intelligent interlocking emptying equipment
·Fault alarm
5.Technical data of Carbon Type Nitrogen Air Purifier
N2 output:10~500Nm3/h
N2 purity: ≥99.9995%
O2 content: ≤5PPm
Co2 content:≤1PPm
Dew point: ≤-60ºC
6.Technical Parameters of
Carbon Type Nitrogen Air Purifier
| Item | BCP-10 | BCP-20 | BCP-40 | BCP-60 | BCP-80 | BCP-100 | BCP-120 | BCP-160 | BCP-200 | BCP-250 | BCP-300 | BCP-400 |
| Rated output of nitrogen (Nm³ / h) | 10 | 20 | 40 | 60 | 80 | 100 | 120 | 160 | 200 | 250 | 300 | 400 |
| The rated volume (Nm³ / h) | 11 | 22 | 44 | 66 | 88 | 110 | 132 | 176 | 220 | 275 | 330 | 440 |
| The catalyst consumption (Kg) | 21.6 | 43.2 | 86.4 | 129.6 | 172.8 | 216 | 259.2 | 345.6 | 432 | 540 | 648 | 864 |
| Installed power (KW) | 1.5 | 3 | 6 | 9 | 12 | 15 | 18 | 24 | 30 | 37.5 | 45 | 60 |
| Cooling water (t / h) | 0.65 | 1.4 | 2.5 | 3.2 | 4.8 | 6.3 | 7.5 | 9.6 | 13.4 | 15.8 | 19.2 | 26 |
Remark:
1, the data presented in the table are the ambient temperature 38 ℃, a standard atmospheric pressure, 32 ℃ cooling water temperature, nitrogen inlet benchmark for the design purity of 99.9%;
2, the catalyst consumption by 24 hours a day, every three months to add a calculation;
3, the above table does not involve changes in the type or design conditions, equipment details, please consult us, upon request.

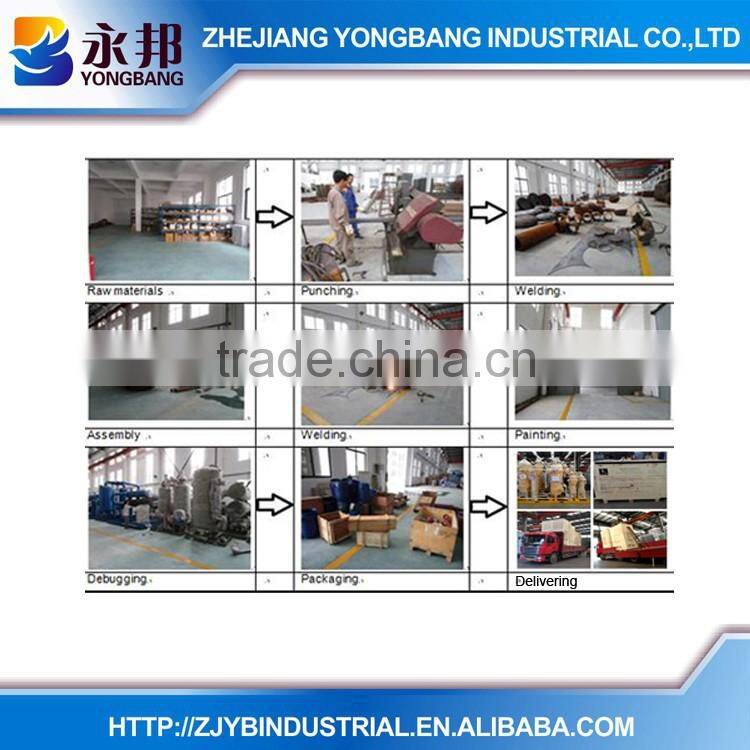

1.Production Flow
2.Warehouse
1.Company Induction
2.Company View
3.Factory View
4.Our Team
