IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable

IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable thumbnail-1
IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable thumbnail-2
IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable thumbnail-3
IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable thumbnail-4
IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable thumbnail-5
IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable thumbnail-6
IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable photo-1

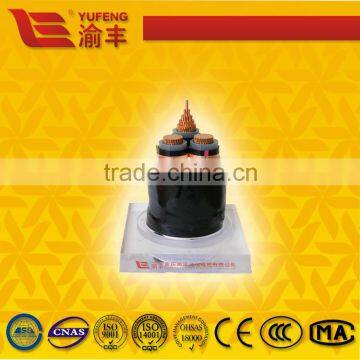

IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable photo-2

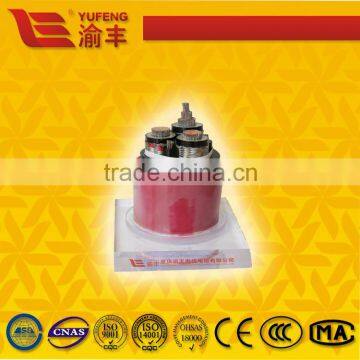

IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable photo-3
IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable photo-4
IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable photo-5
IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable photo-6
US$ 8.00 - 8.00 MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
YUFENG
Model Number:
Low/Medium Voltage
Contact Supplier Request Quote Chat Now
Chongqing Yufeng Wire & Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing / Shanghai / Guangzhou / Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name YUFENG
Model Number Low/Medium Voltage
Type Insulated
Application Overhead
Conductor Material Copper
Conductor Type Solid
Insulation Material PVC



IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable

Specifications

Type:Low/Medium Voltage

Color: Black

Certification:CE,CCC,ISO9001,ISO14001,ASG CNAS







IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable

IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable







Product Description



IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable

IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable





Specifications



IEC60502 26/35kv CU/ELPE/SWA/PVC Power Cable





XLPE Type Name Application
Cu Al
Conductor Conductor
YJV YJLV XLPE Insulated, PVC or PE Sheathed Power Cable For lying indoor, channel and underground. Unable to bear external mechanical force, but bear the traction force during lay.
YJV YJLV
YJV22 YJLV22 XLPE Insulated, Steel Tape Armored, PVC or PE Sheathed Power Cable For laying indoor, tunnel, channel and underground. Able to bear external mechanical force, but unable to bear large pulling force.
YJV23 YJLV23
YJV32 YJLV32 XLPE Insulated, Fine Steel Wire Armored, PVC or PE Sheathed Power Cable For lying in shave with large difference of level. Able to bear external mechanical force, and moderate pulling force.
YJV33 YJLV33
YJV42 YJLV42 XLPE Insulated, Thick Steel Wire Armored, PVC or PE Sheathed Power Cable Able to bear positive pressure and pulling force





Type

No . of  cores

Rated voltage(KV)

0.6/1

1.8/3

3.6/6

6/6   6/10

8.7/10    8.7/15

Nominal area of conductor (mm2)

YJV YJLV

YJV22 YJLV22

YJV32 YJLV32

1,2,3, 3+1, 3+2, 4+1, 5

1.5-630

10-400

25-400

25-400

25-400



YJV,YJV-6/6kv 6/10kv XLPE Insulated Power Cable
Nominal Cross Sectional Area(mm²) Thickness of Insulated(mm) Thickness of Outer Sleath (mm) Diameter of Overall Approx.(mm) Weight of Cable Cu Approx.(kg/km) Weight of Cable AL Approx.(kg/km) Conductor DC resistance CU Approx.(Ω/km) Conductor DC resistance AL Approx.(Ω/km) Testing Volts(kv/5min) Current Carring Capacity In Air CU (A) Current Carring Capacity In Air AL (A) Current Carring Capacity In Ground CU (A) Current Carring Capacity In Ground AL (A)
1×25 3.4 2 20 598 443 ≤0.727 ≤1.20 21 190 145 210 160
1×35 3.4 2 22 719 502 ≤0.524 ≤0.868 21 230 180 250 195
1×50 3.4 2 23 884 575 ≤0.387 ≤0.641 21 275 215 300 230
1×70 3.4 2 24 1097 664 ≤0.268 ≤0.443 21 345 265 370 285
1×95 3.4 2 26 1378 790 ≤0.193 ≤0.320 21 415 325 445 345
1×120 3.4 2 28 1658 916 ≤0.153 ≤0.253 21 480 375 505 395
1×150 3.4 2 30 1967 1038 ≤0.124 ≤0.206 21 550 425 575 445
1×185 3.4 2 31 2335 1190 ≤0.0991 ≤0.164 21 635 490 650 500
1×240 3.4 2 34 2908 1423 ≤0.0754 ≤0.125 21 745 580 760 590
1×300 3.4 2 36 3507 1650 ≤0.0601 ≤0.100 21 860 665 870 670
1×400 3.4 2.5 39 4503 2027 ≤0.0470 ≤0.0778 21 1010 785 1000 780
1×500 3.4 2.5 42 5479 2384 ≤0.0366 ≤0.060 21 1180 910 1150 895
1×630 3.4 2.5 48 6952 3046 ≤0.0283 ≤0.0469 21 1330 1060 1280 1016
1×800 3.4 2.6 52 7120 3575 ≤0.0221 ≤0.0367 21 1530 1230 1430 1160
1×1000 3.4 2.8 57 10500 4300 ≤0.0176 ≤0.0291 21 1720 1410 1595 1300
1×1200 3.4 2.9 61 12426 4986 ≤0.0151 ≤0.0247 21 1876 1540 1695 1410
3×25 3.4 2.5 42 895 1430 ≤0.727 ≤1.20 21 145 110 140 110
3×35 3.4 2.5 44 2293 1640 ≤0.524 ≤0.868 21 175 130 170 130
3×50 3.4 2.5 46 2812 1881 ≤0.387 ≤0.641 21 205 160 200 155
3×70 3.4 3 50 3508 2205 ≤0.268 ≤0.443 21 255 195 245 155
3×95 3.4 3 54 4402 2653 ≤0.193 ≤0.320 21 310 235 290 190
3×120 3.4 3 58 5319 3087 ≤0.153 ≤0.253 21 350 275 330 225
3×150 3.4 3 62 6309 3518 ≤0.124 ≤0.206 21 400 310 370 225
3×185 3.4 3 65 7319 3877 ≤0.0991 ≤0.164 21 455 355 420 325
3×240 3.4 3.5 71 9218 4753 ≤0.0754 ≤0.125 21 530 415 480 380
3×300 3.4 3.5 75 11159 5577 ≤0.0601 ≤0.1005 21 605 475 545 430
3×400 3.4 3.7 84 15107 7547 ≤0.0470 ≤0.0778 21 705 555 625 485

YJV,YJV-8.7/10kv 8.7/15kv XLPE Insulated Power Cable
Nominal Cross Sectional Area(mm²) Thickness of Insulated(mm) Thickness of Outer Sleath (mm) Diameter of Overall Approx.(mm) Weight of Cable Cu Approx.(kg/km) Weight of Cable AL Approx.(kg/km) Conductor DC resistance CU Approx.(Ω/km) Conductor DC resistance AL Approx.(Ω/km) Testing Volts(kv/5min) Current Carring Capacity In Air CU (A) Current Carring Capacity In Air AL (A) Current Carring Capacity In Ground CU (A) Current Carring Capacity In Ground AL (A)
1×25 4.5 1.8 23 680 525 ≤0.727 ≤1.20 30.5 190 145 210 160
1×35 4.5 1.8 24 804 587 ≤0.524 ≤0.868 30.5 230 180 250 195
1×50 4.5 1.9 25 984 674 ≤0.387 ≤0.641 30.5 275 215 300 230
1×70 4.5 1.9 27 1201 768 ≤0.268 ≤0.443 30.5 345 265 370 285
1×95 4.5 2 29 1490 902 ≤0.193 ≤0.320 30.5 415 325 445 345
1×120 4.5 2 30 1765 1022 ≤0.153 ≤0.253 30.5 480 375 505 395
1×150 4.5 2.1 32 2091 1162 ≤0.124 ≤0.206 30.5 550 425 575 445
1×185 4.5 2.1 34 2452 1307 ≤0.0991 ≤0.164 30.5 635 490 650 500
1×240 4.5 2.2 36 3034 1548 ≤0.0754 ≤0.125 30.5 745 580 760 590
1×300 4.5 2.4 39 3672 1815 ≤0.0601 ≤0.100 30.5 860 665 870 670
1×400 4.5 2.4 42 4646 2170 ≤0.0470 ≤0.0778 30.5 1010 785 1000 780
1×500 4.5 2.5 45 5651 2556 ≤0.0366 ≤0.060 30.5 1180 910 1150 895
1×630 4.5 2.5 50 7154 3248 ≤0.0283 ≤0.0469 30.5 1330 1060 1280 1016
1×800 4.5 2.7 55 8750 3790 ≤0.0221 ≤0.0367 30.5 1530 1230 1430 1160
1×1000 4.5 2.9 59 10727 4527 ≤0.0176 ≤0.0291 30.5 1720 1410 1595 1300
1×1200 4.5 3 63 12642 5202 ≤0.0151 ≤0.0247 30.5 1876 1540 1695 1410
3×25 4.5 2.8 50 2573 2072 ≤0.727 ≤1.20 30.5 145 110 140 110
3×35 4.5 2.9 53 2985 2334 ≤0.524 ≤0.868 30.5 175 130 170 130
3×50 4.5 2.9 55 3529 2598 ≤0.387 ≤0.641 30.5 205 160 200 155
3×70 4.5 2.9 58 4197 2895 ≤0.268 ≤0.443 30.5 255 195 245 190
3×95 4.5 3.3 63 5230 3462 ≤0.193 ≤0.320 30.5 310 235 290 225
3×120 4.5 3.3 66 6120 3888 ≤0.153 ≤0.253 30.5 350 275 330 255
3×150 4.5 3.6 70 7207 4416 ≤0.124 ≤0.206 30.5 400 310 370 225
3×185 4.5 3.6 74 8378 4935 ≤0.0991 ≤0.164 30.5 455 355 420 325
3×240 4.5 3.6 79 10177 5712 ≤0.0754 ≤0.125 30.5 530 415 480 380
3×300 4.5 3.8 84 12159 6577 ≤0.0601 ≤0.1005 30.5 605 475 545 430
3×400 4.5 3.9 89 15641 8081 ≤0.0470 ≤0.0778 30.5 705 555 625 485

YJV,YJV-12/20kv XLPE Insulated Power Cable
Nominal Cross Sectional Area(mm²) Thickness of Insulated(mm) Thickness of Outer Sleath (mm) Diameter of Overall Approx.(mm) Weight of Cable Cu Approx.(kg/km) Weight of Cable AL Approx.(kg/km) Conductor DC resistance CU Approx.(Ω/km) Conductor DC resistance AL Approx.(Ω/km) Testing Volts(kv/5min) Current Carring Capacity In Air CU (A) Current Carring Capacity In Air AL (A) Current Carring Capacity In Ground CU (A) Current Carring Capacity In Ground AL (A)
1×35 5.5 2 27 979 762 ≤0.524 ≤0.868 42 230 180 250 195
1×50 5.5 2 29 1155 846 ≤0.387 ≤0.641 42 275 215 295 225
1×70 5.5 2 30 1393 959 ≤0.268 ≤0.443 42 340 265 360 280
1×95 5.5 2 32 1681 1093 ≤0.193 ≤0.320 42 415 325 440 340
1×120 5.5 2 34 1979 1236 ≤0.153 ≤0.253 42 480 370 495 385
1×150 5.5 2 35 2301 1373 ≤0.124 ≤0.206 42 550 420 560 435
1×185 5.5 2 38 2718 1573 ≤0.0991 ≤0.164 42 630 485 640 495
1×240 5.5 2.5 40 3302 1817 ≤0.0754 ≤0.125 42 745 575 750 580
1×300 5.5 2.5 43 3941 2084 ≤0.0601 ≤0.100 42 860 660 855 660
1×400 5.5 2.5 45 4931 2455 ≤0.0470 ≤0.0778 42 1000 775 980 765
1×500 5.5 2.5 48 5956 2861 ≤0.0366 ≤0.0605 42 1160 890 1140 885
1×630 5.5 2.6 49 7769 3863 ≤0.0283 ≤0.0469 42 1330 1060 1280 1010
1×800 5.5 2.8 57 8945 3985 ≤0.0221 ≤0.0367 42 1530 1230 1430 1160
1×1000 5.5 2.9 61 10918 4718 ≤0.0176 ≤0.0291 42 1720 1410 1595 1300
1×1200 5.5 3.1 65 12900 5460 ≤0.0151 ≤0.0247 42 1876 1540 1695 1410
3×35 5.5 3 57 3348 2696 ≤0.524 ≤0.868 42 175 130 170 130
3×50 5.5 3 60 3904 2973 ≤0.387 ≤0.641 42 205 160 200 155
3×70 5.5 3 63 4623 3321 ≤0.268 ≤0.443 42 255 195 245 190
3×95 5.5 3.5 67 5593 3825 ≤0.193 ≤0.320 42 310 240 290 225
3×120 5.5 3.5 71 6495 4262 ≤0.153 ≤0.253 42 350 275 330 225
3×150 5.5 3.5 74 7637 4846 ≤0.124 ≤0.206 42 400 310 370 325
3×185 5.5 3.5 78 8803 5361 ≤0.0991 ≤0.164 42 455 355 415 380
3×240 5.5 3.5 84 10729 6263 ≤0.0754 ≤0.125 42 535 420 480 430
3×300 5.5 4 89 12723 7141 ≤0.0601 ≤0.100 42 610 475 545 490
3×400 5.5 4.1 96 16207 8647 ≤0.0470 ≤0.0778 42 705 555 625 485

YJV,YJV-21/35kv XLPE Insulated Power Cable
Nominal Cross Sectional Area(mm²) Thickness of Insulated(mm) Thickness of Outer Sleath (mm) Diameter of Overall Approx.(mm) Weight of Cable Cu Approx.(kg/km) Weight of Cable AL Approx.(kg/km) Conductor DC resistance CU Approx.(Ω/km) Conductor DC resistance AL Approx.(Ω/km) Testing Volts(kv/5min) Current Carring Capacity In Air CU (A) Current Carring Capacity In Air AL (A) Current Carring Capacity In Ground CU (A) Current Carring Capacity In Ground AL (A)
1×95 9.3 2.5 40 2193 1605 ≤0.193 ≤0.320 73.5 415 320 420 325
1×120 9.3 2.5 42 2498 1756 ≤0.153 ≤0.253 73.5 475 370 480 370
1×150 9.3 2.5 44 2830 1910 ≤0.124 ≤0.206 73.5 540 420 540 420
1×185 9.3 2.5 45 3248 2102 ≤0.0991 ≤0.164 73.5 620 480 620 480
1×240 9.3 2.5 48 3881 2395 ≤0.0754 ≤0.125 73.5 730 565 725 560
1×300 9.3 3 50 4529 2672 ≤0.0601 ≤0.100 73.5 840 650 830 640
1×400 9.3 3 53 5570 3094 ≤0.0470 ≤0.0778 73.5 995 780 970 760
1×500 9.3 3 55 6690 3595 ≤0.0366 ≤0.0605 73.5 1160 915 1130 875
1×630 9.3 3.1 60 8099 4193 ≤0.0283 ≤0.0469 73.5 1290 1030 1260 990
1×800 9.3 3.1 65 9752 4792 ≤0.0221 ≤0.0367 73.5 1480 1180 1430 1140
1×1000 9.3 3.2 70 11781 5581 ≤0.0176 ≤0.0291 73.5 1660 1350 1570 1280
1×1200 9.3 3.3 74 13784 6344 ≤0.0151 ≤0.0247 73.5 1810 1500 1720 1390

YJV,YJV-26/35kv XLPE Insulated Power Cable
Nominal Cross Sectional Area(mm²) Thickness of Insulated(mm) Thickness of Outer Sleath (mm) Diameter of Overall Approx.(mm) Weight of Cable Cu Approx.(kg/km) Weight of Cable AL Approx.(kg/km) Conductor DC resistance CU Approx.(Ω/km) Conductor DC resistance AL Approx.(Ω/km) Testing Volts(kv/5min) Current Carring Capacity In Air CU (A) Current Carring Capacity In Air AL (A) Current Carring Capacity In Ground CU (A) Current Carring Capacity In Ground AL (A)
1×50 10.5 2.2 39 1758 1449 ≤0.387 ≤0.641 91 275 210 285 220
1×70 10.5 2.4 41 2038 1604 ≤0.268 ≤0.443 91 340 265 350 270
1×95 10.5 2.4 43 2355 1767 ≤0.193 ≤0.320 91 415 320 420 325
1×120 10.5 2.4 44 2666 1923 ≤0.153 ≤0.253 91 475 370 480 370
1×150 10.5 2.5 46 3031 2103 ≤0.124 ≤0.206 91 540 420 540 420
1×185 10.5 2.5 48 3427 2282 ≤0.0991 ≤0.164 91 620 480 620 480
1×240 10.5 2.6 50 4070 2584 ≤0.0754 ≤0.125 91 730 565 725 560
1×300 10.5 2.7 53 4748 2891 ≤0.0601 ≤0.100 91 840 650 830 640
1×400 10.5 2.8 56 5801 3325 ≤0.0470 ≤0.0778 91 995 780 970 760
1×500 10.5 2.9 59 6623 4076 ≤0.0366 ≤0.0605 91 1160 915 1130 875
1×630 10.5 3 63 8211 4305 ≤0.0283 ≤0.0469 91 1290 1030 1260 990
1×800 10.5 3.1 68 10014 5054 ≤0.0221 ≤0.0367 91 1480 1180 1430 1140
1×1000 10.5 3.3 72 12078 5878 ≤0.0176 ≤0.0291 91 1660 1350 1570 1280
1×1200 10.5 3.4 76 14100 6657 ≤0.0151 ≤0.0247 91 1810 1500 1720 1390
3×50 10.5 3.4 81 6728 5778 ≤0.387 ≤0.641 91 189 152 168 144
3×70 10.5 3.5 84 7581 6232 ≤0.268 ≤0.443 91 244 189 223 177
3×95 10.5 3.6 88 8630 6824 ≤0.193 ≤0.320 91 295 225 270 200
3×120 10.5 3.8 93 9688 7406 ≤0.153 ≤0.253 91 331 258 307 237
3×150 5.5 3.9 96 11017 8165 ≤0.124 ≤0.206 91 377 290 344 265
3×185 10.5 4 100 12390 8904 ≤0.0991 ≤0.164 91 400 310 385 295
3×240 10.5 4.1 105 14427 9863 ≤0.0754 ≤0.125 91 470 365 445 345
3×300 10.5 4.4 108 15940 10270 ≤0.0601 ≤0.100 91 545 425 505 390
3×400 10.5 4.5 116 19346 11786 ≤0.0470 ≤0.0778 91 635 490 575 450
