Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Factory Lowest Price Copper Network Cable 2/4pairs 24AWG UTP Cat5e Cable 305m Wholesale

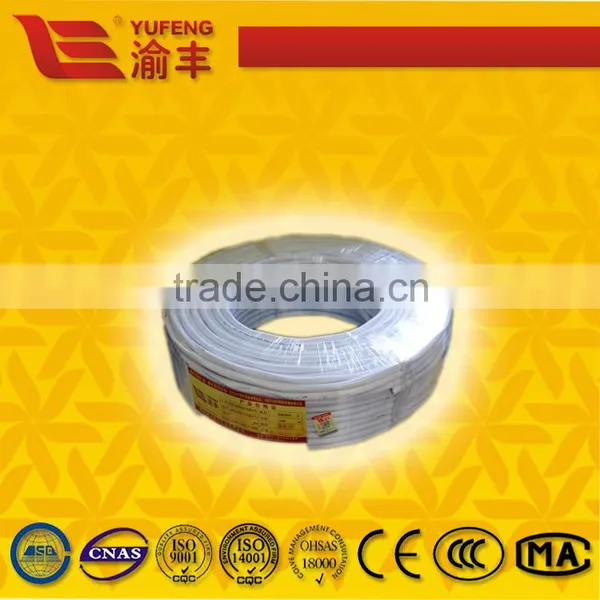

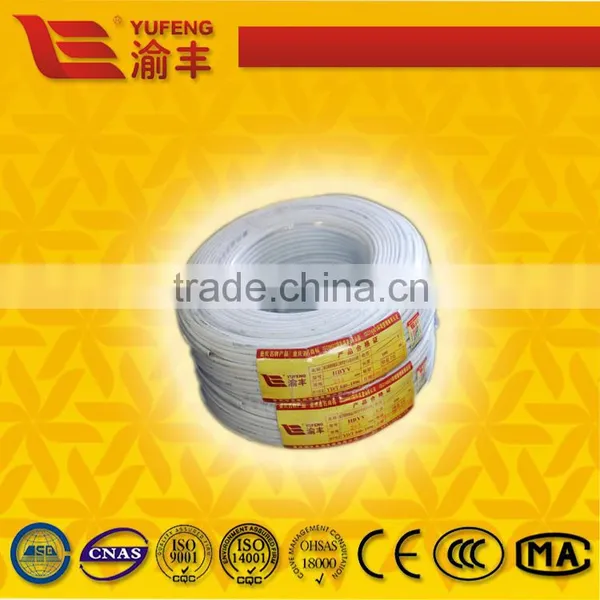

Factory Lowest Price Copper Network Cable 2/4pairs 24AWG UTP Cat5e Cable 305m Wholesale
US$ 0.10 - 0.10
MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
YUFENG
Model Number:
BV BVR BVV BVVB RV RVV
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing / Shanghai / Guangzhou / Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Type Audio Cable for Audio Devices With Good QualityUS$ 0.10 - 0.10MOQ: 100 Meters -
Colours Copper Network Cable 2/4pairs 24awg UTP Cat5e Cable 305mUS$ 0.1 - 0.3MOQ: 100 Meters
-
High Speed Lan Network CableUS$ 0.1 - 0.3MOQ: 100 Meters
-
Factory Price RJ45 Ethernet White Network CableUS$ 0.1 - 0.3MOQ: 100 Meters
-
2 Core Speaker CableUS$ 0.10 - 0.10MOQ: 100 Meters
Place of Origin
Chongqing, China
Brand Name
YUFENG
Model Number
BV BVR BVV BVVB RV RVV
Type
Insulated
Application
Overhead
Conductor Material
Copper
Conductor Type
Solid
Insulation Material
PVC
Factory Lowest Price Copper Network Cable 2/4pairs 24AWG UTP Cat5e Cable 305m Wholesale
Specifications
Type:CU/PVC
Color: Red, Yellow, Blue, Green, Purple, Gray, Black, White.
Packaging:100 meters per roll
Certification:CE,CCC,ISO9001,ISO14001,ASG CNAS
Product Description
Specifications
Factory Lowest Price Copper Network Cable 2/4pairs 24AWG UTP Cat5e Cable 305m Wholesale
Cable Construction:
| Item | Conductor AWG | Number Of Pairs | Shielding | Drain Wire | O.D. |

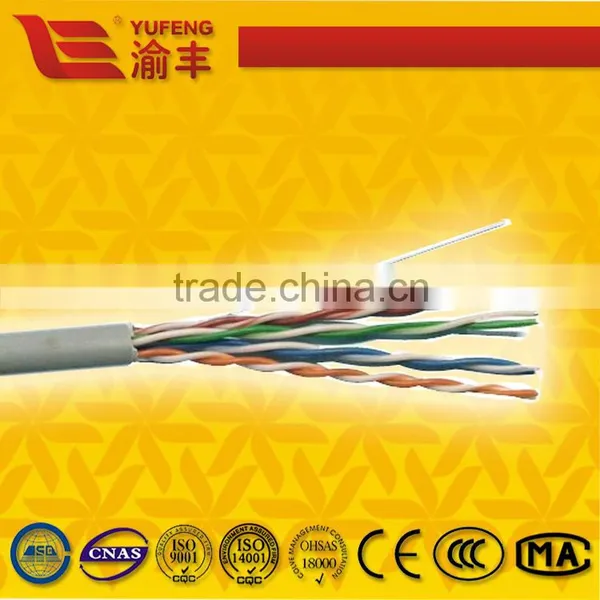

| Cat5e UTP | 24 (0.51mm) | 4 | Non | Non | 5.4mm |

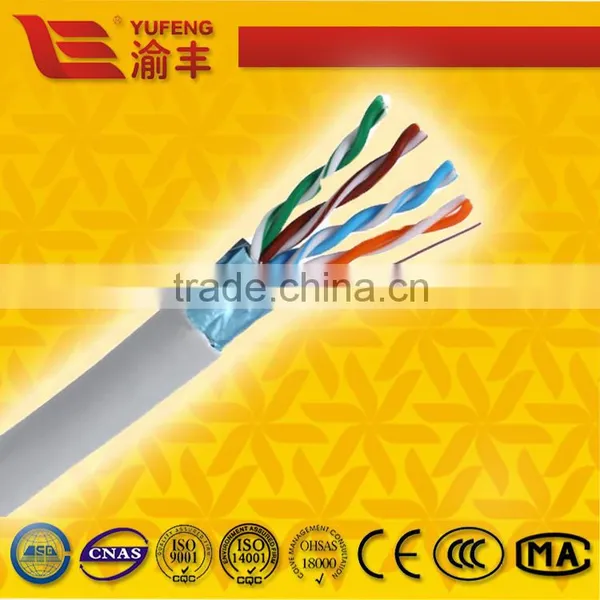

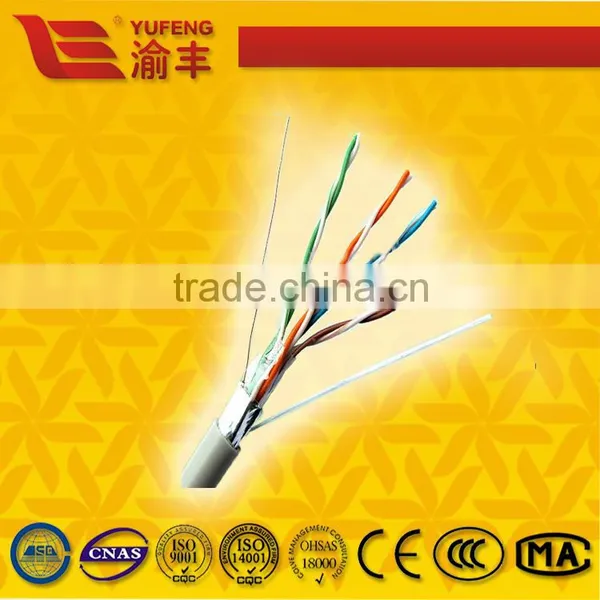

| Cat5e FTP | 24 (0.51mm) | 4 | Aluminum Foil | Yes | 6.0mm |
| Cat5e SFTP | 24 (0.51mm) | 4 | Aluminum Foil + Alloy Braiding | Yes | 6.5mm |
| Electrical Characteristics: | |||
| Property | Value | Units | |
| DC Conductor Resistance Max. | 9.38 | Ω/100m | |
| Resistance Unbalance Max. | 2% | ||
| Mutual Capacitance Nom. | @1kHz | 5.6 | nF/100m |
| Capacitance Unbalance pair/ground Max. | @1kHz | 160 | pF/100m |
| Characteristic Impedance | 0.772 -100 MHz | 100+15 | Ω |
| Maximum Delay Skew | 1.0-100 MHz | 45 | ns/100m |
| Velocity of Propagation | 68% | Speed of Light | |
| Maximum Propagation Delay | 10 MHz | 545 | ns/100m |
