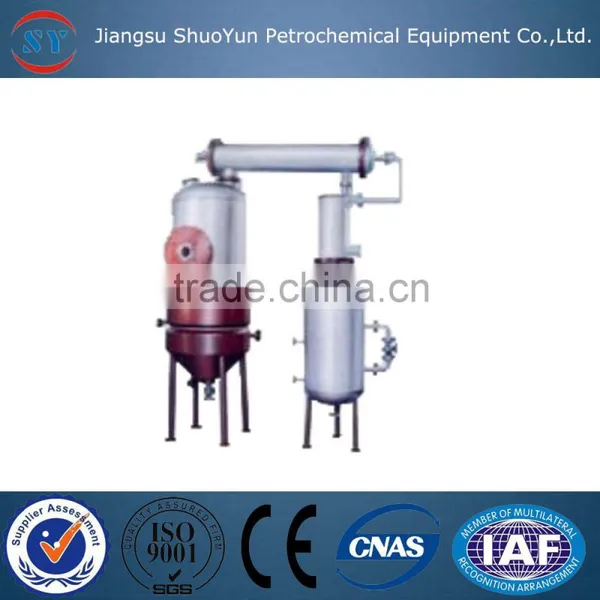

ZN-C new type of concentration tank
Dear Customers:
We have Trade Assurance granted by , which means you will receive 100% refund for all of the orders if the products do not meet your quality requirement or delivery time!
Company Introduction :
Jiangsu Shuo Yun Petrochemical Equipment Co.,Ltd has the aptitude to design and manufacture A-class boiler and A1, A2,A3 type of pressure vessel. We can produce all kinds of metallic pressure vessels that contain reactor pressure vessel, heat exchanger,separator pressure vessel and storage vessel. We have get ASME U stamp and CE. Our company has covered an area of 48000m2, with the workshops of 18 meters high and 130 meters long. At present, the company has an annual output of various pressure vessels of 2500 units , and with the steel materials of 10,000 tons
ZN-C new type of concentration tank Introduction:
1, ZN-C type is a long cylinder concentrate tank;
2,the tope of the tank to overcome the concentration of secondary steam is condensed in the condenser before not returned into the tank disadvantages. This equipment will be replaced by oblique horizontal condenser;
3,to improve the production capacity of the device, the device will be concentrated area of the tank is heated jacket, cooler area had increased to varying degrees;
4,in the lower concentration can set up quick open hand hole, in order to clean the tank residue, residue;
5,ZN-C type is the heating jacket of two or three paragraphs, closed when the upper level low heat to prevent the dry wall. To facilitate its bottom cone bottom drain concentrate.
The main technical parameters of the reference table
project |
ZN-C-200 |
ZN-C-300 |
ZN-C-500 |
ZN-C-700 |
ZN-C-1000 |
evaporation cylinder volume(L) |
250 |
400 |
670 |
890 |
1220 |
by hydraulic cylinder volume(L) |
150 |
240 |
350 |
500 |
760 |
evaporation(kg/h) |
70 |
90 |
115 |
140 |
180 |
steam pressure(MPa) |
<0.3 |
<0.3 |
<0.3 |
<0.3 |
<0.3 |
vacuum degree(kg) |
<60 |
<60 |
<60 |
<60 |
<60 |
heating area(m2) |
1 |
1.4 |
2 |
2.3 |
3 |
condensation area(m2) |
2.5 |
4 |
5 |
7 |
8 |
weight(kg) |
630 |
950 |
1350 |
1700 |
2200 |
device height(mm) |
2600 |
2650 |
3100 |
3270 |
3550 |
equipment covering L*W(mm) |
1900*620 |
2140*850 |
2300*1000 |
2500*1000 |
2750*1150 |
Why Choose us?
1. Famous Brand in the Industry
2. Best Quality Standard, most competitive Price
3. Fast Delivery time, excellent after-sales service for 2 years.
