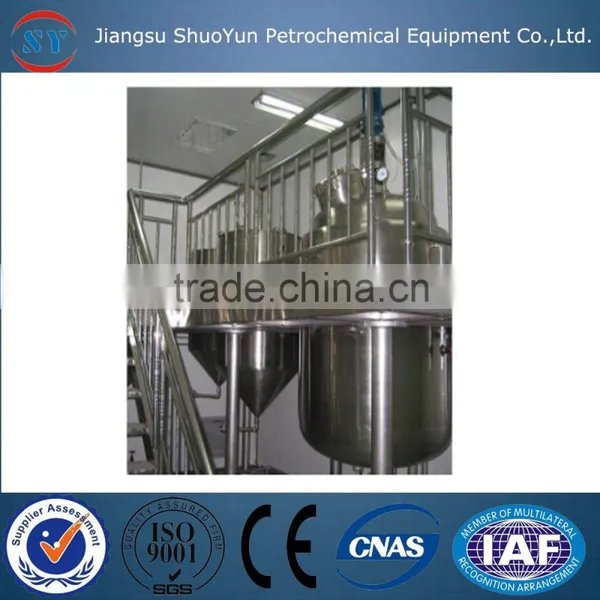

Chinese alcohol precipitation tank
Dear Customers:
We have Trade Assurance granted by , which means you will receive 100% refund for all of the orders if the products do not meet your quality requirement or delivery time!
Company Introduction :
Jiangsu Shuo Yun Petrochemical Equipment Co.,Ltd has the aptitude to design and manufacture A-class boiler and A1, A2,A3 type of pressure vessel. We can produce all kinds of metallic pressure vessels that contain reactor pressure vessel, heat exchanger,separator pressure vessel and storage vessel. We have get ASME U stamp and CE. Our company has covered an area of 48000m2, with the workshops of 18 meters high and 130 meters long. At present, the company has an annual output of various pressure vessels of 2500 units , and with the steel materials of 10,000 tons

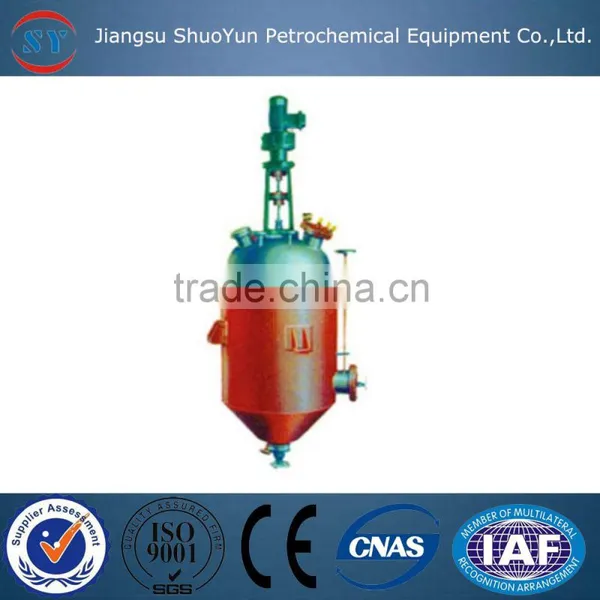

Chinese alcohol precipitation tank Introduction:
Chinese alcohol precipitation tank series is I plant for the pharmaceutical and alcohol precipitation process newly developed special equipment, domestic initiative. The solution was concentrated mainly used for traditional Chinese medicine decoction freeze after ethanol precipitation or temperature operation. Can also be used to concentrate the water sediment Alcohol medicine after the operation. Consists of two models: A type of pneumatic slag, B-type for the ball slag.
Product overview
The main technical parameters of the reference table
project |
JC-300 |
JC-500 |
JC-1000 |
JC-1500 |
JC-2000 |
JC-3000 |
volume(m3) |
0.3 |
0.5 |
1.0 |
1.5 |
2.0 |
3.0 |
heat transfer area(m2) |
1.8 |
3.0 |
4.5 |
6.5 |
7.0 |
9.5 |
operating temperature |
-15~normal temperature |
-15~normal temperature |
-15~normal temperature |
-15~normal temperature |
-15~normal temperature |
-15~normal temperature |
maximum working pressure heat transfer medium(MPa ) |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
working medium working pressure |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
heat transfer coefficient |
150-200 |
150-200 |
150-200 |
150-200 |
150-200 |
150-200 |
mixing power(KW) |
0.75 |
0.75 |
1.5 |
2.2 |
2.2 |
2.2 |
stirring speed(r/min) |
250 |
250 |
160 |
160 |
160 |
140 |
total weight(kg) |
612 |
1260 |
1480 |
1750 |
1670 |
2135 |
Why Choose us?
1. Famous Brand in the Industry
2. Best Quality Standard, most competitive Price
3. Fast Delivery time, excellent after-sales service for 2 years.
