Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Pressure Vessel > High Quality Stainless Steel Reactor

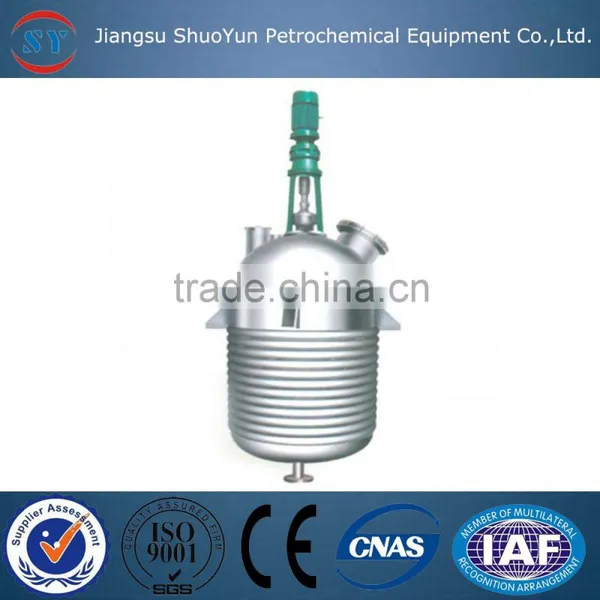

High Quality Stainless Steel Reactor

High Quality Stainless Steel Reactor photo-1

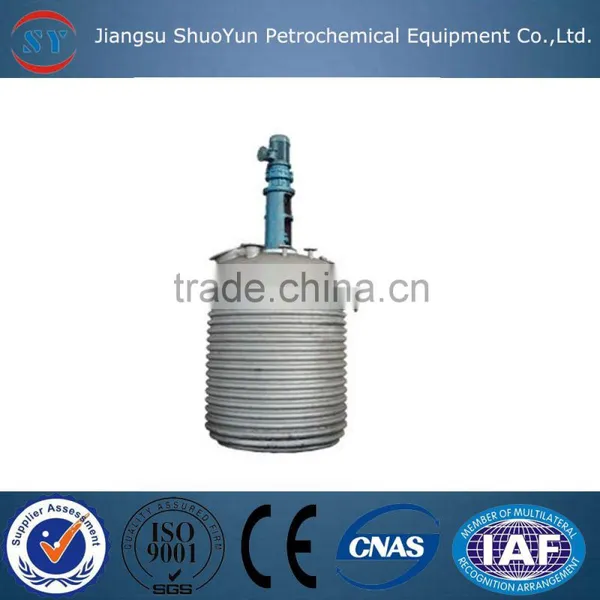

High Quality Stainless Steel Reactor photo-2

US$ 1 - 10,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Contact Supplier Request Quote Chat Now

Jiangsu Shuo Yun Petrochemical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name SY

Model Number as per design

Dimension(L*W*H) as per design

Capacity 30L-80000L

Weight 0.5-50T

After-sales Service Provided Engineers available to service machinery overseas

high quality stainless steel reactor

We have ASME certificates and Chinese pressure vessel design and manufacturing certificates from grade 1 to grade 3

Product overview

Reactor pressure vessel used mainly to complete physical, chemical reaction, for example the reactor, the oxidation reactor, the decomposition reactor, the polymerization, such crystallization reactor. Our company can produce the volume of 80 m³, pressure 10MPa, the weight of a single large reactor 100T’s. Electric heating, steam, oil, infrared, etc.; jacket cooling mode, the outer coil and cooling coil inside the kettle, rpm0 ~ 1000r/min frequency control. Stirring blades can be any optional form according to user requirements. Material can be carbon steel, stainless steel, titanium, aluminum, dual-phase steel and composite materials.

The seal in the form of the reactor can be divided into: packing seal, mechanical seal and magnetic seal.

According to the manufacturing structure of the reactor can be divided into flat lid open reactor, open butt Dafa blue reactor and closed reactor into three categories, each structure has its scope and the advantages and disadvantages.

Stainless steel reactor main technical parameters

specification(L)	nominal diameter(ψmm)	jacket diameter(ψmm)	motor power(KW)	reducer model	stirring speed(r.p.m)
30	400	500	0.6	BLD 0.6-1	60-100
50	500	600	0.8	BLD 0.8-1	60-100
100	550	65	1.1	BLD 1.1-1	60-100
150	600	700	2.2	BLD 2.2-2	60-100
200	650	750	2.2	BLD 2.2-2	60-100
300	800	900	3	BLD 3-2	60-100
500	900	1000	3	BLD 3-2	60-100
800	1100	1200	4	BLD 4-2	60-100
1000	1200	1300	4	BLD 4-3	60-100
1500	1300	1400	4	BLD 4-3	60-100
2000	1400	1500	5.5	BLD 5.5-3	60-100
2500	1400	1500	7.5	BLD 7.5-4	60-100
3000	1400	1500	7.5	BLD 7.5-4	60-100
3500	1400	1500	7.5	BLD 7.5-4	60-100
4000	1500	1600	7.5	BLD 7.5-4	60-100
5000	1600	1700	7.5	BLD 7.5-4	60-100
6000	1800	1900	15	BLD 15-5	60-100
18000	2000	2100	15	BLD 15-5	60-100
32000	3000	3200	37	BLD 37-56A	35-59
80000	4000	4200	55	BLD 55-56A	35-59
