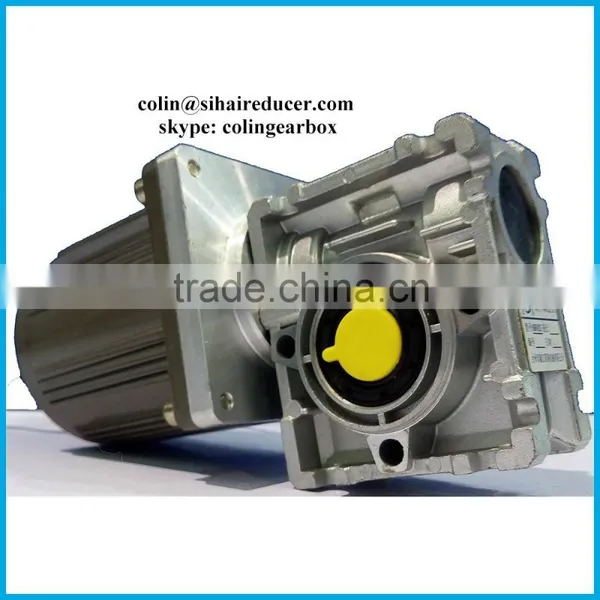

NMRV025 Series Worm Gearbox Type With Low Power Ac Motor

NMRV025 Series Worm Gearbox Type With Low Power Ac Motor thumbnail-1
NMRV025 Series Worm Gearbox Type With Low Power Ac Motor thumbnail-2
NMRV025 Series Worm Gearbox Type With Low Power Ac Motor photo-1

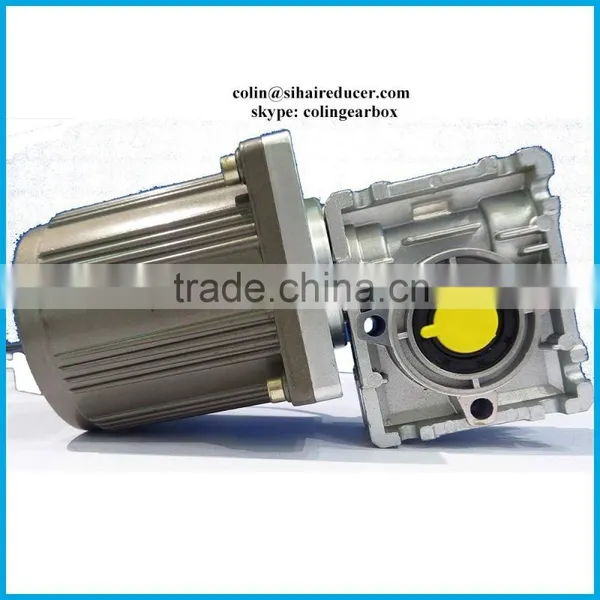

NMRV025 Series Worm Gearbox Type With Low Power Ac Motor photo-2
US$ 25 - 40 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Chenxin
Model Number:
NMRV025
Contact Supplier Request Quote Chat Now
Taizhou Sihai Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo Port/ Shanghai Port/ DHL/ UPS/ TNT/ FedEX
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Chenxin
Model Number NMRV025
Gearing Arrangement Worm
Output Torque 1.8~16N.M
Rated Power 0.06~0.09kw
Input Speed 1400rpm
Output Speed 24~280rpm

Characteristics:

The Speed reducer motor features

(1) Large output torque

(2) Safe, reliable, economical and durable
(3) Stable transmission, quiet operation

(4) High heat-radiating efficiency, high carrying ability
(5) Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio







NMRV025 series Worm gearbox type with low power Ac motor

NMRV025 series Worm gearbox type with low power Ac motor

Performance parameter for RV series worm gear speed reducer

Motor power  Model speed ratio output speed output toruqe

0.06kw

1400rpm

 NMRV025 5 280rpm  1.8N.M
NMRV025 7.5 186rpm  2.6N.M
NMRV025 10 140rpm  3.4N.M
NMRV025 15 94rpm  4.9N.M
NMRV025 20 70rpm  6.1N.M
NMRV025 25 56rpm  7.5N.M
NMRV025 30 47rpm  8.2N.M
NMRV025 40 35rpm 10.2N.M
NMRV025 50 28rpm 12.0N.M
NMRV025 60 24rpm 14.0N.M

0.09kw

1400rpm

 NMRV025 5 280rpm  2.7N.M
NMRV025 7.5 186rpm  3.9N.M
NMRV025 10 140rpm  5.1N.M
NMRV025 15 94rpm  7.3N.M
NMRV025 20 70rpm  9.3N.M
NMRV025 25 56rpm 11.0N.M
NMRV025 30 47rpm 13.0N.M
NMRV025 40 35rpm 16.0N.M








The speed reducer NMRV025 Accessories outline dimension

 NMRV025 series Worm gearbox type with low power Ac motor



K1

G

KG

KH

R

NMRV025

70

 14

17.5

8

15







Speed reducer Size of Single Extension & Double extension

NMRV025 series Worm gearbox type with low power Ac motor



D(h6)

B

B1

G1

L

L1

f

b1

 t1

NMRV025

11

23

25.5

50

81

101

--

4

12.5







The NMRV025 speed reducer Motor - Double extension worm shaft

NMRV025 series Worm gearbox type with low power Ac motor



G2

d(j6)

B

F

b1

t1

NMRV025

37

9

20

--

3

10.2







The NMRV025 speed reducer Motor

NMRV025 series Worm gearbox type with low power Ac motor



IEC Motor adapters

Model

PAM(IEC)

N

M

P

ration

Shaft:D

NMRV025

 56B14



 50 65 80 5~60 9





  The NMRV025 speed reducer Motor - Mounting positions

NMRV025 series Worm gearbox type with low power Ac motor
