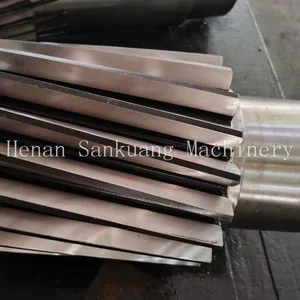

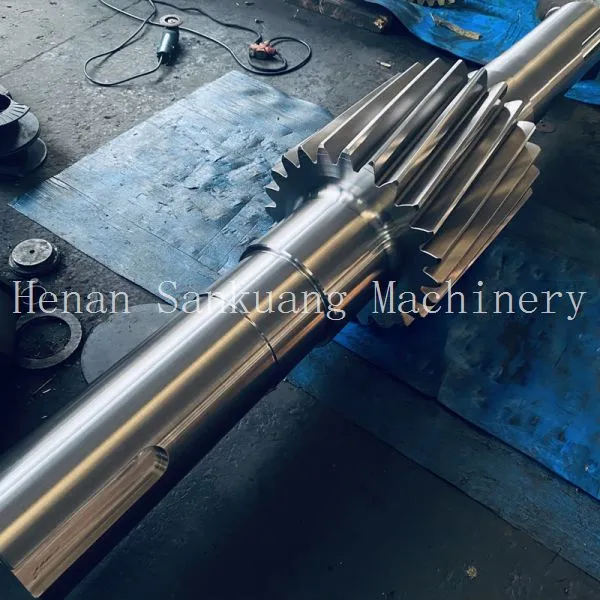

Direct Replacement Transmission Gear Shaft With Technical Support
Product Spotlights
Precision direct replacement transmission gear shaft engineered for drop-in installation, eliminating machining or modification. Made from hardened alloy steel with exact OEM spline profiles and tooth geometry. Backed by dedicated technical support from a 10,000+ m² factory with ISO9001 certification. Available in various sizes and surface treatments, with fast global shipping from Shanghai, Qingdao, and other ports. Reduce downtime and extend equipment life with a reliable, cost-effective solution.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Hardness:
Other, HRC 58-62 (carburized) or HRC 45-50 (induction hardened)
Application:
Other, Automotive transmissions
Material:
Alloy Steel (20CrMnTi, 40Cr, etc.)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Precision Gear Shaft Machining | Custom Gear Shaft Manufacturer - Henan Sankuang MachineryNegotiableMOQ: 1 Set -
Precision Gear Shaft for Heavy Duty Applications - 42CrMo Alloy SteelNegotiableMOQ: 1 Unit
-
Custom Gear Shaft Solutions - Engineering Support AvailableNegotiableMOQ: 1 Unit
-
Heavy Duty Transmission Gear Shaft - 1000Nm Torque CapacityNegotiableMOQ: 1 Unit
-
Hardened Gear Shaft With 0.005mm Tolerance - CNC MachinedNegotiableMOQ: 1 Unit
Hardness
Other, HRC 58-62 (carburized) or HRC 45-50 (induction hardened)
Application
Other, Automotive transmissions
Material
Alloy Steel (20CrMnTi, 40Cr, etc.)
Surface Treatment
Black oxide, phosphating, or as requested
Spline Type
Involute, straight-sided, or custom
Tooth Count
Customizable (e.g., 10-50 teeth)
Length Range
200 mm – 1500 mm
Diameter Range
20 mm – 200 mm
Certification
ISO9001, ISO14001, OHSAS18001, and others available
Technical Support
Free design consultation, online/offline assistance
As a direct replacement transmission gear shaft manufacturer from Henan San Kuang Machinery Technology Co., Ltd. (established 2014, with a 10,000-30,000 m² factory and 51-100 skilled employees), we offer precision-engineered gear shafts that match or exceed OEM specifications. Our products are designed for seamless drop-in installation, eliminating the need for modifications. With annual export value exceeding US$2.5 million and serving markets across North America, Europe, Asia, and Africa, we provide reliable components backed by dedicated technical support.
Key Features & Technical Specifications
- Direct Replacement: Manufactured to exact OEM dimensions, spline profiles, and tolerances, ensuring perfect fit without adapters.
- Premium Materials: Made from high-strength alloy steels (20CrMnTi, 40Cr, 42CrMo) with carburizing or induction hardening for superior wear resistance.

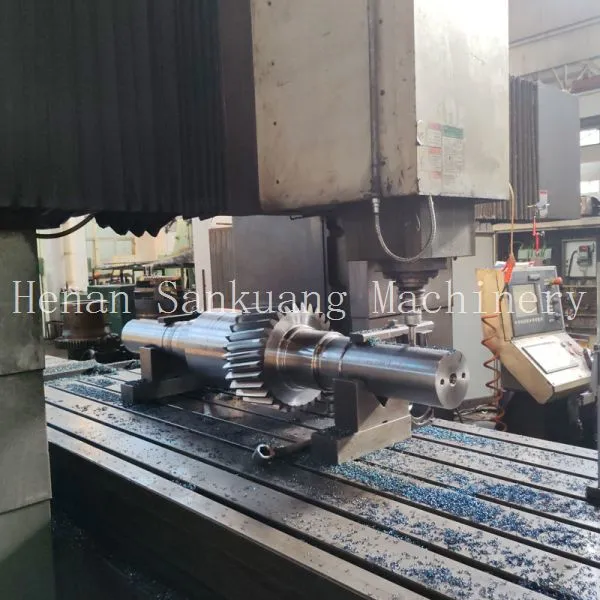

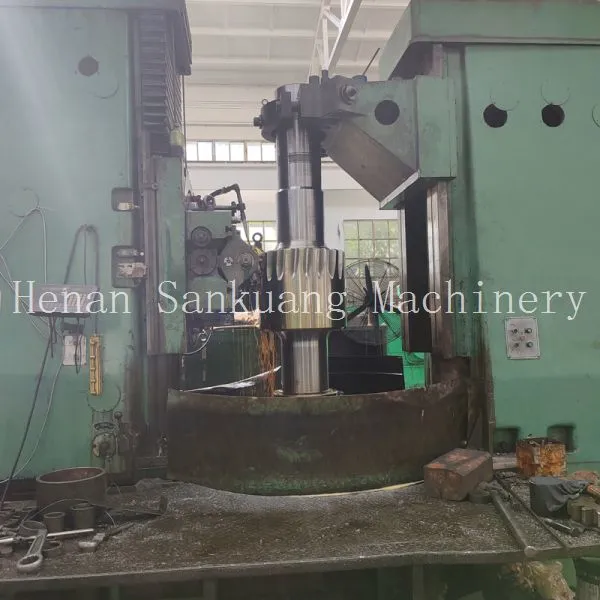

- Precision Machining: CNC turning, hobbing, shaving, and grinding achieve gear quality up to DIN 6-7 (AGMA Q8-Q10).
- Surface Treatments: Black oxide, phosphating, or zinc plating for corrosion protection; shot peening optional for fatigue life.
- Technical Support: Our engineering team assists with shaft selection, custom modifications, and installation guidance via phone, email, or on-site visits.
- Quality Assurance: 100% dimensional inspection, magnetic particle testing, and hardness checks per ISO9001:2015 certified processes.
Available Parameters (Table)
| Parameter | Standard Range |
|---|---|
| Material Hardness | HRC 58-62 (case-hardened) or HRC 45-50 (through-hardened) |
| Spline Type | Involute (DIN 5480, ANSI B92.1), straight-sided, serrated, or custom |
| Tooth Count | 10 – 50 teeth (depending on module) |
| Shaft Diameter | 20 mm – 200 mm |
| Overall Length | 200 mm – 1500 mm |
| Gear Quality Grade | DIN 6-7 (AGMA Q8-Q10) |
| Surface Treatment | Black oxide, phosphating, zinc plating, or as specified |
| Certification | ISO9001, ISO14001, OHSAS18001, and others (HACCP, TL900, QS9000, SA8000 available upon request) |
Why Choose Our Direct Replacement Gear Shafts?
- Reduced Downtime: Drop-in design means less time replacing worn shafts; no need for rework or custom fitting.
- Extended Service Life: Optimized heat treatment and surface finishing improve fatigue resistance compared to many standard replacements.
- Cost-Effective: Competitive pricing without sacrificing quality – backed by our own factory and bulk raw material sourcing.
- Expert Technical Support: Our engineers (average 10+ years experience) help you choose the right shaft, troubleshoot installation, or design custom modifications.
- Global Logistics: Shipped from ports of Shanghai, Lianyungang, Qingdao, or Tianjin with reliable freight partners.
We have served over 200 clients in 30+ countries, with many repeat orders for transmission components. Our factory holds multiple certifications (ISO9001, ISO14001, OHSAS18001, and others) and we continuously invest in advanced CNC equipment and testing facilities. Contact us today for a free quotation or technical consultation – we can provide sample parts for evaluation within 15-20 working days. Let our expertise ensure your machinery runs smoothly with a direct replacement transmission gear shaft that fits perfectly and performs reliably.
Frequently Asked Questions (FAQ)
-
Q: How do I know if this shaft is a direct replacement for my existing one?
A: Send us your old shaft or drawing (including spline dimensions, length, diameter, and tooth count). Our engineers will verify compatibility and produce a matching shaft with no modifications needed. -
Q: What is the typical lead time for custom orders?
A: Standard lead time is 20-30 working days for small batches (1-10 pcs). For larger quantities, we can negotiate faster delivery. Samples may be available sooner. -
Q: Do you offer heat treatment and surface coating?
A: Yes. We provide carburizing, induction hardening, black oxide, phosphating, and other treatments. Please specify requirements in your inquiry. -
Q: Can I get a test sample before placing a bulk order?
A: Absolutely. Sample orders are welcome. We can produce 1-2 pieces for your evaluation, with the cost deducted from future bulk orders. -
Q: What is the minimum order quantity (MOQ)?
A: MOQ is generally 1 piece for samples, and 10-50 pieces for production. However, we are flexible for new customers. -
Q: How do you ensure quality control?
A: We follow ISO9001:2015 procedures. Each shaft undergoes 100% dimensional inspection, hardness testing, and magnetic particle inspection. A test report is provided with shipment. -
Q: Do you provide technical drawings or 3D models?
A: Yes. We can supply 2D drawings and 3D models (STEP/IGES) for your approval before production. Our technical support team can also assist with reverse engineering. -
Q: What payment terms do you accept?
A: We accept T/T, L/C, Western Union, and others. For first orders, we typically require 30% deposit and 70% balance before shipment.
