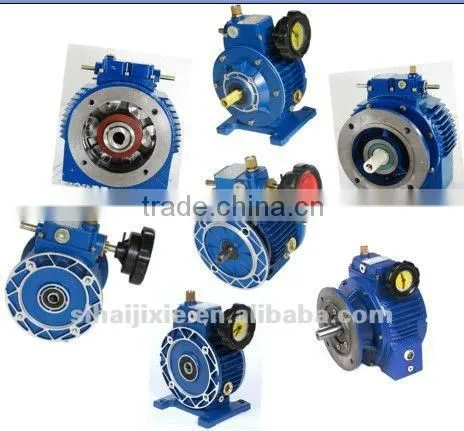

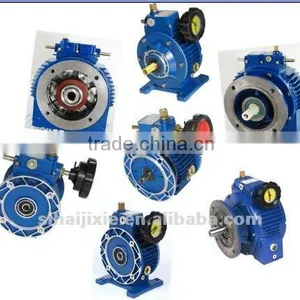

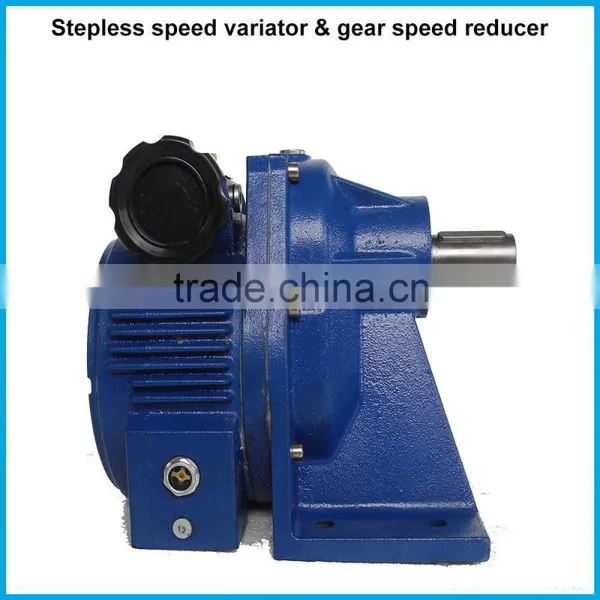

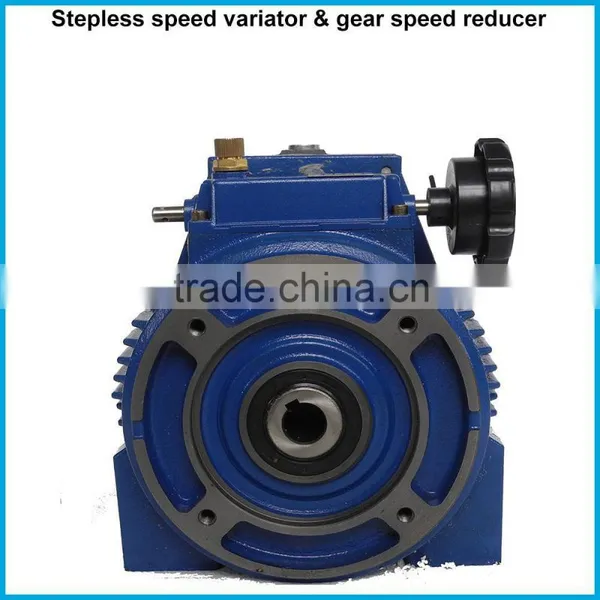

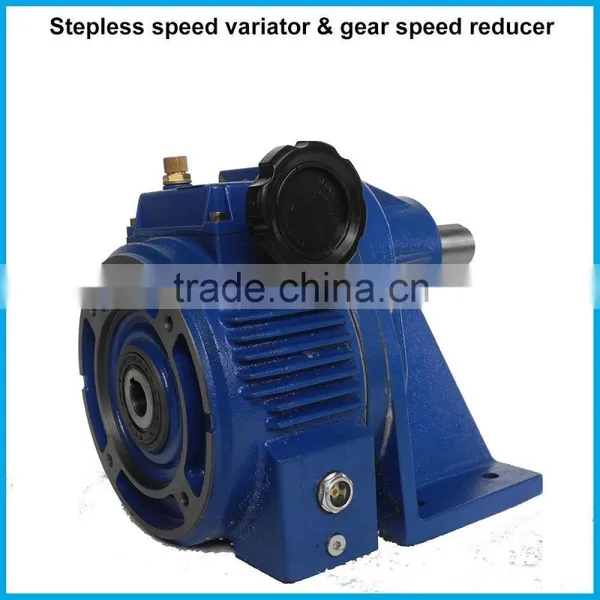

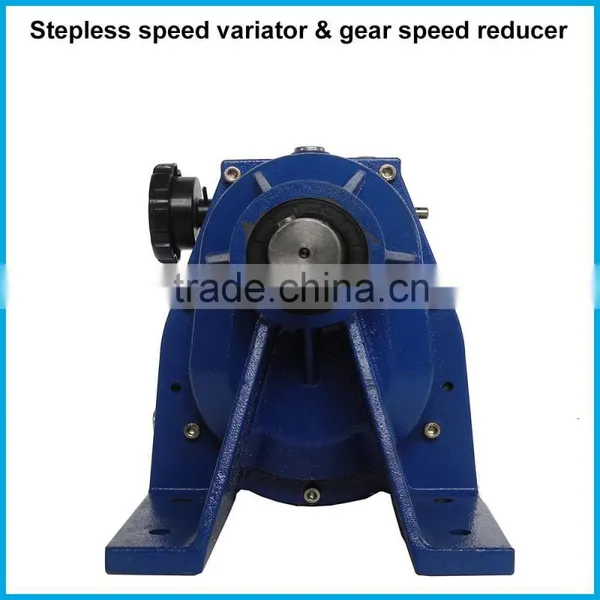

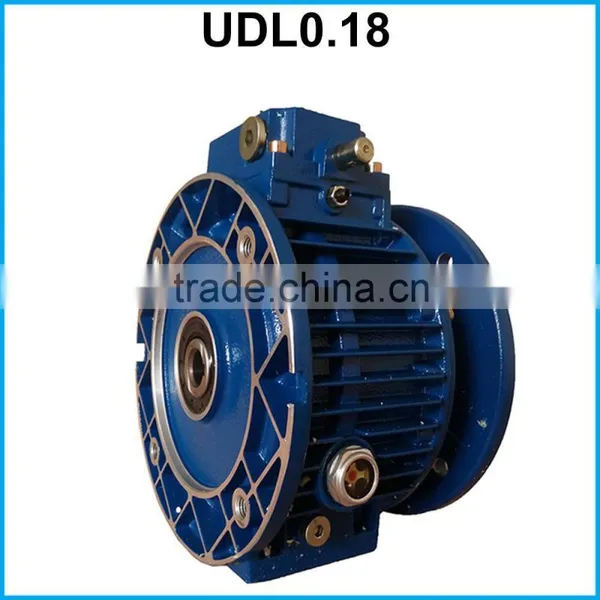

Help CenterUDL Series Industrial Mechanical Variable Planet Cone Disk Stepless Speed Variator
Related Products
-
Helical Gear Unit Prestage Helical Geared Units PC Helical Gearbox Coupling to Electric MotorUS$ 33.5 - 46.8MOQ: 1 Piece -
UDL Motor Speed Variator for Power Transmission GearboxesUS$ 22 - 300MOQ: 1 Piece
-
UDL Motor Stepless Speed VariatorUS$ 22 - 300MOQ: 1 Piece
-
UDL 0.37 Motor Speed VariatorUS$ 22 - 300MOQ: 1 Piece
-
UDL Motor Speed Variator Motor Speed ReducerUS$ 22 - 300MOQ: 1 Piece
Feature:
1) High precision of speed regulating for speed variator,UD gear box: up to 0.5-1 round
2) Large speed-changing range: the speed ratio ranges from 1:1.4 to 1:7 freely
3) High intensity and long serving time
4) Convenient to regulate speed
5) Continuously workable, bidirectional working direction,smooth running,
stable, and quiet
6) Fully sealed and suitable to any environment
7) Compact structure, small size
8) High quality aluminum alloy die-cast, elegant shape, light weight and non-rusting
9) Good adaptability: can be combined with all kinds of reducers to achieve low
stepless speed changing
10) Input power: 0.18-7.5kW
Operation&Maintenance:
(1) The shapes of shaft extension are all cylindrical.
(2) The shaft lines should be kept concentric when the coupling with a motor.
(3) The mechanical stepless speed variator is not used in such an occasion when overload or running-blockage happen to occer.
(4)Liquid lubricating oil is used for the speed variator, variator is filled with lubricating oil before leaving the factory.
Outline & installation size for basic model:
