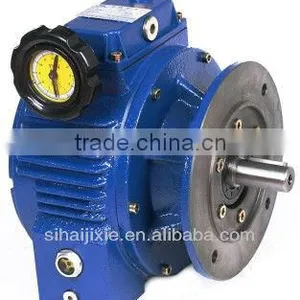

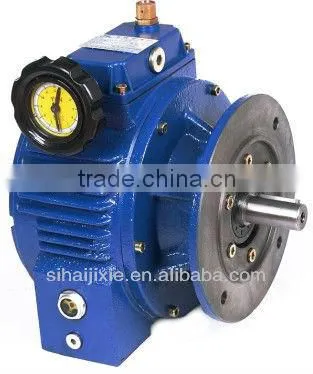

UDL Motor Stepless Speed Variator
US$ 22 - 300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Chenxin
Model Number:
UDL0.18-UD7.5
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UDL 0.37 Motor Speed VariatorUS$ 22 - 300MOQ: 1 Piece -
UDL Motor Speed Variator Motor Speed ReducerUS$ 22 - 300MOQ: 1 Piece
-
Aluminumn UDL Motor Speed Variator Adjust SpeedUS$ 22 - 300MOQ: 1 Piece
-
UDL Motor Speed Variator Adjust for Motor Speed Adjust SpeedUS$ 22 - 300MOQ: 1 Piece
-
Vibrator Motor UDL Series Industrial Mechanical Variable Stepless Speed VariatorUS$ 22 - 300MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Chenxin
Model Number
UDL0.18-UD7.5
Gearing Arrangement
Worm
Output Torque
1.5-118N.M
Rated Power
0.18KW-7.5KW
Input Speed
1400R/M
Output Speed
1000-200R/MIN
Features:
1) High precision of speed regulating for speed variator,UD gear box: up to 0.5-1 round
2) Large speed-changing range: the speed ratio ranges from 1:1.4 to 1:7 freely
3) High intensity and long serving time
4) Convenient to regulate speed
5) Continuously workable, bidirectional working direction,smooth running,
stable, and quiet
6) Fully sealed and suitable to any environment
7) Compact structure, small size
8) High quality aluminum alloy die-cast, elegant shape, light weight and non-rusting
9) Good adaptability: can be combined with all kinds of reducers to achieve low
stepless speed changing
10) Input power: 0.18-7.5kW
| Power | Model | I | n2(r/min) | M2(NM) |
| 0.18kw | UDL0.18 | 1.6-8.2 | 880-170 | 1.5~3 |
| 0.37kw | UDL0.37 | 1.4-7 | 1000-200 | 3~6 |
| 0.55kw | UDL0.55 | 1.4-7 | 1000-200 | 4~8 |
| 0.75kw | UDL0.75 | 1.4-7 | 1000-200 | 6~12 |
| 1.1kw | UD1.1 | 1.4-7 | 1000-200 | 9~18 |
| 1.5kw | UD1.5 | 1.4-7 | 1000-200 | 12~24 |
| 2.2kw | UD2.2 | 1.4-7 | 1000-200 | 18~36 |
| 3kw | UD3 | 1.4-7 | 1000-200 | 24~48 |
| 4kw | UD4 | 1.4-7 | 1000-200 | 32-64 |
