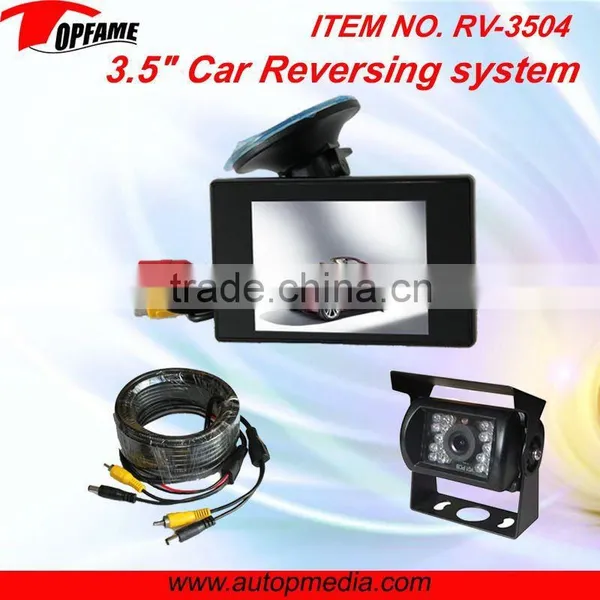

Help CenterRV-3504 3.5inch Car Back up Camera System With Metal Wiredrawing Surface Processing Monitor&night Vision Camera
Related Products
-
TOPFAME RV-3503 3.5inch Backup Camera System With 3.5" Metal Wiredrawing Surface Monitor&night Vision CameraUS$ 1 - 45MOQ: 10 Sets -
RV-7032 7inch Car Parking System With 7inch LCD Monitor&backup CameraNegotiableMOQ: 50 Sets
-
RV-7023Car Reversing System With 7inch LCD Monitor&backup CameraUS$ 41 - 50MOQ: 10 Sets
-
RV-3502 Smart Car Rear View Parking System With 3.5inch Digital Screen MonitorNegotiableMOQ: 10 Sets
-
RV-7015 Car Rear Vision System With 7inch TFT LCD MonitorNegotiableMOQ: 50 Sets
Specifications
RV-3504 Car backup system3.5 inch digital screen
120 field view color camera
3.5" car back up system with digital screen monitor
Rear view monitor
3.5inch digital LCD monitor
Resolution: 960(h)X240(v)
View angle: U 40 / D 50 /L 55 / R55
TV system: PAL/NTSC auto-switch
Power:DC 12V± 10% 1-3W
Ratio: 4:3
Video input: VI/V2 (V2 auto reverse)
Operation Temp.: +5°C- +40°C
Storage Temp.:-20°C - +60°C
Color: black
Display: black screen when no signal input
Dimension(L)*(H)*(D): 108*69*15MM
Net weight: 122g
Optional:
2 video input optional
With menu button optional
Back Camera
Image Sensors: 1/4", 1/3" OV7950, OV7949, 1030
TV System:NTSC/PAL
waterproof rate:Ip67
Effective Pixels:656×492 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2
Pin Lens:f=1.8mm / F = 2.0
Lens Angle:120°/170°
Vertical Sync. Frequency:60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC12V
Current Consumption:≤120mA
Electronic Shutter:1/60 ~ 1/10,000 Seconds
Gamma Consumption:0.45
S/N Ratio:Better than 48Db
Scanning System:2:1Interlace
Operating Temperature:-20°C~70°C ,RH95% MAX
Storage Temperature:-40°C~85°C ,RH95% MAX
- Package Included:
3.5inch digital LCD monitor x 1
Bracket x 1
Color CMOS camera x 1
6M video cable x 1 - Options:
professional DC11-32V optional
8M, 10M, 15M, 20M cable optional
1/3" SONY CCD camera optional
1/4" SHARP CCD camera optional
