Specifications
* RV-3502 Smart Car rear view Parking system* With 3.5 inch digital TF LCD monitor
* Back Camera with 20m Cable

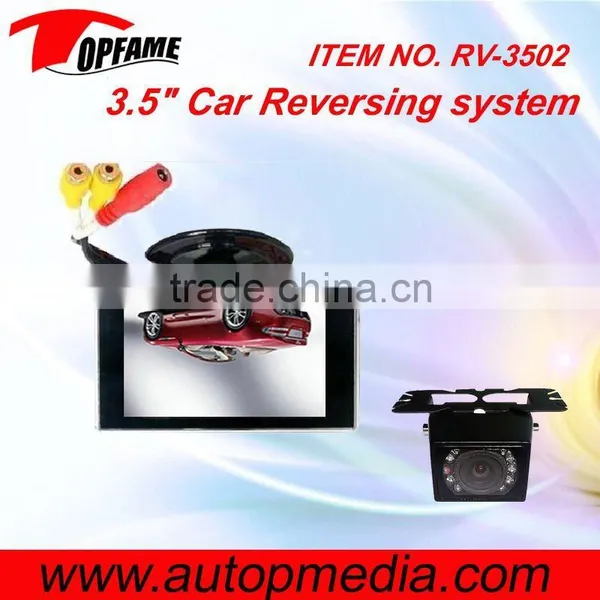

Smart Car rearview Parking system with 3.5inch digital screen
Digital LCD Monitor

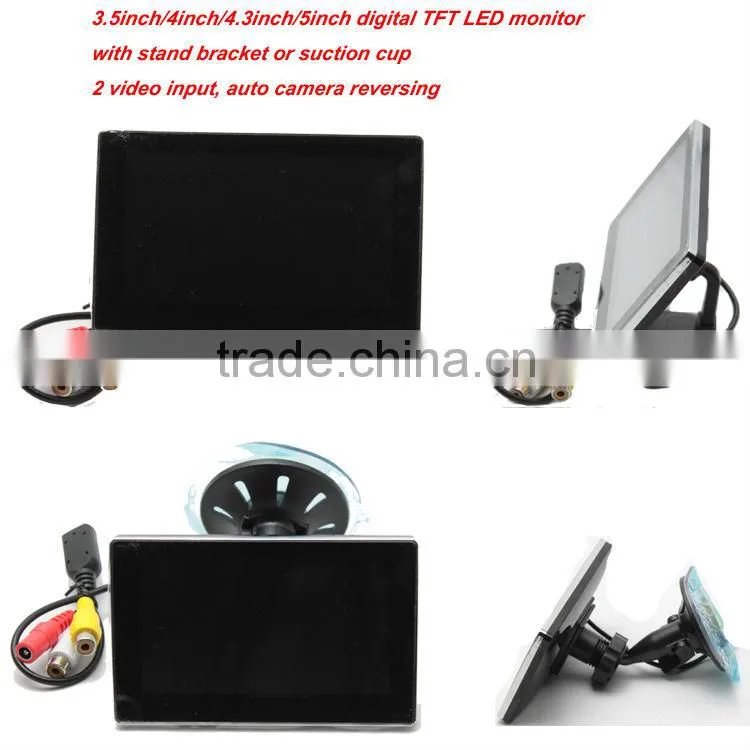

3.5inch digital TFT LCD monitor
Resolution: 960(h)X240(v)
View angle: U 40 / D 50 /L 55 / R55
TV system: PAL/NTSC auto-switch
Power:DC 12V± 10% 1-3W
Ratio: 4:3
Video input: VI/V2 (V2 auto reverse)
Operation Temp.: +5°C- +40°C
Storage Temp.:-20°C - +60°C
Color: black
Display: black screen when no signal input
Dimension(L)*(H)*(D): 108*69*15MM
Net weight: 122g
Optional:
2 video input optional
With menu button optional
Camera
Image Sensors: 1/4", 1/3" OV7950, OV7949
TV System:NTSC
waterproof rate:Ip67
Effective Pixels:656×492 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2
Pin Lens:f=1.8mm / F = 2.0
Lens Angle:120°/120°
Vertical Sync. Frequency:60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC12V
Current Consumption:≤120mA
Electronic Shutter:1/60 ~ 1/10,000 Seconds
Gamma Consumption:0.45
S/N Ratio:Better than 48Db
Scanning System:2:1Interlace
Operating Temperature:-20°C~70°C ,RH95% MAX
Storage Temperature:-40°C~85°C ,RH95% MAX
Dimension:15x35X28mm
Weight:50g
