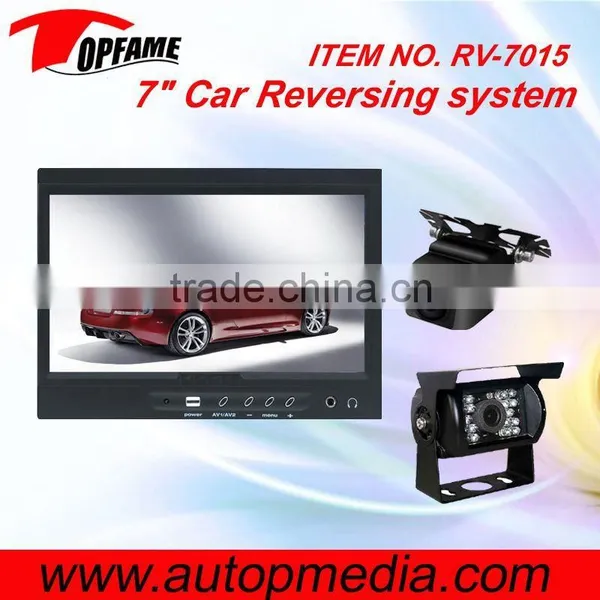

RV-7015 Car Rear Vision System With 7inch TFT LCD Monitor

RV-7015 Car Rear Vision System With 7inch TFT LCD Monitor thumbnail-1
RV-7015 Car Rear Vision System With 7inch TFT LCD Monitor photo-1
Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Car rear view system
Voltage:
DC 12V
Power:
4W
Contact Supplier Request Quote Chat Now
Shenzhen Top Fame Electronics Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN/HK EXW
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Car rear view system
Voltage DC 12V
Power 4W
Car Make universal
Place of Origin Guangdong, China
Brand Name OEM&ODM welcome
Model Number RV-7015

Specifications

RV-7015 Car rear vision system
7 inch TFT LCD monitor
Front camera with 170 view
Back Camera with night vision

RV-7015 Car Rear vision system various vehicles

Car TFT LCD Monitor SPEC

7" TFT-LCD MONITOR
Ratio: 16:9 /4:3
Pixel: 480*234
System: PAL/NTSC auto switch
Video input: 2 way
Audio input: 1 way
Backup: V2 auto reverse
View angle: U/D/L/R
Adjustable image brightness/color/contrast
built-in speaker
With remote control and OSD menu
Power supply: DC12V (DC24V optional)
Current: 0.7A
Luminance: 300-400/m2
Operating temp.:-10°C ~ 60°C
Device size:171*125*19mm(W/H/D)
weight: 550g
Installation: (stand bracket, Air-contditioner Vent, headrest, Z-clip optional)
Accessories: remote control 1 pc, cable 1 pc
headrest frame, universal stand



Front Camera
Image Sensors: 1/4"OV7950 / 1/3"0V7949
TV System:PAL/NTSC
waterproof rate:Ip67
Effective Pixels:656×492 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2
Pin Lens:f=1.8mm / F = 2.0
Lens Angle:170°
Vertical Sync. Frequency:60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC12V
Current Consumption:≤120mA
Electronic Shutter:1/60 ~ 1/10,000 Seconds
Gamma Consumption:0.45
S/N Ratio:Better than 48Db
Scanning System:2:1Interlace
Operating Temperature:-20°C~70°C ,RH95% MAX
Storage Temperature:-40°C~85°C ,RH95% MAX
Dimension:30x20X25mm
Weight:50g



Back camera
ImageSensors:-1/3",1/4" CMOS
TV System:PAL / NTSC
waterproof rate:Ip67
Effective Pixels:512 x 582 pixels / 512 x 492 pixels
752x582 pixels / 768×494 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2  0.2Lux / F1.2 (0Lux IR ON)
Pin Lens:f=2.8mm / F = 2.0
Lens Angle:120°
Vertical Sync. Frequency:50Hz / 60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC12V
Current Consumption:≤300mA
Electronic Shutter:1/60 ~ 1/10,000 Seconds
Gamma Consumption:0.45
S/N Ratio:Better than 48Db
Scanning System:2:1Interlace
Operating Temperature:-20°C~70°C ,RH95% MAX
Storage Temperature:-40°C~85°C ,RH95% MA
Dimension:40(W)X52(D)X60(H)MM
Weight:150g



Optional:

5A/10A DC 24-12V power transformer optional

with other style camera optional



Packaging included:

  • 7inch LCD monitor x 1
  • Remote control x 1
  • Metal Bracket x 1
  • Color CMOS camera x 2
  •  6M video cable for front camera x 1
  • 15M video cable for back camera x 1
