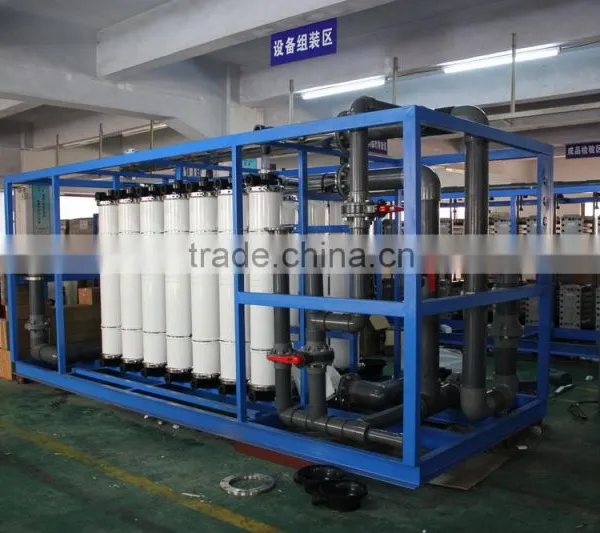

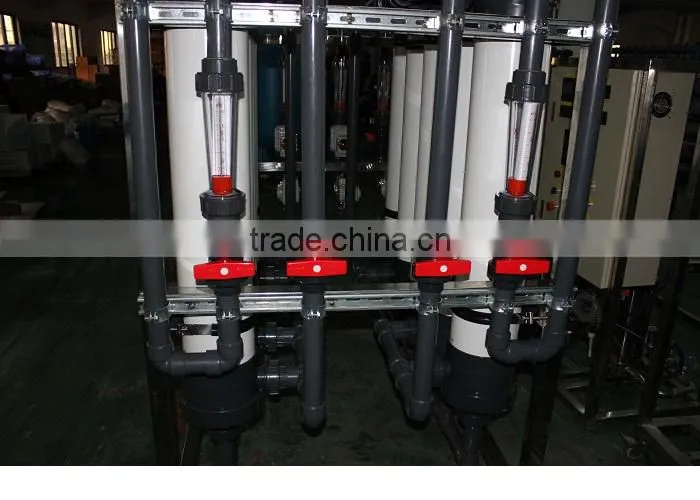

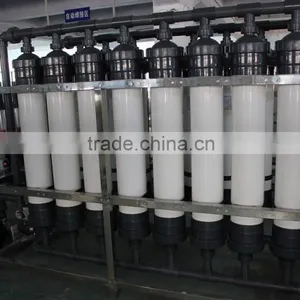

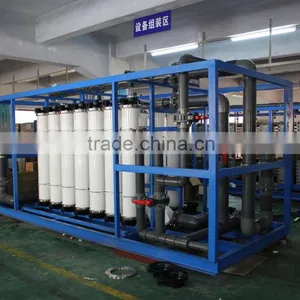

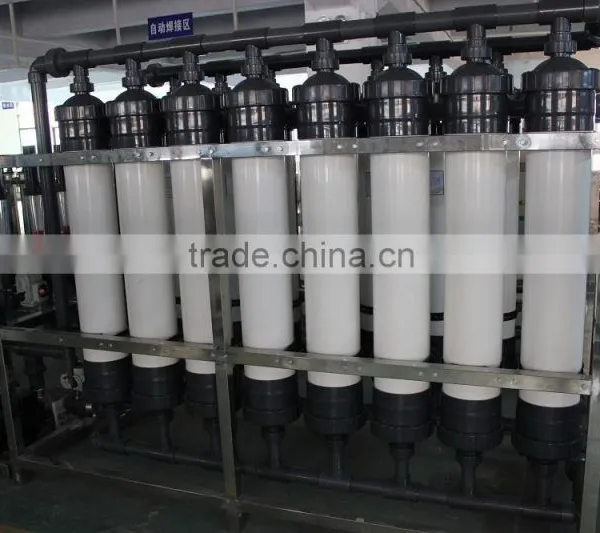

1.Description of UF membrane purifier water filter water plant
UF system is composed of high-pressure pump, UF system and chemical cleaning device.
During running, UF membrane may form some deposit and chemical cleaning device is equipped for periodical cleaning to ensure stable running of UF system.
High-pressure pump is the power source of UF system. To UF system on sound running condition, high-pressure pump equips inlet/outlet pressure switch. When inlet pressure is less than set value (water lack P‰¤ 0.05Mpa) or outlet pressure is higher than set value, pressure switch send signal to PLC programming system and high-pressure pump and UF system will stop in avoidance of destroying to UF membrane because of water pressure.
UF system can wash surface of UF membrane by low-pressure timely and periodically.
Model |
CET3-0650-V |
CET3-1060-V |
Filtration model |
Inside-out |
Inside-out |
Designed water flux (m3/h) |
0.6~1.6 |
2.4~6.4 |
Designed water flux (L/m2/h) |
60~160 |
|
Filtration water turbidity |
<0.1NTU |
|
General coliform group separation |
No detection in each 100 ml water sample |
|
Feces coliform group separation |
No detection in each 100 ml water sample |
|
Bacteria separation |
No detection in each 1 ml water sample |
|
Standard membrane area (m2) |
11 |
40 |
Hollow fiber amount (unit) |
3940 |
11000 |
Net weight (kg) |
18 |
37 |
Wet weight (kg) |
26 |
58 |
Module dimensions (mm) |
187x1398 |
277x1715 |
Membrane type |
Double layer hollow fiber |
|
Filter membrane material |
Approved PVC |
|
Membrane housing material |
PVC |
|
Material of enveloping glue on ends |
Epoxy resin |
|
Molecular weight cutoff |
50,000 Daltons |
|
Inside/outside diameters of hollow fiber (mm) |
1.0 /1.6 |
|
2.Application of UF membrane purifier water filter water plant
1) Industrial water &waste water treatment
2) commercial water &waste water treatment
3) water treatment plants
4) pretreatment of RO&DI systems.
5)Tap water filtration for whole house/Office
6) Drinking water and mineral water treatment for Home/Office
7) Underground water treatment
8) Pharmaceutical industries
9) Surface water treatment i. e rural & municipal
3.Feature of UF membrane purifier water filter water plant
| 1 Uses automatic control and semi-control .Pretreatment parts can adopt stainless steel material. |
| 2 Protected when no power, poor power, larger electrical current, leakage, short circuit. |
| 3 This water treatment system is compact, easy installation. |
| 4 This water treatment system equipped with PLC and touch screen control;and remote login .(Siemens PLC and Touch screen or Mitsubish PLC and tourch) This parts is optional. |
| 5 Produce as per ISO and SGS standard and main parts accessories have obtained CE certification |
