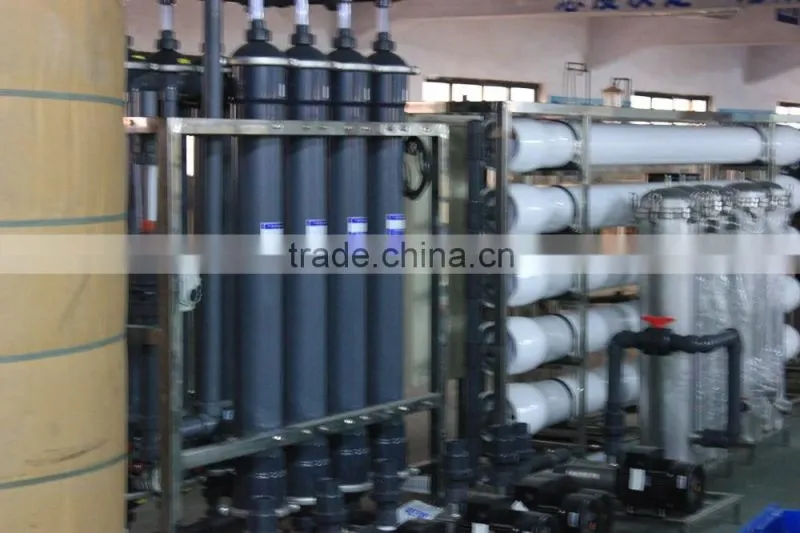

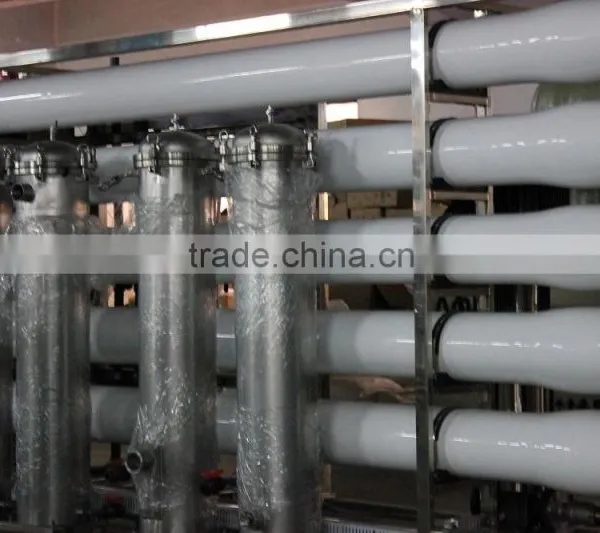

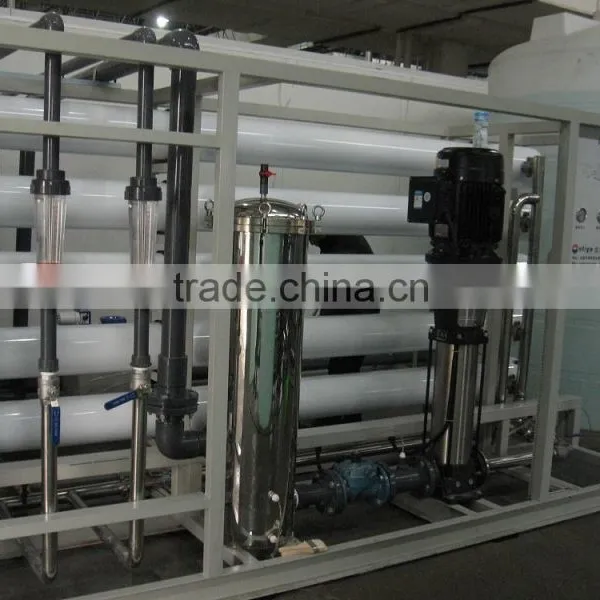

1.Description of Ultrafiltration System Pure Water Treatment Machine With RO System

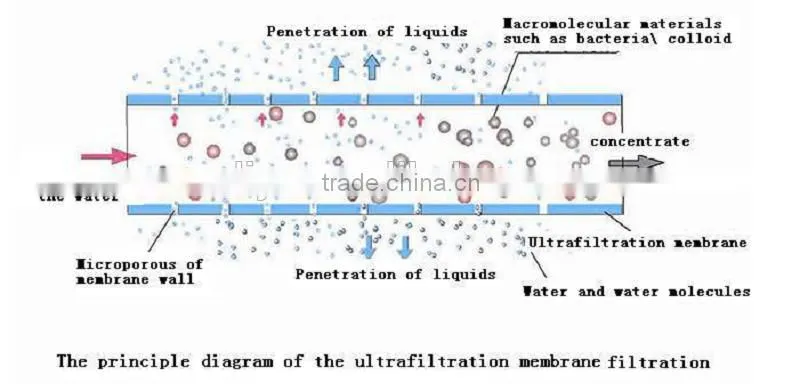

The ultrafiltration systems are usually operated in a pressure range of 10 to 50 psig and they remove particles in size down to as small as 0.02 µm. Typical flux (rate of finished water permeate per unit membrane surface area) for UF system is 10-100 gallons per square foot per day (gfd).
Our membrane filtration system uses advanced hollow fiber or ceramic technologies which operate in the outside-in or inside-out direction of flow. Given the small membrane pore sizes used with these technologies, fouling due to deposition of organic and inorganic compounds on the membrane may occur if the ultrafiltration system is not properly designed and operated. Therefore, we use automated backwashing, air scour and chemical flushing processes to restrict the rate of membrane fouling within acceptable limits. Chemical cleaning is employed once the maximum transmembrane pressure has been reached. Typical cleaning agents utilized include acids, caustic, surfactants, enzymes and certain oxidants, depending upon membrane material and fouling type.
2.Application of Ultrafiltration System Pure Water Treatment Machine With RO System
| • Municipal drinking water filtration |
| • Industrial wastewater recovery |
| • COD reduction |
| • RO & NF pre-treatment |
3.Flow chart of Ultrafiltration System Pure Water Treatment Machine With RO System
3.Feature of Ultrafiltration System Pure Water Treatment Machine With RO System
| 1.The using material is environmentally friendly,and safe. |
| 2.Super accuracy filtration and using long time |
| 3.The test for pressure is Complianced with the standard of NSF |
| 4.Strong anti-pollution for the ultrafiltration membrane with efficient adsorption |
