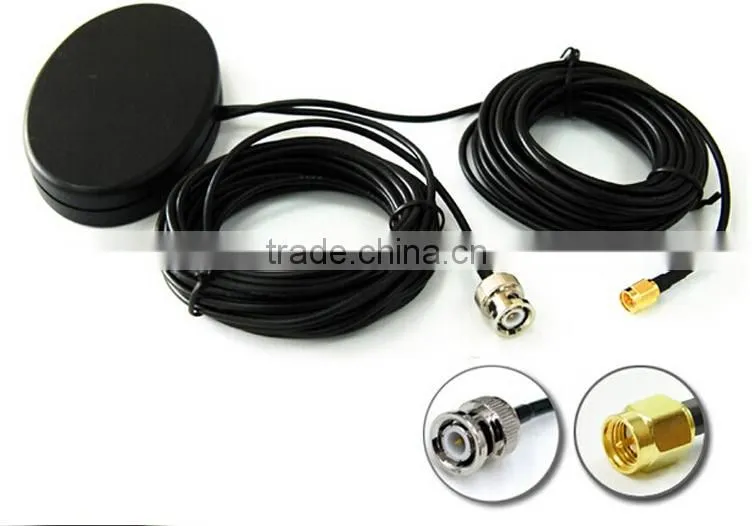

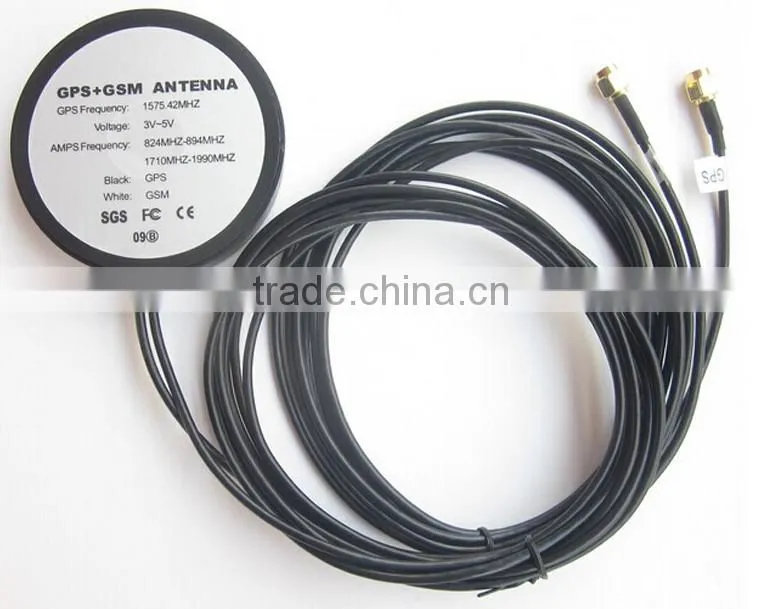

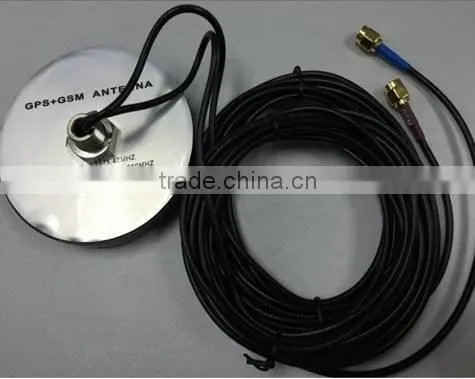

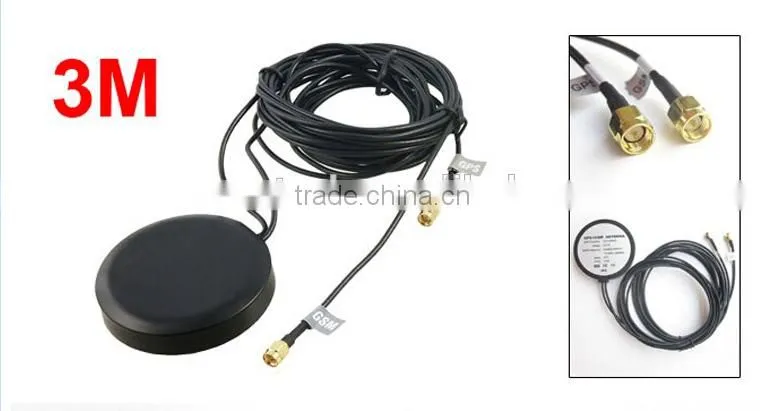

GPS Customized Antenna GPS GSM Customized Combo Antenna in China

GPS Customized Antenna GPS GSM Customized Combo Antenna in China

1. Cable Type : RG178, RG136, RG58, RG1.13, RG1.37

2. Working Voltage:DC 2.0V - 5.0V

3. Center Frequency:10mA-30mA

4. Output Impednace:50 OHM

5.  Outer Band Attenuation:20dBi

6.  Amplifier Gain : 5dBi±3dBi

7.  Noise Figure :≤1.5

8.  V.S.W.R ≤1.5

9.  Operating Temperature -40°C - +85 °C

10.Products usdage : GSM, GPS, TV, wifi, talkie walkie antenna

Application

Global Positioning System

GARMIN / Marine Positioning System

GPS / GSM Car Tracking System

Features

RoHS Compliant

Low V.S.W.R. / Low Loss Design / High Gain

High Efficiency and Sensitivity

Low Loss RF Coaxial Connector Cable Feed

Water Proof Design

Specification

Type 25x25 Ceramic Antenna

Frequency : 1575.42 ±5 MHz

Polarization : Right Hand Circular Polarization

S.W.R. : <= 1.5     Gain : 4dBic @ 0 deg.

Amplifier / Filter

Gain : 28 dB (typical)   Noise Figure : 1.5 dB

DC Voltage : 3 ~ 5 V    DC Current : 5 ~ 10m A

GSM Quad-Band Antenna

WR : <=2.0 @ 824-960 &1710-1990 MHz

Gain : 2 & 2 dBi

Mechanical / Environment

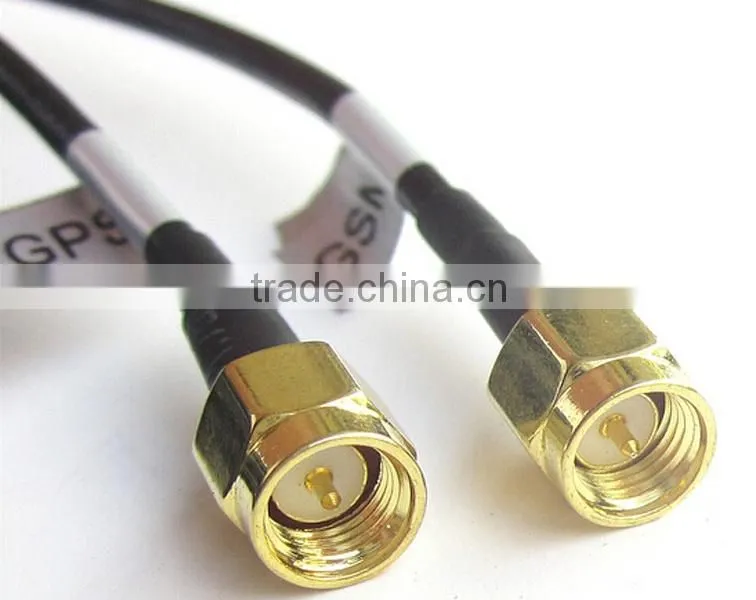

Connector : SMA/FME/MMCX/BNC/FAKRA/TNC/MCX/SSMB/SMB/SMC

Cable : RG-174 // 5000 mm

1 pc per PE bag, 100pcs per carton with size 42*30*27
