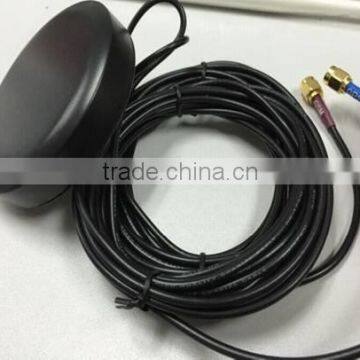

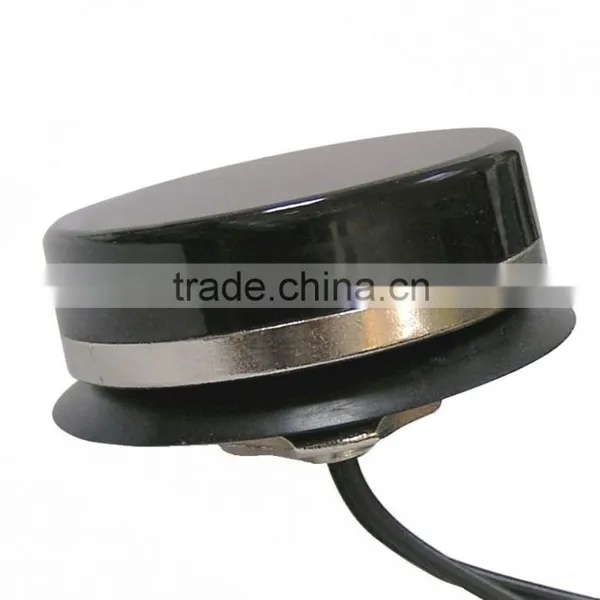

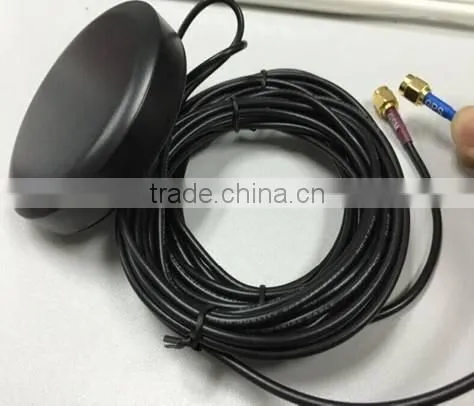

New Product Black Color Roof Mount GPS GSM Combo Antenna Car Shark Fin Antenna
Application
Global positioning system
Garmin / Marine positioning system
GPS / GSM car tracking system
Features
RoHS Compliant
Low V.S.W.R. / Low Loss Design / High Gain
High Efficiency and Sensitivity
Low Loss RF Coaxial Connector Cable Feed
Matching Free Design
Water proof and weather proof design
Specification
Type:25x25 Ceramic Antenna
Freq. : 1575M.42 Hz & 824-960 &1710-2170 MHz
S.W.R. : <= 1.5
Gain : 20 dBi
Impedance: 50 Ω
Polarization: Right Hand Circular Polarization
Connector : SMA male
Cable : RG174 at 3m
Mounting: Magnetic / Adhesive / Screw Mounting
Amplifier / Filter
Gain: 20dB
Noise Figure:1.5dB
Out Band Rejection: 7dB @ ± 20MHz, 20 dB @ ± 50MHz , 30dB @ ± 100MHz
DC Voltage: 3 ~ 5V
DC Current: 5 ~ 10 mA
Size
1 pc per PE bag, 300pcs per carton with size 42*30*27
