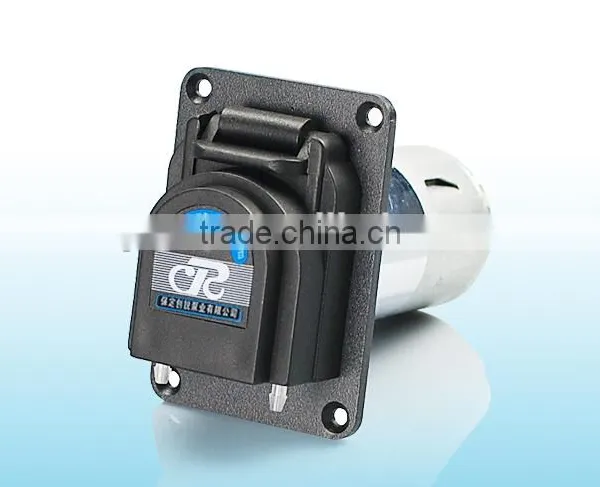

Online Monitoring peristaltic pump OEM306/WP110
mini DC dosing pump
1.Good quality
2.Outstanding outlook ,mini size
3.Long life
4.Superior performance
Typical application:
Chromatographic analysis/COD water treatment /Medical/ Machinery matching etc.
Specifications
| Model | OEM200-8-WP110 with DC motor | OEM200-8-WP110with stepping motor | Note |
| Speed | 0-600 rpm optional | 0-600 rpm optional | |
| Pump head material | PP+POM | PP+POM | |
| Roller | 3/4/6 optional | 3/4/6 optional | |
| Channel | 1/2 optional | 1/2 optional | |
| Motor | DC gear motor | 42 stepping motor | |
| Power | <15W | <20W | |
| Tube size | ID1 OD3/ ID2 OD4 /ID3 OD5mm optional | ID1 OD3/ ID2 OD4 /ID3 OD5mm optional | |
| volatage | 12V/24V/36V | DC12-48V | |
| Weight | 0.3KG | 0.32kg | |
| Accessories optional | DC adjustable contol board | dirver | |
Flowrate
With 3 roller
| Speed | Tube size | Flowrate |
| 100rpm | ID1 OD3mm | 5ml/min |
| 100rpm | ID2 OD4mm | 18.5ml/min |
| 100rpm | ID3 OD5mm | 36ml/min |
With 4 roller
| Speed | Tube size | Flowrate |
| 100rpm | ID1 OD3mm | 4.8ml/min |
| 100rpm | ID2 OD4mm | 18ml/min |
| 100rpm | ID3 OD5mm | 34ml/min |
With 6 roller
| Speed | Tube size | Flowrate |
| 100rpm | ID1 OD3mm | 4ml/min |
| 100rpm | ID2 OD4mm | 13ml/min |
| 100rpm | ID3 OD5mm | 21ml/min |

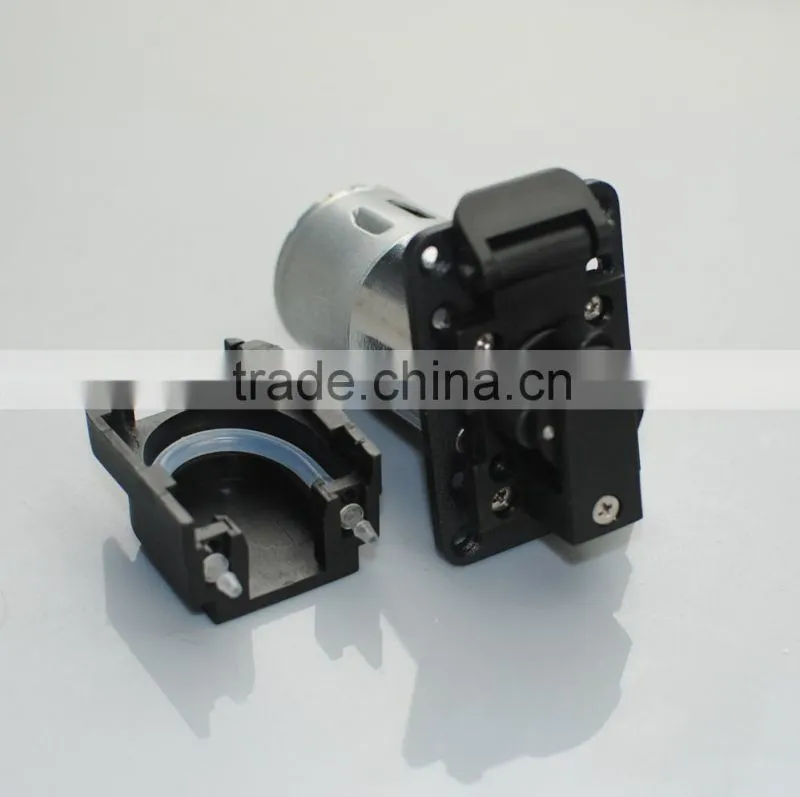

Details:
Package :

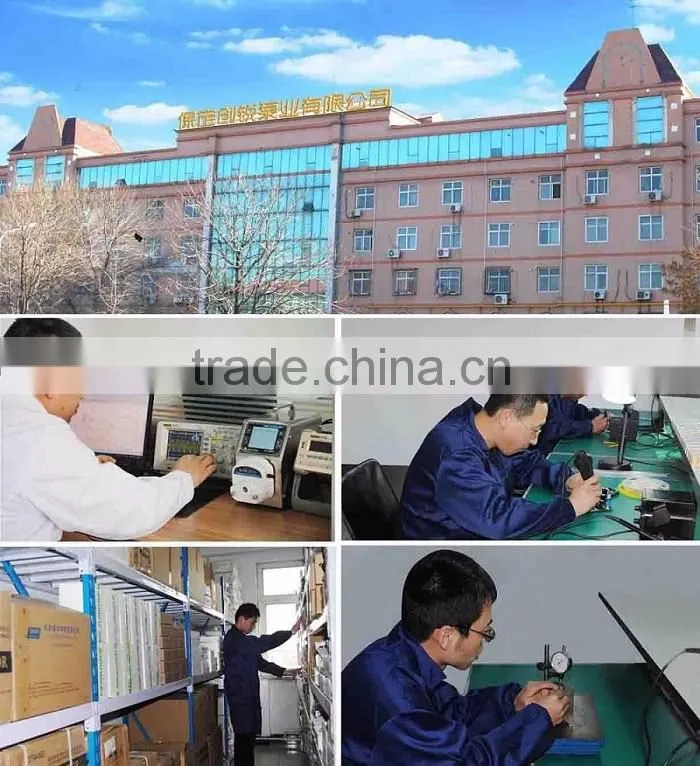

Company information
Baoding chuangrui precision pump Co.,Ltd was founded in 2006,is now mainly engaged in the peristaltic pump research and development ,production ,marketing;and related fluid precision control of the stepper motor ,drives,controller of research and development ,production and sales.Enterprise covers an area of more than 1000 square meters of modern production workshop ,more than 50 sets of production equipment.At present ,we have succeeded in bringing the ARM,DSP ,FPGA,CPLD technology application in the research and development of new products ,such as improving the comprehensive performance of the product.
Our Exhibition

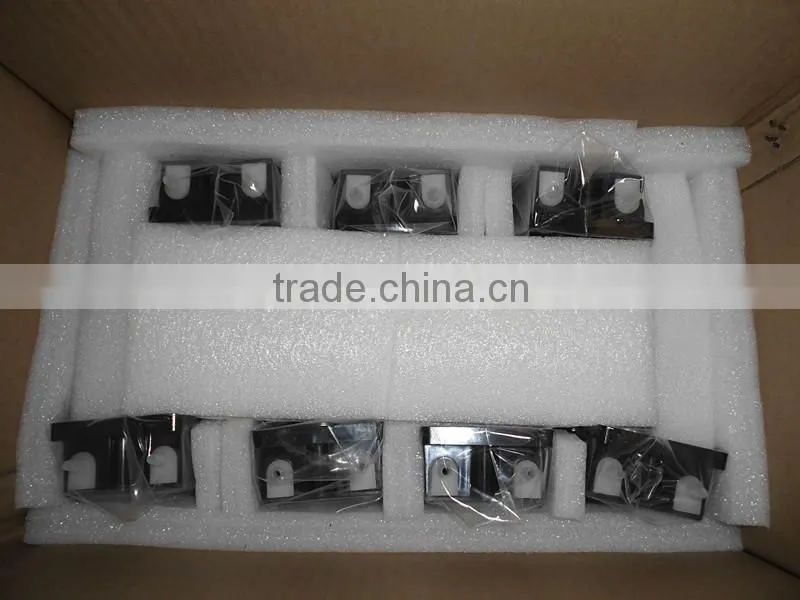

Packaging
Shipping
Our peristaltic pump with 1 year warrenty and lifetime maintenance.
We can do the OEM PERISTALTIC PUMP as your special requirements.
To help u send the right tube and motor ,before purchase ,pls confirm the details as below:
1.What flowrate you need ? ml/min
2.Which motor you like better ?
3.What kind of liquid you will transfer ? does it corrosive ?
Question 1: Can I order custom peristaltic pump with my own design & logo?
Answer: Definitely yes.
Question 2: Can I order a sample first before mass production? How can I place a sample order?
Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.
Question 3: How soon can I get a sample made? How can I make payment?
Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.
Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.
Question 5: Can I buy the tube separately?
Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
Pls contact Ella Xu.0086-15633705132 or leave message to us.We will reply u asap we get it.
And other question, pls feel free to contact me.
Ella Xu
Skype ID : ella-crpump
QQ : 507183200
Wechat :ellaxu1988
Tel :15633705132
Welcome to begin the trade assurance order with us . we'll try our best to satisfy you .Let's begin !!!
Looking forward our long time cooperation .we'll offer the best quality and service !
