peristaltic pump for liquid soap OEM302/YZ2515X
Our peristaltic pumps, also known as squeeze-tube pumps, propel liquid with rotating rollers, attached to a motor that turns in a circular motion and that
- Squeezes a tube or hose.
- Creates a vacuum at the inlet end of the hose.
- Squeezes the fluid through the hose.
- Discharges the fluid at the outlet.
- Can the pump run continuously?
- Yes
- What is the life expectancy?
- Varies by model; the maximum is 2000 hours
- Can the flow rate be varied?
- The DC version’s flow rate can be varied by reducing the voltage.with speed control board
- Can the pump run in either direction?
- Depend on your requirement , if you need the direction control, we will add that mode on the pump
| Model.No. | Motor | speed(rpm) | Flowrate (ml/min) | tube | note | |
| 1 | OEM201-1/YZ1515x | DC 24 V | 600 | 2280 | 2m 17# | |
| 2 | OEM201-2/YZ1515x | DC 12 V | 600 | 2280 | 2m 17# | |
| 3 | OEM201-3/YZ1515x | AC 220 V | 450 | 1710 | 2m 17# | |
| 4 | OEM201-4/YZ1515x | AC 110 V | 450 | 1710 | 2m 17# | |

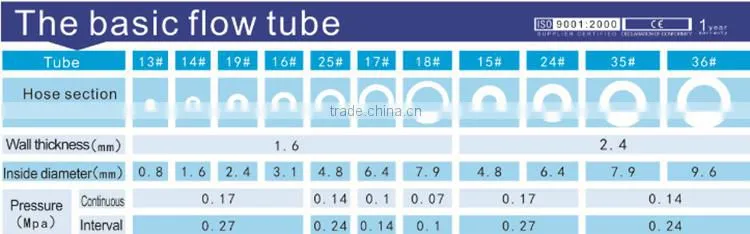

Tube Description
Functions and features
1.The OEM pumps heads are easy-to-use, offers trouble-free performance and provide flow rates for up to 6000 ml/min for continuous use
2.Small compact size and robust design
3.Trouble-free continuous tube loading in seconds
5.Automatic tube stretch for high accuracy and repetitive flow
6.Spring-loaded operation for good pressure control Four roller pumphead, low pulsation
- Surgical supplies
- Blood analyzers
- Water conditioning
- Painting equipment
- Donut making equipment
- Condiment spreaders
- Micro-brewing
- Enzyme injectors/Degreasers
- Food prep device cleaners
- Oil skimming/Lubrication
- Bottling
Packaging
Shipping
Company information
Baoding chuangrui precision pump Co.,Ltd was founded in 2006,is now mainly engaged in the peristaltic pump research and development ,production ,marketing;and related fluid precision control of the stepper motor ,drives,controller of research and development ,production and sales.Enterprise covers an area of more than 1000 square meters of modern production workshop ,more than 50 sets of production equipment.At present ,we have succeeded in bringing the ARM,DSP ,FPGA,CPLD technology application in the research and development of new products ,such as improving the comprehensive performance of the product.
Our Exhibition
Our peristaltic pump with 1 year warrenty and lifetime maintenance.
We can do the OEM PERISTALTIC PUMP as your special requirements.
To help u send the right tube and motor ,before purchase ,pls confirm the details as below:
1.What flowrate you need ? ml/min
2.Which motor you like better ?
3.What kind of liquid you will transfer ? does it corrosive ?
Question 1: Can I order custom peristaltic pump with my own design & logo?
Answer: Definitely yes.
Question 2: Can I order a sample first before mass production? How can I place a sample order?
Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.
Question 3: How soon can I get a sample made? How can I make payment?
Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.
Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.
Question 5: Can I buy the tube separately?
Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
Pls contact Ella Xu.0086-15633705132 or leave message to us.We will reply u asap we get it.
And other question, pls feel free to contact me.
Welcome to begin the trade assurance order with us. we'll try our best to satisfy you. Let's begin !!!
