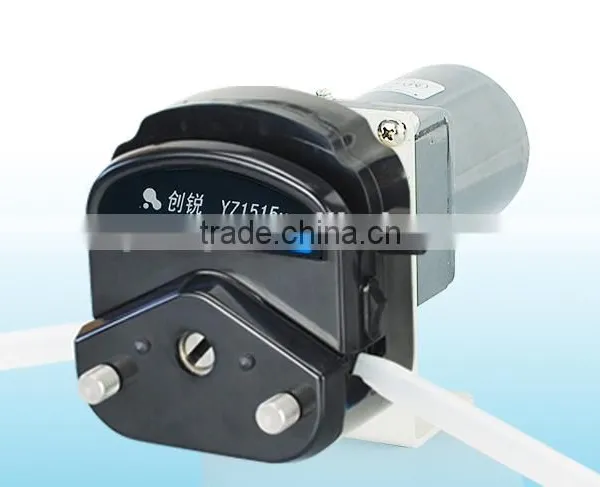

Help CenterLow Price and Best Quality OEM Peristaltic Dosing Pump With Silicon Tubing 18#
Related Products
-
Peristaltic Pump for Water Quality Monitoring OEM206/WP300US$ 1 - 200MOQ: 1 Piece -
Flue Gas Analysis Peristaltic Pump OEM205/TH15US$ 1 - 200MOQ: 1 Piece
-
dc 24v Small Oem Peristaltic Pump for Milk Vending MachineUS$ 1 - 200MOQ: 1 Piece
-
Peristaltic Pump for Watertreatment OEM209/WP110US$ 1 - 500MOQ: 1 Piece
-
Peristaltic Pump for Vending Machine OEM208/KZ25US$ 200 - 240MOQ: 1 Piece
Our low price and best quality OEM peristaltic dosing pump with silicon tubing 18# peristaltic pumps, also known as squeeze-tube pumps, propel liquid with rotating rollers, attached to a motor that turns in a circular motion and that
- Squeezes a tube or hose.
- Creates a vacuum at the inlet end of the hose.
- Squeezes the fluid through the hose.
- Discharges the fluid at the outlet.
- Can the pump run continuously?
- Yes
- What is the life expectancy?
- Varies by model; the maximum is 2000 hours
- Can the flow rate be varied?
- The DC version’s flow rate can be varied by reducing the voltage.with speed control board
- Can the pump run in either direction?
- Depend on your requirement , if you need the direction control, we will add that mode on the pump
| Model.No. | Motor | Maxspeed(rpm) | MaxFlowrate (ml/min) | tube | note | |
| 1 | OEM201-1/YZ1515x | DC 24 V | 600 | 2280 | 18 | |
| 2 | OEM201-2/YZ1515x | DC 12 V | 600 | 2280 | 18 | |
| 3 | OEM201-3/YZ1515x | AC 220 V | 450 | 1710 | 18 | |
| 4 | OEM201-4/YZ1515x | AC 110 V | 450 | 1710 | 18 | |
Pls send the suitable model no. to us,then we can offer the best quotation for you . Thanks .=))
Tube Description
Functions and features
1.The OEM pumps heads are easy-to-use, offers trouble-free performance and provide flow rates for up to 2280 ml/min for continuous use
2.Small compact size and robust design
3.Trouble-free continuous tube loading in seconds
5.Automatic tube stretch for high accuracy and repetitive flow
6.Spring-loaded operation for good pressure control Four roller pumphead, low pulsation
- Surgical supplies
- Blood analyzers
- Water conditioning
- Painting equipment
- Donut making equipment
- Condiment spreaders
- Micro-brewing
- Enzyme injectors/Degreasers
- Food prep device cleaners
- Oil skimming/Lubrication
- Bottling
our peristaltic pump with 1 year warrenty and lifetime repair.
We can do the OEM PERISTALTIC PUMP as your special requirements.
To help u send the right tube and motor ,before purchase ,pls confirm the details as below:
1.What flowrate you need ? ml/min
2.Which motor you like better ?
3.What kind of liquid you will transfer ? does it corrosive ?
Question 1: Can I order custom peristaltic pump with my own design & logo?
Answer: Definitely yes.
Question 2: Can I order a sample first before mass production? How can I place a sample order?
Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.
Question 3: How soon can I get a sample made? How can I make payment?
Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.
Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.
Question 5: Can I buy the tube separately?
Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
Pls contact Ella Xu.0086-15633705132 or leave message to us.We will reply u asap we get it.
And other question, pls feel free to contact me.
Packaging
Shipping
Welcome to begin the trade assurance order with us. we'll try our best to satisfy you. Let's begin !!!
