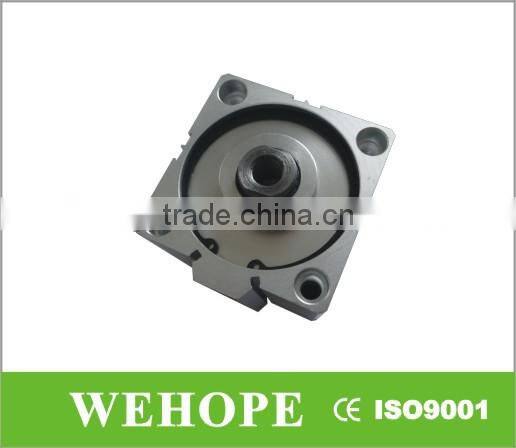

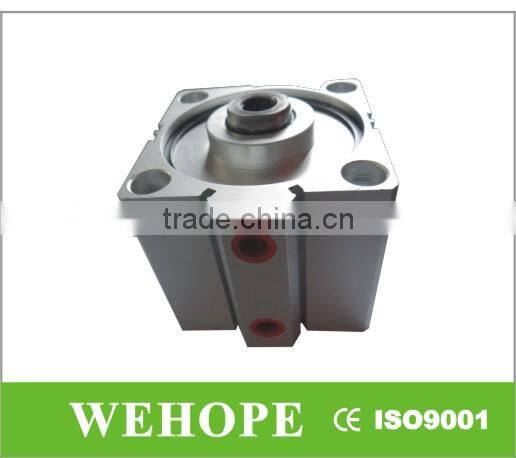

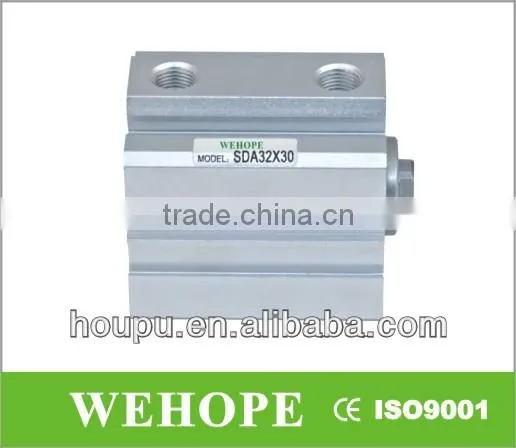

SDA SSA STA Series Pneumatic Air Cylinder
Specifications
1.Many years experiences of pneumatic air cylinder2. High quality , favorable price .
3. Fast delivery , best service
SDA SSA STA Series

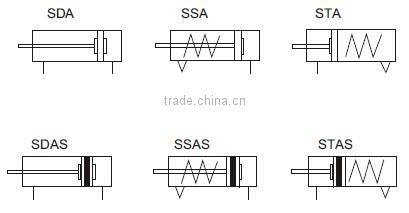

Symbol
Spec
| Inner dia (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |||
| Working mode | Double-action type | ||||||||||||
| Single-action extruding type and single-action lead-in type | |||||||||||||
| Working medium | Air ( filtered through 40um filtering net) | ||||||||||||
| Applicable pressure | Double-action type | 0.1~0.9MPa(14~128Psi) | |||||||||||
| Single-action type | 0.2~0.9MPa(28~128Psi) | ||||||||||||
| Guaranteed withstand pressure | 1.5MPa(213Psi) | ||||||||||||
| Working temperature | -5~70 | ||||||||||||
| Applicable speed mm/s |
Double-action type | 30~500 | 30~350 | 30~250 | |||||||||
| Single-action type | 100~500 | ||||||||||||
| Buffering type | Bumper | ||||||||||||
| Pipe dia. | M5 0.8 | PT1/8 | PT1/4 | PT3/8 | |||||||||

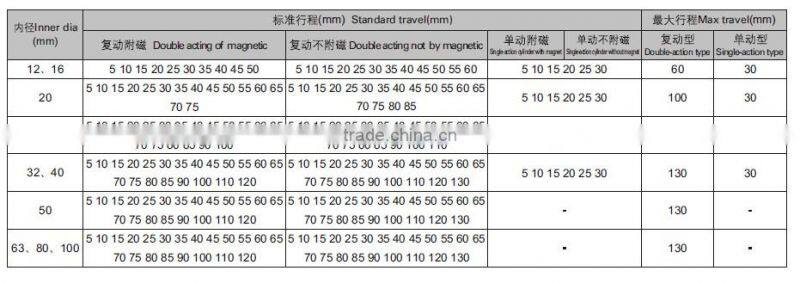

Travel
Ordering No.
SDA: Double-action type
SSA: Single-action extrusion type
STA: STA: Single-action lead-in type
Product detail :
