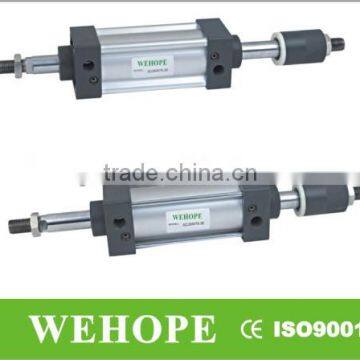

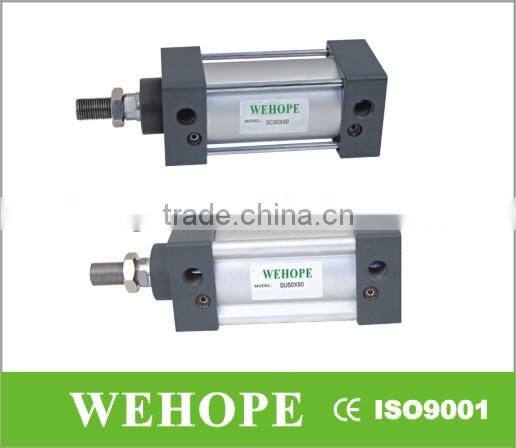

SC Standard Air Cylinder
US$ 1 - 10
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Type:
Other, Cylinder, Air cylinder
Place of Origin:
China
Model Number:
standard cylinder
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo / Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Other, Cylinder, Air cylinder
Place of Origin
China
Model Number
standard cylinder
Brand Name
WEHOPE
Specifications
1.Many years experiences.2. High quality , favorable price .
3. Fast delivery , best service
Specification
| Inner diameter | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 | ||||
| Action type | Double-action type | ||||||||||||||
| Work medium | Air | ||||||||||||||
| Fixed type | Basic type FA FB CA CB LB TC TC-M | ||||||||||||||
| Applicable pressure 2 Kgf/cm | 1~9.0 | ||||||||||||||
| 2 Guaratee pressure with stand Kgf/cm | 13.5 | ||||||||||||||
| Applicable Temperature | -5~70 | ||||||||||||||
| Applicable speed mm/s | 50~800 | ||||||||||||||
| Buffer type | Adjustable buffer | ||||||||||||||
| Buffer travel mm | 24 | 32 | |||||||||||||
| Pipe size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT1/2 | PT1/2 | PT1/2 | PT3/4 | PT3/4 | G1 | ||||
Travel
| (mm)Inner diameter | Standard travel | Max travel | Allowable travel | |
| 32 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 | 1000 | 2000 | |
| 40 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 | 1200 | 2000 | |
| 50 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1200 | 2000 | |
| 63 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 | |
| 80 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 | |
| 100 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 | |
| 125 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 | |
| 160 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 | |
| 200 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 | |
| 250 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 | |
| 320 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 | |
