Specifications
1.Many years experiences.2. High quality , favorable price .
3. Fast delivery , best service
STANDARD CYLINDER SC,SU Series
Production characteristics
1, Free lubrication
Because of oil bearing, the piston pole needn't lubricating.
2, Buffering
Besides fixed buffer, the cylinder terminal has adjustable buffer, so that the cylinder
enters into stably without impact during commutating.
3, High temperature resistance
Because of sealing material of high temperature resistance, the cylinder can work
normally at 150 (user can order it from us)
4, Various installation types
Many kinds of installation accessories can be selected by user.

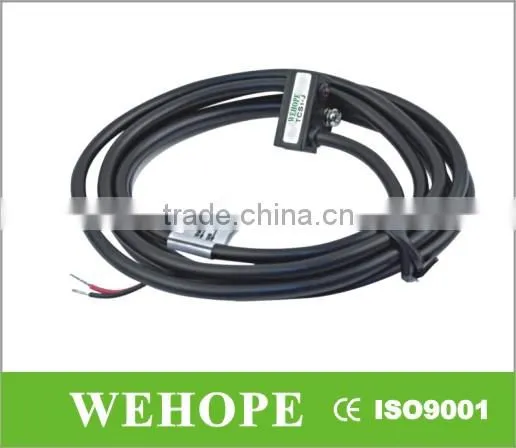

5, Magnetic property
The cylinder piston is equipped with a permanent magnet that can trigger the
magnetic switch of the cylinder to detect the moving position of cylinder.
Specification
| Inner diameter | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 | ||||
| Action type | Double-action type | ||||||||||||||
| Work medium | Air | ||||||||||||||
| Fixed type | Basic type FA FB CA CB LB TC TC-M | ||||||||||||||
| Applicable pressure 2 Kgf/cm | 1~9.0 | ||||||||||||||
| 2 Guaratee pressure with stand Kgf/cm | 13.5 | ||||||||||||||
| Applicable Temperature | -5~70 | ||||||||||||||
| Applicable speed mm/s | 50~800 | ||||||||||||||
| Buffer type | Adjustable buffer | ||||||||||||||
| Buffer travel mm | 24 | 32 | |||||||||||||
| Pipe size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT1/2 | PT1/2 | PT1/2 | PT3/4 | PT3/4 | G1 | ||||
Travel
| (mm)Inner diameter | Standard travel | Max travel | Allowable travel | |
| 32 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 | 1000 | 2000 | |
| 40 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 | 1200 | 2000 | |
| 50 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1200 | 2000 | |
| 63 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 | |
| 80 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 | |
| 100 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 | |
| 125 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 | |
| 160 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 | |
| 200 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 | |
| 250 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 | |
| 320 | 25 50 75 80 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 | |
Please contact with us for special travel
Ordering code
For example
1,If user needs 63mm diameter and 75mm travel LB fixed type standard double-action (pull pole) cylinder with magnetism, the correct order code is
SC-63
75-S-LB
2,If user needs 50mm diameter and 50mm travel TC fixed type standard double-action(no pull pole)cylinder without magnetism, the correct order code
is SC-50
50-TC

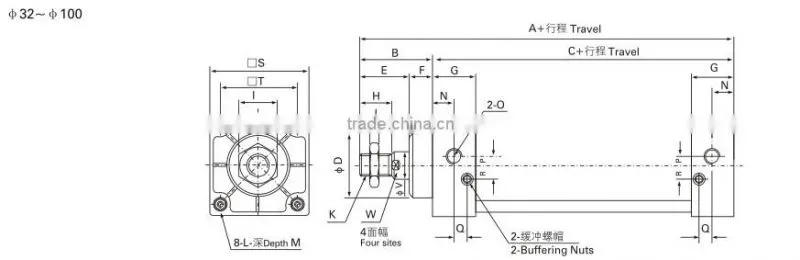

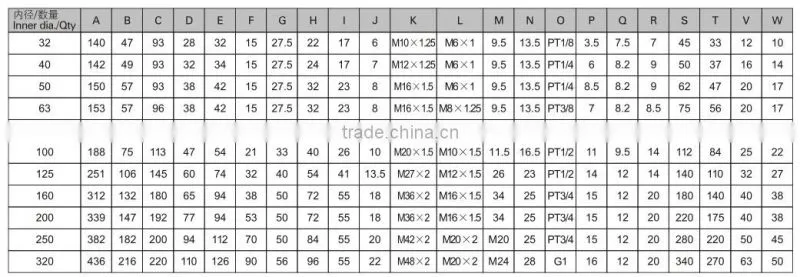

Basic size
