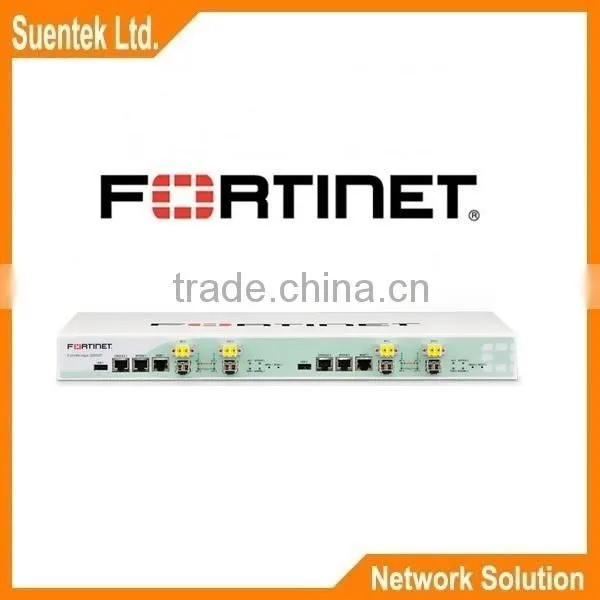

Fortinet FortiBridge 2002F Bypass Appliances FBG-2002F
FortiBridge® Bypass Appliances
----------------------------------------------------------------------------
Ensuring availability of network resources
You are faced with the challenge of securing your network while also ensuring that it is always available. This could mean that you are forced to choose network availability over ensuring that all traffic is inspected for malicious activity. You are already using high availability features of the security infrastructure, where a system fails over to either an active or standby unit. While this can reduce the risk of a network outage and still providing security services, to further reduce the risk of a network outage, additional steps have to be taken. To preserve availability in the event of a power failure or a device malfunction, bypassing the device altogether with a fail-to-wire solution can ensure network continuity at times when security cannot be provided.
The FortiBridge-2000 series of appliances provides bypass functionality to FortiGate consolidated security systems, and all three appliances offer bypass functionality for two network segments:
• The FortiBridge-2001 appliance provides four 10/100/1000 interfaces
• The FortiBridge-2001F provides two SFP 1 GbE interfaces, two fiber (LC, 850nm) 1 GbE interfaces
• The FortiBridge-2002 appliance provides eight 10/100/1000 interfaces
• The FortiBridge-2002F appliance provides four SFP 1 GbE interfaces, four fiber (LC, 850nm) 1 GbE interfaces.
• The FortiBridge-2002X appliance provides four SFP+ 10 GbE interfaces, four fiber (LC, 850nm) 10 GbE interfaces

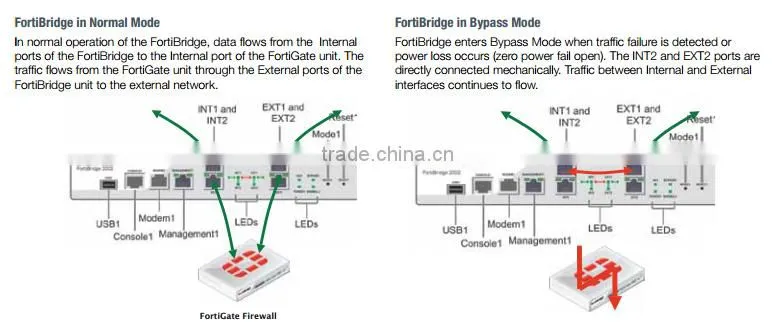

Operating in transparent mode during normal operation, these appliances automatically bridge network traffic in the event of a system failure or power outage to ensure mission critical network continuity.
| Fail-to-Wire Bypass | Maximizes network uptime by automatically re-routing traffic in the event of a power outage or any other type of event that would cause an in line security device to degrade the availability of the network segment. |
| Standalone 1-RU appliance | Enables you to add bypass functionality to any existing in line security system, including FortiGate® consolidated security systems. |
|
Remote configuration and monitoring
|
Enables you to monitor and control the bypass status of network segments remotely, with the ability to view mode of operation, manually switch the appliance into bypass or normal operation mode, and configure thresholds for automatic bypass fail-to-wire |
| FortiGate Model | FortiBridge 2002F FBG-2002F |
|---|---|
| Description | power failure bypass functionality for two network segments. 4 1G SPF, 4 1G LC, 2 RJ45 Management Ports, Dual Power Supply, Dual CP, includes 4 SR SFP Transceiver |
| Hardware Specifications | |
|
10/100/1000 (Copper, RJ-45) |
0 |
| SFP Interfaces | 4 |
| SFP+ Interfaces (10 GbE) | 0 |
| LC Interfaces (1 GbE) | 4 |
LC Interfaces (10 GbE) |
0 |
Management Interfaces |
2 |
Console Interfaces (RJ-45) |
2 |
USB Interfaces |
2 |
Modem |
2 |
| Link Protection | 2 x Gbps segment |
| Environment | |
| Power Required | 100-240 VAC, 50-60 Hz, 0.8 Amp |
| Power Consumption (AVG) | 22W |
| BTU | 75BTU |
| Operating Temperature | 32 – 104 deg F (0 – 40 deg C) |
| Storage Temperature | 13 to 158 deg F (-25 to 70 deg C) |
| Humidity | 20 to 80% non-condensing |
| Compliance | |
| FCC Class A Part 15, / CE Mark | |
| Dimension | |
| Height x Length x Width (in) | 1.75 (H) x 17.4 (L) x 11.85 (W) |
| Height x Length x Width (cm) | 4.4 (H) x 44.2 (L) x 3.01(W) |
| Weight | 8.4 lb (3.8 kg) |
| Rack Mountable | Yes |
1.Original packing;
2.Delivery Time: Within 3 days after your payment confirmed;
3.Shipping Way:DHL, Fedex, UPS or other ways you like.
1. One year original warranty;
2.Good quality and after-sale service.
