Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > Cheap 3G Network NVR Linux Embedded Hybrid NVR CCTV 32CH Onvif NVR Wifi
Cheap 3G Network NVR Linux Embedded Hybrid NVR CCTV 32CH Onvif NVR Wifi
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Coop
Model Number:
DV-9032MF CCTV 32CH Onvif NVR Wifi
Payment & Shipping
Payment Methods:
Port of Shipment:
Quanzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Real Time Standalone Onvif NVR P2P Cloud CCTV Full HD 3MP 16CH NVR RecorderNegotiableMOQ: 1 Piece -
Hisilicon CMOS HD NVR Kits HDMI Onvif Full HD 1080P 8CH POE Network SystemNegotiableMOQ: 1 Piece
-
Security NVR Recorder CCTV 960P H.264 IP Camera Wifi POE 4CH NVR SystemNegotiableMOQ: 1 Piece
-
4CH 960P Cloud PTZ Alarm 3G WiFi ONVIF HD NVRUS$ 50 - 300MOQ: 1 Piece
-
Onvif Linux Embeded HD Real Time POE NVR 720P 4CH Dome Mini NVR SystemNegotiableMOQ: 1 Piece
Place of Origin
Fujian, China
Brand Name
Coop
Model Number
DV-9032MF CCTV 32CH Onvif NVR Wifi

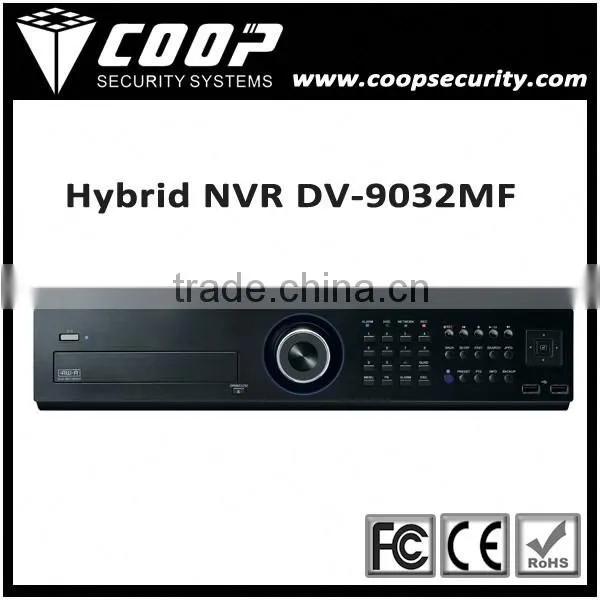

Cheap 3G Network NVR Linux Embedded Hybrid NVR CCTV 32CH Onvif NVR Wifi DV-9032MF
Product Description
CCTV 32CH Onvif NVR Wifi Features:
- Recording Resolution: 32CH 960P/ 24CH 1080P/ 16CH 3MP/ 8CH 5MP
- Recording Frame Rate: 30fps/channel
- Backup Way: U disk, USB DVD-RW, network storage and backup
- SATA port: 8*4TB SATA HDD’s
- Support USB 2.0 Ports, IR Controller, VGA output, HDMI port
- Support Onvif; Third-party IP cameras supported
- Support IE, mobile phone remote monitoring
- Customization: support flexible customization and boot screen(LOGO logo) free replacement, customers can easily customize their own monitoring products, great to meet all kinds of individual needs
CCTV 32CH Onvif NVR Wifi Specification:
| Model | DV-9032MF | |
| Main Processor | Industry level embedded microprocessor | |
| System | Operating System | Embedded LINUX operating system |
| Image Code Control | Image code quality adjustable, variable bitstream and constant bitstream optional | |
| System resource |
synchronous multi-channel recording, synchronous multi-channel sub-code stream, synchronous multi-channel playback, synchronous network operation |
|
| Interface | Operation Interface | 16 bit true color graphical menu interface, mouse operation supportive |
| Display | 1/4/8/9/16/24/32 | |
| Video | Video Standard | 1080P(1920×1080)30fps / 960P(1280×960)30ftp/720P(1280×720)30fps |
| Monitoring Image Quality | 1080P(1920×1080) / 960P(1280×960)/720P(1280×720) | |
| Video Standard | 1080P(1920×1080)30fps / 960P(1280×960)30ftp/720P(1280×720)30fps | |
| Image Motion Detection | Area: 396(22 *18), Sensitivity optional | |
| Recording Playback Quality | Any 4ch/8ch 1080P/960P/720P playback simultaneously | |
| Region Cover | Every channel can set 4 cover regions(IPC Support) | |
| Recording Mode | Support manual , auto, dynamic detection, alarm trigger record mode | |
| Backup Way | Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup(Partly needs IPC Support) | |
| Operation Way | Mouse | |
| Local Login | User name and password | |
| Recording Storage | Local HDD, network | |
| External Ports | Video Input | 1. 32×(1280*960)+sub[960*576]+4Ref.+9Play 32ch 1.3MP IP Camera |
| 2. 25x(1920*1080)+sub[960*576]+4Ref.+4Play 24ch 2.0MP IP Camera | ||
| 3. 16×(2048*1536)+sub[960*576]+4Ref.+4Play 16ch 3.0MP IP Camera | ||
| 4. 8x(2592*1920)+sub[960*576]+4Ref.+4Play 8ch 5.0MP IP Camera | ||
| Audio Input | 32/24ch network audio input | |
| Video Output | 1ch VGA+1ch HDMI | |
| Audio Output | 1CH RCA(200-3000mV,5KΩ) | |
| Network Port | 1 RJ45,10M/100M/1000M self-adaptive LAN port | |
| RS485 Port | 1 RS485,1 RS232 | |
| USB Port | 2 USB 2.0 ports | |
| Alarm Input | 16ch | |
| Alarm Output | 1ch | |
| Wireless Port | 3G,WIFI | |
| HDD | HDD Port | 8 SATA |
| MAX Capacity | Each port supports MAX 4TB HDD | |
| Mobile Surveillance | Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone | |
| Power Supply | ATX110-220V 300W 50-60Hz | |
| Power Consumption | ≤35W(without HDD) | |
| Working Temperature | -10°C~+55°C | |
| Working Humidity | 10%-90% | |
| Dimension | Equipment: 440mm×450mm×90mm, Packing: 539mm×550mm×225mm | |
| Weight(without HDD) | 8.0KG | |
Company Information
COOP SECURITY(CHINA)LIMITED is one of the leading factories which develop and produce CCTV products in China, supported by the Chinese government as the most importantly developed company. All the models are produced by machine automatically.It has a Research and Development Center in Taiwan, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Taipei International Show:
Packaging & Shipping
1. Transportation: UPS, TNT, DHL, EMS or FEDEX.
2. Item will be shipped out within 7 working days upon receipt of the payment.
Our Services
1. Pls report us if there are any problem, we will solve it ASAP.
2. This items comes with 2 YEARS
FAQ
Q: How long your delivery time?
A: In general, the time is about one week.
Q: What’s your payment?
A: We accept payment by TT Bank Transfer in this stage.
