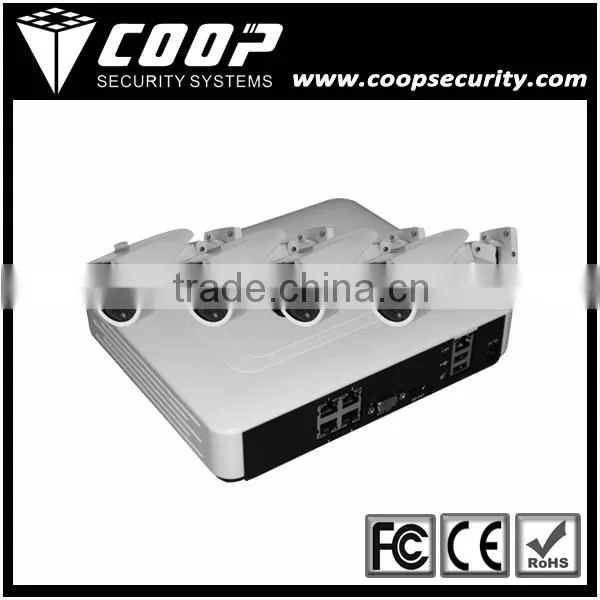

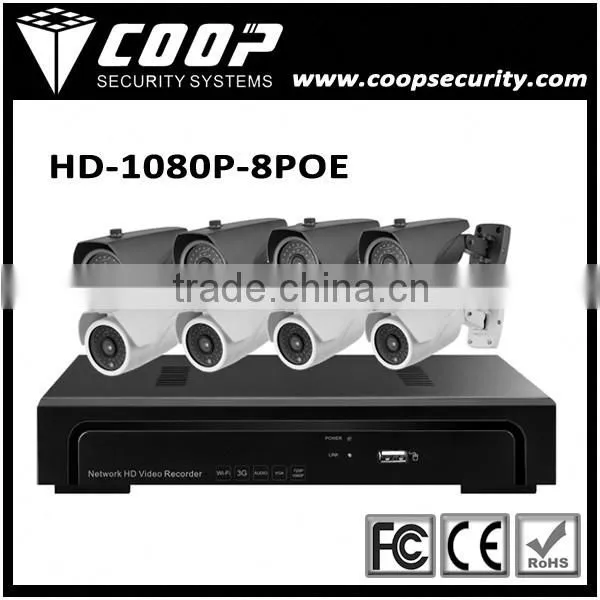

Hisilicon CMOS HD NVR Kits HDMI Onvif Full HD 1080P 8CH POE Network System HD-1080P-8POE
1080P 8CH POE Network System Features:
- P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place
- Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based on Onvif,RTSP standard
- Support megapixel HD network video preview, storage and playback;
- Support search, playback and backup by event;
- Support all channel image display on one screen at same time, support 4 channels’ image display by mainstream,
- and 4 channels playback;
- Support monitor PTZ on preview mode
- Offer CMS for free
1080P 8CH POE Network System Main Functions:
- Preview channel can be switched to other channel randomly without changing the MAC which is convenient for the project construction;
- The dendritic menu can be moved. Man-machine communication is more direct and the settings of parameters are more easy and convenient;
- The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomly under preview and playback modes;
- Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;
- The recording playback is shown by time bar and different color represents different recording type. It is very fast and easy to find check the recording;
- Recording backup can be accurate to second. Any time period of backup is available;
- The recording files in the USB disk can play directly in the playback interface while the snapshot pictures can be viewed directly;
- With 3G, WIFI wireless connection functions;
- Standard resolution which can be adjusted according to the display device in order to get the best image quality;
- Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD
1080P 8CH POE Network System Specification:
Model Number |
DV6008-POE |
|
Operating System |
Embedded LINUX operating system |
|
Image Code Control |
Image code quality adjustable, variable bitstream and constant bitstream optional |
|
Dual Stream |
Each channel can set main stream and sub stream |
|
Video Standard |
1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps |
|
Monitoring Image Quality |
1080P(1920×1080) / 960P/(1280×960)/720P(1280×720) |
|
Image Motion Detection |
Each screen can set mutiple detection areas and set 6-level sensitivity(IPC Support) |
|
Recording Playback Quality |
4ch playback in 4ch 720 mode; 1ch 1080P playback in 4ch 960P/1080P model |
|
Region Cover |
Every channel can set 4 cover regions(IPC Support) |
|
Recording Mode |
Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support) |
|
Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup |
|
Operation Way |
Mouse |
|
Local Login |
User name and password |
|
Recording Storage |
Local HDD, network |
|
External Ports |

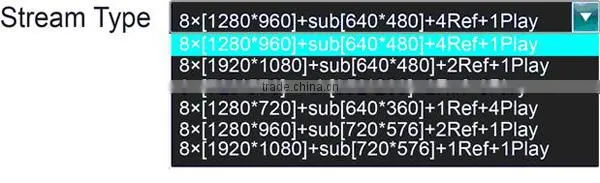

Video Input |
1. 8×(1280*720) +sub[640*360]+1Ref.+4Play 8ch 1.0MP IP Camera |
2. 8×(1280*960)+sub[640*480]+4Ref.+1Play 8ch 1.3MP IP Camera | ||
3. 8×(1280*960)+sub[720*576]+2Ref.+1Play 8ch 1.3MP IP Camera | ||
4. 8×(1920*1080)+sub[640*480]+2Ref.+1Play 8ch 2.0MP IP Camera | ||
5. 8×(1920*1080)+sub[720*576]+1Ref.+1Play 8ch 2.0MP IP Camera | ||
Audio Input |
8ch network audio input |
|
Video Output |
1ch VGA+1ch HDMI |
|
Audio Output |
1ch RCA Output |
|
Network Port |
9 RJ45, 100M LAN port, data transferring and power supply both by network cable |
|
USB Port |
3 USB 2.0 ports |
|
Wireless Port |
3G,WIFI |
|
HDD |
HDD Port |
1 SATA HDD Port |
MAX Capacity |
Each port supports MAX 4TB HDD |
|
Mobile Surveillance |
Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
|
Power Supply |
DC48V 2.5A |
|
Power Consumption |
≤115W(without HDD) |
|
Working Temperature |
-10℃~+55℃ |
|
Working Humidity |
10%-90% |
|
Dimension |
Equipment:260mm×220mm×43mm, Packing:355mm×255mm×88.5mm |
|
Weight(without HDD) |
N.W.:1.7Kg;With packing:2.6Kg |
|
Outside Carton |
10 pcs/carton. 525mm×455mm×365mm; Weight:27 Kg |
|
Installation Way |
Desktop Installation |
|

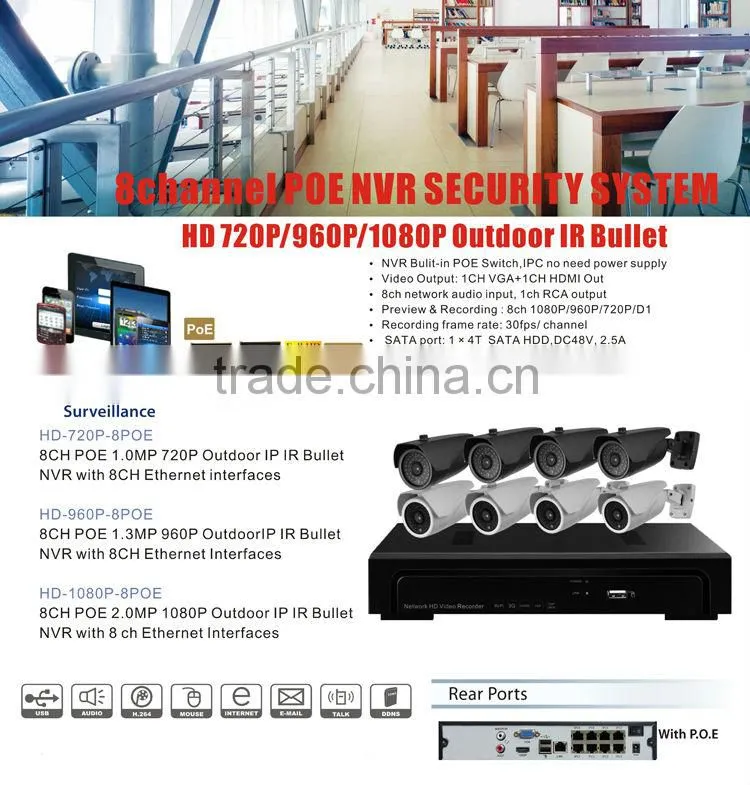

1080P 8CH POE Network System Accessories & Port Pictures:
NVR |
1PCS |
IP Cameras |
8PCS |
Network Cables |
8 PCS |
NVR Power Supply |
1 PCS |
NVR Mouse |
1 PCS |
CD |
1 PCS |

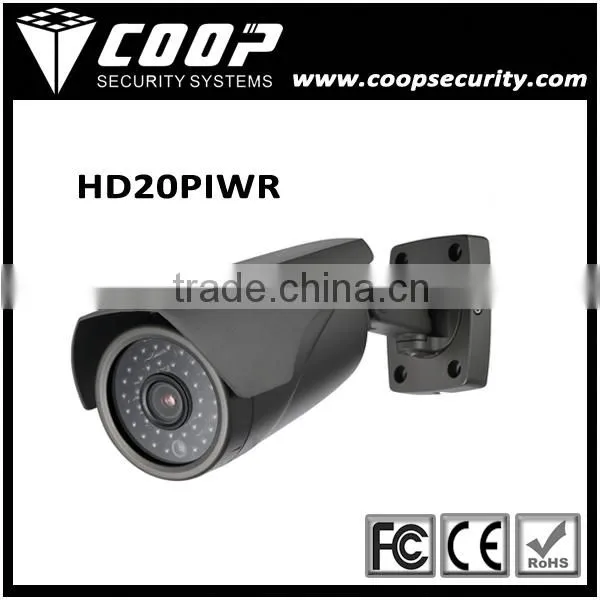

1080P 8CH POE Network System Camera Specs:
| Model No. | Model No. | HD10PIWR | HD13PIWR | HD20PIWR |
| Camera | Network | Economical | ||
| Sensor |
1/4" 1.0Mega Pixel progressive scanningCMOS |
CMOS1/3" 1.3Mega Pixel progressive scanning CMOS |
CMOS 1/2.7" 2.0Mega Pixel progressive scanning CMOS | |
| Min.Illumination |
Color:0.1 Lux/F1,B/W :0 Lux/F1.2(IR ON) |
Color: 0.01 Lux/F1.2, B/W:0 Lux/F1.2(IR ON) |
Color:0.6 Lux/F1.2, B/W:0 Lux/F1.2(IRON) |
|
| Lens | 3.6mm Mega HD Lens | |||
| Lens Interface | M12 | |||
| day /night | ICR filter | |||
| S/N Ratio | 3D DNR | |||
| compression Standard | Format | H.264 High profile | ||
| Video coding | 1Mbps~6Mbps1Mbps~6Mbps | 1Mbps~6Mbps | 1Mbps~8Mbps | |
| Image | PIXEL | 1280*720 | 1280*960 | 1920*1080 |
| Resolution | Mainstream:1280*720, 704*576; | Main stream: 1280*960, 1280*720;Sub stream:704*576;352*288 | Main stream: 1920*1080, 1280*720;Sub stream:704*576, 352*288 | |
| Sub stream:704*576, 352*288 | ||||
| Frame rate | 1~30fps/S adjustable | |||
| Image setting | Brightness,contrast, Saturation ,Hue, sharpness Adjustable Through Client or IE. | |||
| model | Auto/indoor/outdoor optional | |||
| Exposure mode | 1/50S~1/10000S | |||
| Electronic Shutter | Strong/Mid/Weak Optional | |||
| AGC | Off/On | |||
| BLC | Off/On | |||
| Function | Storage | Network storage, Through ONVIF Protocol NVR storage | ||
| interface | ONVIF protocol | |||
| intelligent alarm | Motion detect,video lost,alarm input,linkage alarm output, recording, screen snap, email sending,FTP storage | |||
| Protocol | DHCP/DDNS/Email/NTP/PPPOE/UPNP/FTP/RTSP/DAS/P2P | |||
| General function | Mirror,Flip,Fluorescent lamp anti-flash,OSD,Area shielder | |||
| Interface | Communication | 1 CH RJ45 | ||
| Power supply | 1 | |||
| Extension interface | POE(Optional) | POE(Optional) | POE(Optional) | |
| Others | Working environment | -30℃~60℃,Humidity<95% | ||
| Power supply | DC12V±10% | |||
| Consumption | 6W - MAX 12W(ICR switch 10-12W) | |||
| Waterproof Level | IP67 | |||
| IR Distance | 25-30M | |||
| Dimensions(mm) | 191× 76 × 71 mm | |||
| Weight | 1.15 Kg~1.25 Kg | |||
COOP SECURITY(CHINA)LIMITED is one of the leading factories which develop and produce CCTV products in China, supported by the Chinese government as the most importantly developed company. All the models are produced by machine automatically.It has a Research and Development Center in Taiwan, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Taipei International Show:
1. Transportation: UPS, TNT, DHL, EMS or FEDEX.
2. Item will be shipped out within 7 working days upon receipt of the payment.
3. Shipment may arrive within 5 – 16 days. Actual delivery days would be different for varies countries.
1. Pls report us if there are any problem, we will solve it ASAP.
2. This items comes with 2 YEARS
Q: How long your delivery time?
A: In general, the time is about one week.
Q: What’s your payment?
A: We accept payment by TT Bank Transfer in this stage.
