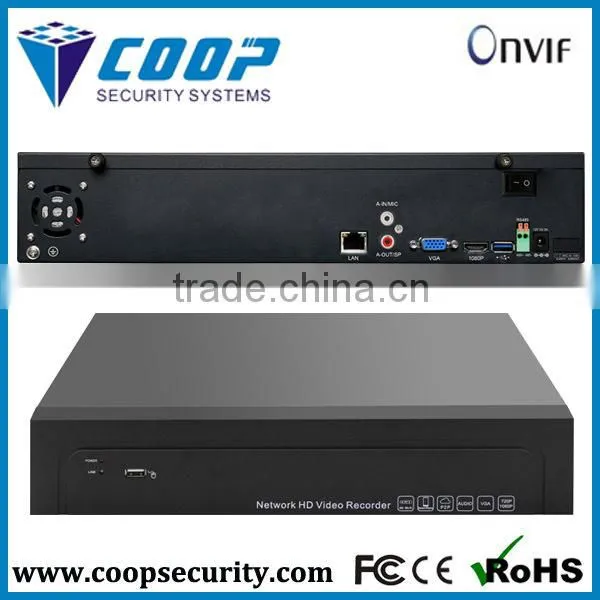

4CH 960P Cloud PTZ Alarm 3G WiFi ONVIF HD NVR 4 PoE HD Cameras
Specifcation:
960P Standalone 3G WiFi HD NVR
2ch 1080P+ 2 ch 720P video input
Full real time
HDMI .VGA output
BNC output additional
1 Package Included
Model Number |
DV7004-B |

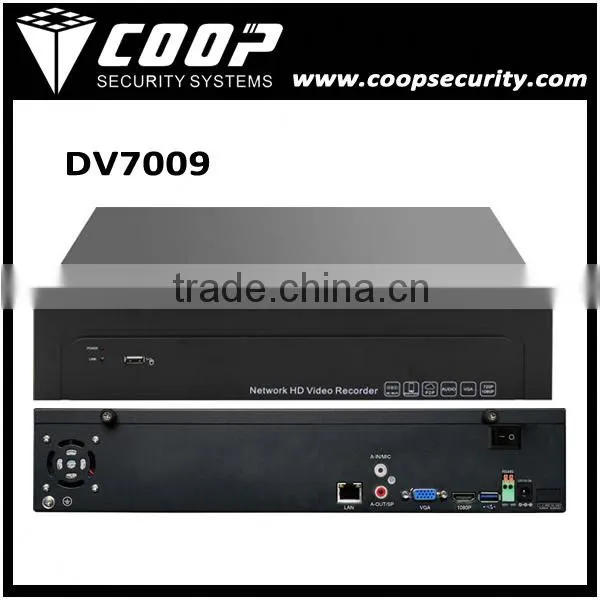

DV7009-B |
DV7016-B |
|
Operating System |
Embedded LINUX operating system |
|||
Image Code Control |
Image code quality adjustable, variable bitstream and constant bitstream optional |
|||
Dual Stream |
Each channel can set main stream and sub stream |
|||
Video Standard |
1080P(1920×1080)30fps/ 960P/(1280×960)/ 720P(1280×720)30fps |
|||
Monitoring Image Quality |
1080P(1920×1080) / 960P/(1280×960)/720P(1280×720) |
|||
Image Motion Detection |
Each screen can set mutiple detection areas and set 6-level sensitivity |
|||
Recording Playback Quality |
4ch playback in 4ch 720/960P mode: 1ch 1080P Playback in 1ch/4ch 1080P |
Any 4ch 1080P/ 720P Playback simultaneously |
Any 4ch 1080P / 720P. Playback simultaneously |
|
Region Cover |
Every channel can set 4 cover regions(IPC Support) |
|||
Recording Mode |
Support manual , auto, dynamic detection, alarm trigger record mode (Partly needs IPC Support) |
|||
Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW. network storage and backup |
|||
Operation Way |
Mouse, remote control, front panel |
|||
Local Login |
User name and password |
|||
Recording Storage |
Local HDD, network |
|||
|
External Ports |
Video Input
(4Ref. means 4 reference frame, compatible with ambarella IPC, Sub stream max. support VGA [640*480] |
4x(1280*720) + sub[960* 576] + 4Ref.+ 4Play Support 4ch 1MP IP Camera |
9x(1920* 1080)+sub[960* 576] +4Ref.+4Play Support 9ch 2MP IP Camera |
20x(1280*960) +sub[640*480] + 4Ref.+4Play, Support 20ch 1.3MP IP Camera. |
|
4x(1280* 960) + sub[960* 576] + 4Ref.+ 4Play Support 4ch 1.3MP IP Camera |
4x(2048* 1536)+sub[960* 576] +4Ref.+4Play Support 4ch 3MP IP Camera |
16x(1920*1080) +sub[640*480] + 4Ref.+4Play. Support 16ch 2MP IP Camera. |
||
|
4x(1920* 1080) + sub[960* 576] + 4Ref.+1Play Support 4ch 2MP IP Camera |
|
4x(2048*1536) +sub[960*576] + 4Ref.+4Play. Support 4ch 3MP IP Camera. |
||
|
1x(1920* 1080) + sub[960* 576] + 4Ref.+1Play Support 1ch 2MP IP Camera |
|
20x(1280*960) +sub[720*576] + 1Ref.+4Play, Support 20ch 1.3MP IP Camera. |
||
|
4x(720* 576) + sub[352* 288] + 4Ref.+4Play Support 4ch 0.4MP IP Camera |
|
16x(1920*1080) +sub[720*576] + 1Ref.+4Play. Support 16ch 2MP IP Camera. |
||
Audio Input |
4ch network audio input |
8ch network audio input |
16ch network audio input |
|
Video Output |
1ch VGA+1ch HDMI |
|||
Audio Output |
1ch RCA |
|||
Network Port |
1 RJ45,10M/100M self-adaptive LAN port |
1 RJ45,10M/100M/ 1000M |
||
RS485 Port |
Full duplex standard 485 port |
|||
USB Port |
1.5U A type: 3 USB 2.0 ports,1.5U B type: 2 USB 2.0 ports |
|||
Alarm Input |
4ch |
|||
Alarm Output |
1ch |
|||
Wireless Port |
3G,WIFI |
|||
HDD |
HDD Port |
2 SATA HDD Port |
||
MAX Capacity |
Each port supports MAX 4TB HDD |
|||
Mobile Surveillance |
Support ( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
|||
Power Supply |
12V4A |
|||
Power Consumption |
≤25W(without HDD) |
|||
Working Temperature |
-10°C~+55°C |
|||
Working Humidity |
10%-90% |
|||
Dimension |
Equipment: 350mm×240mm×70mm, Packing: 409mm×365mm×129mm |
|||
