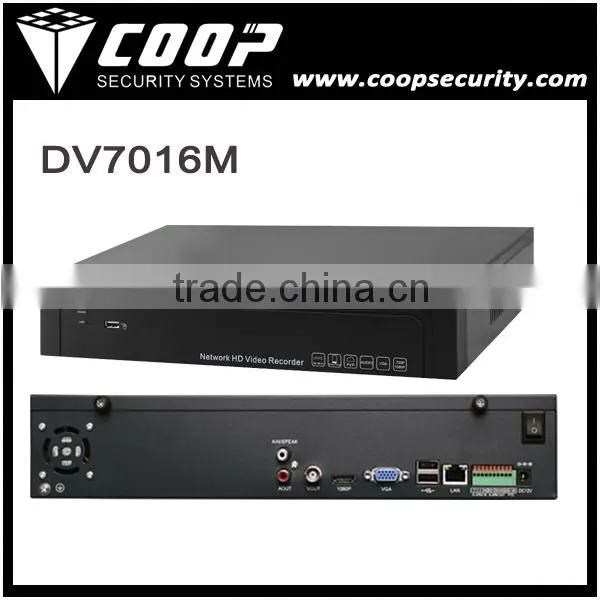

Real Time Standalone Onvif NVR P2P Cloud CCTV Full HD 3MP 16CH NVR Recorder DV7016M
CCTV 3MP 16CH NVR Recorder Features:
- Recording backup can be accurate to second. Any time period of backup is available.
- Backup recording files in the USB disk can play and search on the NVR directly.
- Support 15X zoom under preview and playback modes.
- NVR assigns IP address for IPC automatically, plug and play (only for the IPC that has private protocol with NVR).
- Support setting IPC parameters on the NVR directly.
CCTV 3MP 16CH NVR Recorder Specification:
Model Number |
DV7016M |
|
Operating System |
Embedded LINUX operating system |
|
Image Code Control |
Image code quality adjustable, variable bitstream and constant bitstream optional |
|
Dual Stream |
Each channel can set main stream and sub stream |
|
Video Standard |
1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps |
|
Monitoring Image Quality |
1080P(1920×1080) / 960P/(1280×960)/720P(1280×720) |
|
Image Motion Detection |
Each screen can set multiple detection areas and set 6-level sensitivity |
|
Recording Playback Quality |
Any 4ch 1080P/720P playback simultaneously |
|
Region Cover |
Every channel can set 4 cover regions(IPC Support) |
|
Recording Mode |
Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support) |
|
Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW. network storage and backup |
|
Operation Way |
Mouse, remote control, front panel |
|
Local Login |
User name and password |
|
Recording Storage |
Local HDD, network |
|
|
External Ports |
Video Input |
1. 20×(1280*960)+sub[640*480]+4Ref.+4Play 20ch 1.3MP IP Camera |
2. 9x(1920*1080)+sub[960*576]+4Ref.+4Play 9ch 2.0MP IP Camera | ||
3. 4×(2048*1536)+sub[960*576]+4Ref.+4Play 4ch 3.0MP IP Camera | ||
4. 20×(1280*960)+sub[720*576]+1Ref.+4Play 20ch 1.3MP IP Camera | ||
5. 16x(1920*1080)+sub[720*576]+1Ref.+4Play 16ch 2.0MP IP Camera | ||
Audio Input |
16ch network audio input |
|
Video Output |
1ch VGA+1ch HDMI |
|
Audio Output |
1ch RCA output |
|
Network Port |
1 RJ45,10M/100M/1000M self-adaptive LAN port |
|
RS485 Port |
Full duplex standard 485 port |
|
USB Port |
3 USB 2.0 ports (one on front panel, two on rear panel) |
|
Alarm Input |
4ch |
|
Alarm Output |
1ch |
|
Wireless Port |
3G,WIFI |
|
HDD |
HDD Port |
2 SATA HDD Port |
MAX Capacity |
Each port supports MAX 4TB HDD |
|
Mobile Surveillance |
Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
|
Power Supply |
12V3.3A |
|
Power Consumption |
≤25W(without HDD) |
|
Working Temperature |
-10℃~+55℃ |
|
Working Humidity |
10%-90% |
|
Dimension |
Equipment:350mm×240mm×70mm, Packing: 409mm×365mm×129mm |
|
Weight(without HDD) |
N.W.:1.7Kg;With packing:2.89Kg |
|
Outside Carton |
5 pcs/carton. 675mm×425mm×385mm; Weight:15.22 Kg |
|
Installation Way |
Desktop Installation |
|
DV7016M Port:
COOP SECURITY(CHINA)LIMITED is one of the leading factories which develop and produce CCTV products in China, supported by the Chinese government as the most importantly developed company. All the models are produced by machine automatically.It has a Research and Development Center in Taiwan, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Taipei International Show:
1. Transportation: UPS, TNT, DHL, EMS or FEDEX.
2. Item will be shipped out within 7 working days upon receipt of the payment.
3. Shipment may arrive within 5 – 16 days. Actual delivery days would be different for varies countries.
1. Pls report us if there are any problem, we will solve it ASAP.
2. This items comes with 2 YEARS
Q: How long your delivery time?
A: In general, the time is about one week.
Q: What’s your payment?
A: We accept payment by TT Bank Transfer in this stage.
