CE ROHS Recessed Round Led Downlighting With Years Warranty
- Shenzhen
- T/T Money Gram Credit Card
You May Like
Product Details
| LED Light Source | SMD3528 | Warranty(Years) | 3 | |
| Input Voltage(V) | 100-240V | Lamp Power(W) | 18 | |
| Lamp Luminous Flux(lm) | 1600 | Lamp Luminous Efficiency(lm/w) | 90 | |
| Color Temperature(CCT) | Pure White | Working Temperature(℃) | -25, 50 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | IP44 | Certification | CCC, CE, EMC, FCC, LVD, PSE, SAA, UL | |
| Place of Origin | Guangdong, China | Brand Name | Gielight | |
| Model Number | GL-PL |
Product Description
Specifications
led downlighting1. Ultra thin:13.7mm
2. edg-lit,no dark area
3. CE,PSE,FCC RoHS

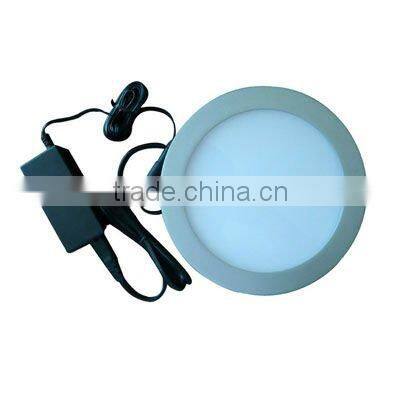

led downlight
ultra-thin round led panel lights
1.Ultra thin, edge-lit
2.No any dark area
3.100-240VAC, UL Driver
4.CE RoHS


Specification
| Type No. | Wattage | LED Type | LED Qty | Lumen | Actual Size(R*H) |
GL-PL-R240B | 18W | 12-14lm SMD3528 | 160pcs | 1260±10% | Dia.240*19mm |
GL-PL-R197B | 12W | 12-14lm SMD3528 | 104pcs | 850±10% | Dia.197*16mm |
GL-PL-R197A | 10W | 8-9lm SMD3528 | 104pcs | 700±10% | Dia.197*16mm |
GL-PL-R175B | 10W | 12-14lm SMD3528 | 88pcs | 700±10% | Dia.175*13.7mm |
GL-PL-R175A | 8W | 8-9lm SMD3528 | 88pcs | 550±10% | Dia.175*13.7mm |
Electrical Parameters
LED Panel Output Voltage: 26-30VAC
External Driver Input Voltage: 100-240Vac
Frequency: 50/60Hz
Optical Parameters
Light Efficiency: 75-85LM/W
Color Temperature: Pure white, Warm white, Amber white
Other Parameters
Product Patents: Yes
Operating Temperature: -20°C-50°C
Storage Temperature: 0-35°C
Appearance: Frosted
Main Material: Aluminum Alloy+ Optical PMMA
IP Rating: IP40
Life Span: 50,000hours
Warranty: 3 years
a. Within the warranty period, Gielight provides free repairing service. If the certain item can not be repaired, Gielight will offer the new one for replacement at no extra cost.
b. Within the warranty period, Gielight bears the shipping cost back and forth for replacing the defective goods, on condition that the defection rate equals to or exceeds 2% of the ordered quantity for each shipment.

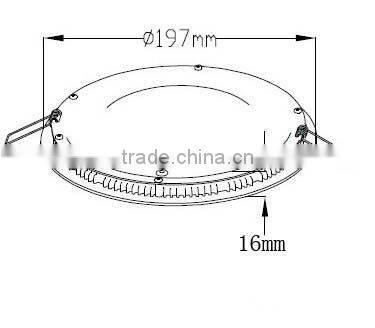

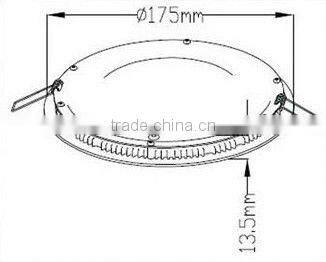

Size Instruction

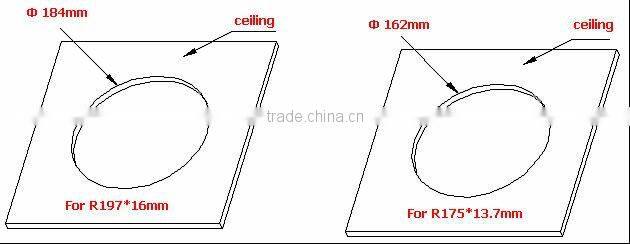

Cutting size on the ceiling

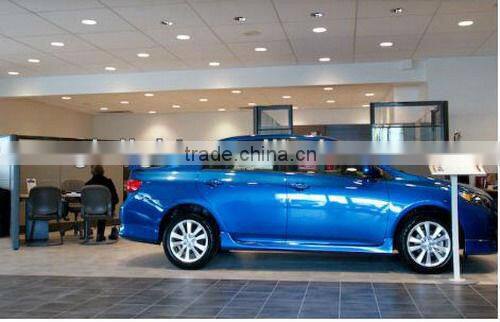

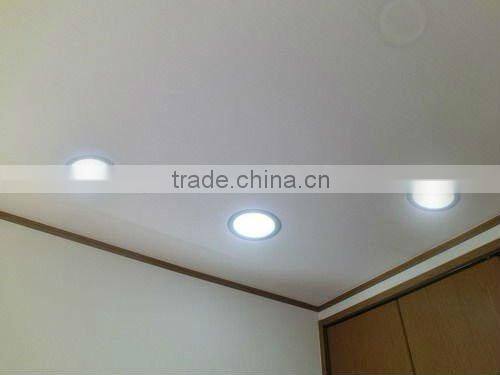

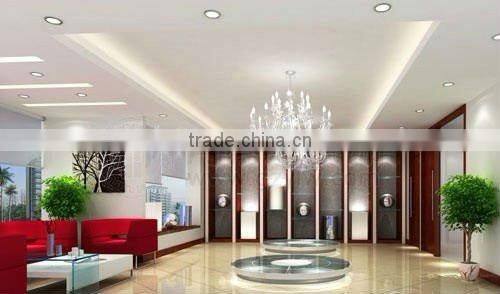

Application

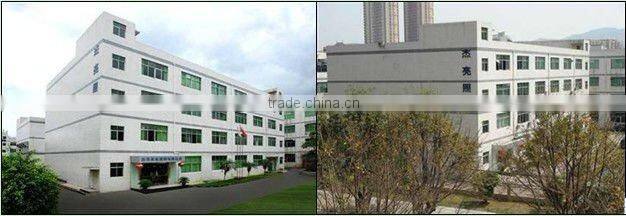

Gielight Building

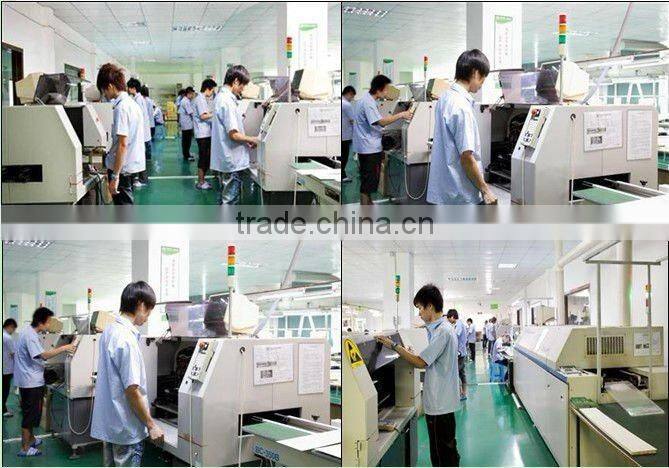

Machines

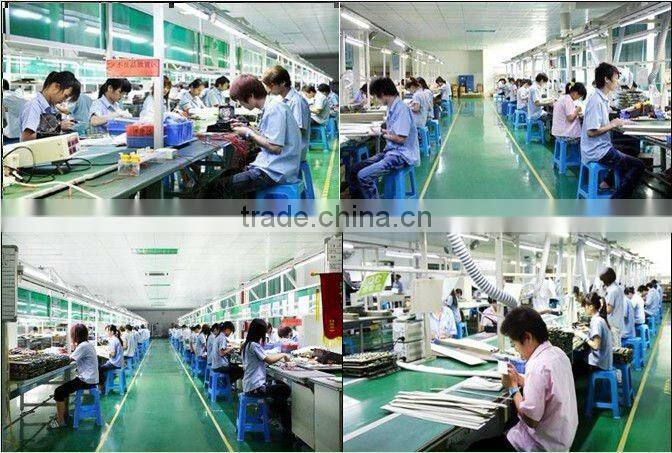

Production Lines

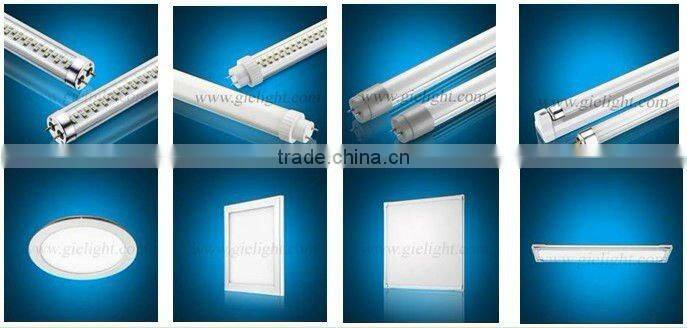

Our Products
Pls feel free to contact us for more info, thank you in advance!
