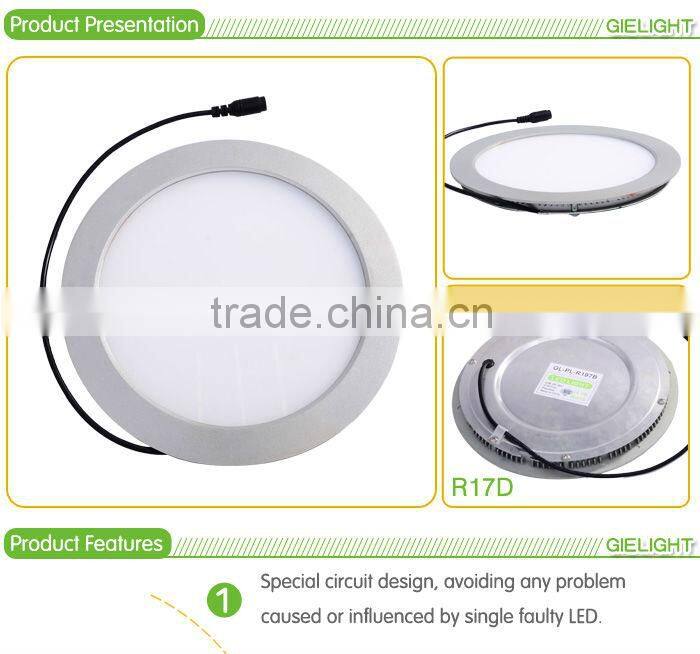

Led Ceiling Office Panel Lighting 175mm 10w Led Round Panel Light Kit CE,RoHS Approved

Led Ceiling Office Panel Lighting 175mm 10w Led Round Panel Light Kit CE,RoHS Approved thumbnail-1
Led Ceiling Office Panel Lighting 175mm 10w Led Round Panel Light Kit CE,RoHS Approved photo-1
US$ 10 - 30 MOQ: 5 Pieces
Key Specifications
Get Latest Price
LED Light Source:
led chip
Warranty(Years):
3
Input Voltage(V):
100-240V
Contact Supplier Request Quote Chat Now
Gielight Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source led chip
Warranty(Years) 3
Input Voltage(V) 100-240V
Lamp Power(W) 10
Lamp Luminous Flux(lm) 750
Lamp Luminous Efficiency(lm/w) 70
Color Temperature(CCT) Warm White
Working Temperature(℃) -25, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating IP44
Certification CE, FCC, PSE, SAA
Place of Origin Guangdong, China
Brand Name Gielight
Model Number GL-PL-R175

Specifications

led ceiling office panel lighting
1.Input Voltage:100-240Vac
2.Cutting size:162mm
3.PF:80%
4.Epistar Led chip

Led ceiling office panel lighting 175mm 10w led round panel light kit  CE,RoHS approved



Detailed Product Description:

10W round led panel light,70lm/W

1. Ultra thin:13.5mm

2. Uniform light distribution,no dark area.

3. CE,UL,CUL,SAA, RoHS .

4. 175,197,240mm,10W,12W,18W

5.Installation choice: Recessed,Suspended,Surface Mounted.



Led round panel light, UL driver.



Model

Power

LED Qty

LED Type

Lumen

Voltage

Actual Size(D*H)

GL-PL-R175A

10W

88PCS

3528 SMD

780lm±10%

100-240VAC

φ175*13.7mm

GL-PL-R197A

12W

104PCS

3528 SMD

850lm±10%

100-240VAC

φ197*16mm

GL-PL-R240A

18W

160PCS

3528 SMD

1200lm±10%

100-240VAC

φ240*13.7mm




Parameters:

LED Panel Output Voltage:   24-30Vdc

Light Efficiency: 70LM/W

Color Temperature: 2700-3500k,4000-4500k,5700-6500k

Operating Temperature: -5°C-50°C

Appearance: Frosted

Main Material: Pure Aluminum (Frame&back cover) + Acrylic  frosted cover.



Certificates:

CE(LVD),CE(EMC); ROHS,FCC, UL,CUL



Warranty: 3 years

Within the warranty period, Gielight bears the shipping cost back and forth for replacing  defective goods.



Applications:

1.Houses,offices,shop,showroom,supermarket,hospital,meeting-room,corridor,Restaurant, ....
