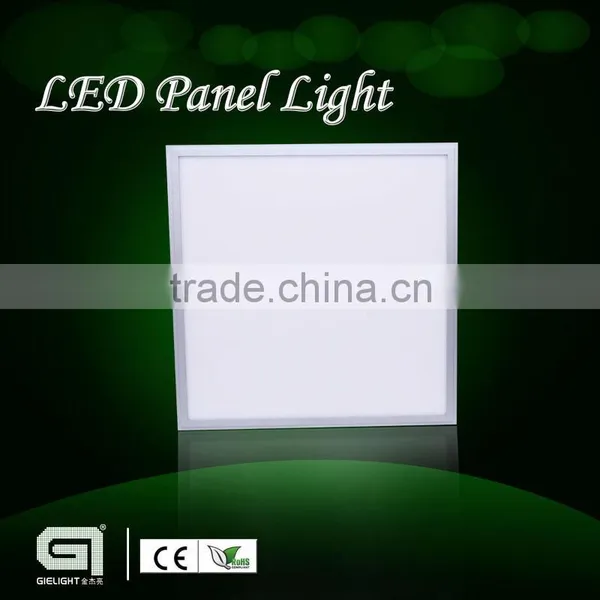

Gielight 300*600mm 300*1200mm 600*600mm Led Suspended Ceiling Lighting Panel

Gielight 300*600mm 300*1200mm 600*600mm Led Suspended Ceiling Lighting Panel thumbnail-1
Gielight 300*600mm 300*1200mm 600*600mm Led Suspended Ceiling Lighting Panel photo-1
US$ 53 - 123 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
SMD2833
Warranty(Years):
3
Input Voltage(V):
100-240
Contact Supplier Request Quote Chat Now
Gielight Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD2833
Warranty(Years) 3
Input Voltage(V) 100-240
Lamp Power(W) 43
Lamp Luminous Flux(lm) 3500
Working Temperature(℃) -40, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CCC, CE, FCC
Place of Origin Guangdong, China
Brand Name GL
Model Number GL-PL

Specifications

aluminum ceiling panel 600600
1.Ultra thin: 13mm only.
2.Full size: 60*120,30*120,60*60,30*30,30*60,30*90cm
3.Warranty:

300*600mm 300*1200mm 600*600mm led suspended ceiling lighting panel



High power

  Type No.

 Watt

   LED Type

      Lumen

Actual Size(L*W*H)

GL-PL-S300*300

20W

Taiwan SMD

814±10%

295*295*13mm

GL-PL-S300*600

28W

Taiwan SMD

1460±10%

295*595*13mm

GL-PL-S300*900

34W

Taiwan SMD

1860±10%

295*895*13mm

GL-PL-S600*600

43W

Taiwan SMD

3000±10%

595*595*13mm

GL-PL-S300*1200

50W

Taiwan SMD

3400±10%

295*1195*13mm

GL-PL-S600*1200

65W

Taiwan SMD

4500±10%

595*1195*13mm

 Low power

  Type No.

 Watt

   LED Type

      Lumen

Actual Size(L*W*H)

GL-PL-S300*300

15W

Taiwan SMD

700±10%

295*295*13mm

GL-PL-S300*600

20W

Taiwan SMD

1050±10%

295*595*13mm

GL-PL-S300*900

22W

Taiwan SMD

1350±10%

295*895*13mm

GL-PL-S600*600

32W

Taiwan SMD

2200±10%

595*595*13mm

GL-PL-S300*1200

33W

Taiwan SMD

2300±10%

295*1195*13mm

GL-PL-S600*1200

45W

Taiwan SMD

3200±10%

595*1195*13mm



Electrical Parameters:

LED Panel Output Voltage: 26-30Vdc

External Driver Input Voltage: 90-240Vac

Frequency: 50/60Hz



Optical Parameters:

Light Efficiency:    75-85LM/W

Color Temperature:  Pure white-5500-6500K, Warm white-4000-4500k, Amber white-2700-3500k.



Other Parameters:

Product Patents:  Yes

Operating Temperature:  0°C-35°C

Appearance: Frosted

Main Material: Aluminum Alloy+ Optical PMMA

IP Rating: IP40

Life Span: 50,000hours



Application: Hotel, supermarket, office, building, Gym centre,shop, hospital...



Warranty: 3 years





  Gielight 300*600mm 300*1200mm 600*600mm led suspended ceiling lighting panel

 Cable between panel and driver

  Gielight 300*600mm 300*1200mm 600*600mm led suspended ceiling lighting panel



  Driver



  Gielight 300*600mm 300*1200mm 600*600mm led suspended ceiling lighting panel

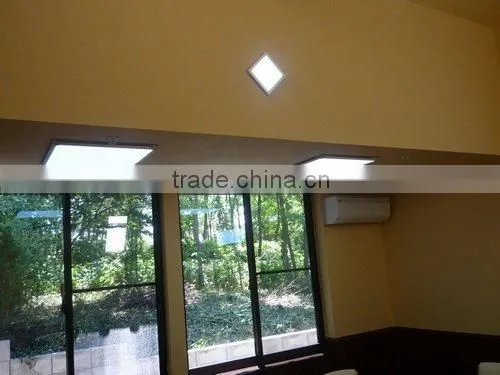

  Application



  Gielight 300*600mm 300*1200mm 600*600mm led suspended ceiling lighting panel



  Gielight 300*600mm 300*1200mm 600*600mm led suspended ceiling lighting panel



Taiwan SMD

5500
