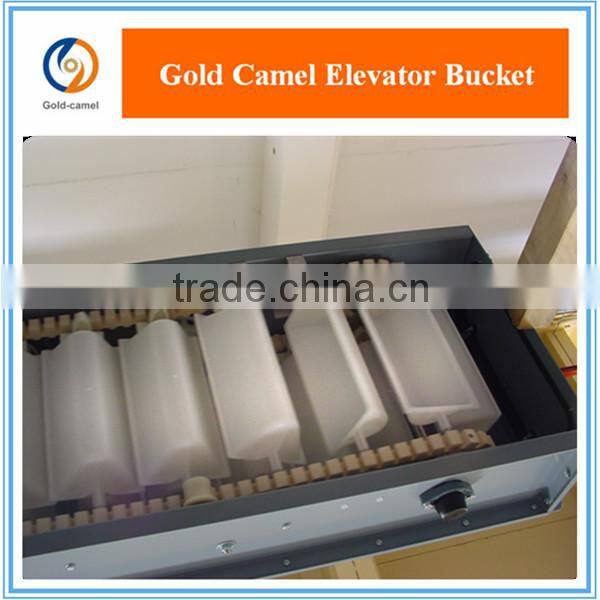

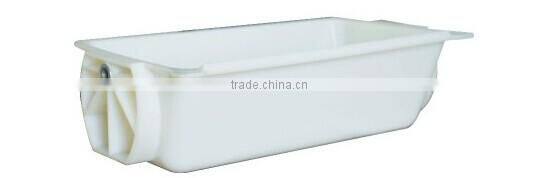

Link chain elevator bucket
Specially designed for chain conveyors with horizontal product transmission
Used in handling grains, feeds, fertilizers, seeds, salt and chemicals .
Raw material comparison
Material |
Mild Steel |
Stainless |
HDPE |
Nylon |
Reinforced Nylon |
Polyurethane |
Cost |
2 |
4 |
1 |
3 |
3 |
4 |
Wear resistance |
3 |
4 |
1 |
2 |
3 |
4 |
Impact Resistance |
2 |
2 |
1 |
2 |
3 |
2 |
FDA Approved |
NO |
OK |
OK |
OK |
OK |
NO |
Max Temp °C |
180+ |
250+ |
70 |
100 |
110 |
60 |
Max Temp °C Peak |
220 |
400 |
80 |
120 |
130 |
70 |
Remark: code 1=low, 4=high
Property of Raw material
HDPE: tough and flexible,suitable for handing grains, foodstuffs and other produts with no sharp edges and material that has a bulk density of less than 1g/cm3.
Nylon: high impact and abrasion resistance, better heat and are well suited for handing hot, abrasive and sticky products.

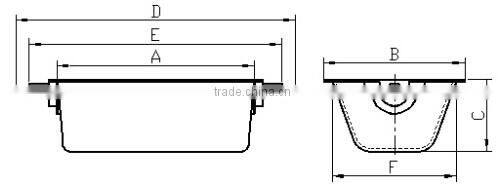

Measure the size of bucket
Size: mm
| Model | A | B | C | D | E | F | Volume |
| LL2412 | 246 | 122 | 60 | - | 280 | 110 | 1.2 |
| LL2619 | 260 | 190 | 78 | 340 | 310 | 175 | 2.3 |
| LL3115 | 310 | 150 | 75 | - | 350 | 135 | 2.3 |
| LL3219 | 330 | 200 | 110 | - | 370 | 173 | 3.2 |
| LL3319 | 330 | 198 | 103 | 440 | 400 | 173 | 4.0 |
| LL3321 | 356 | 215 | 105 | 410 | 180 | 3.0 | |
| LL3821 | 380 | 213 | 125 | 480 | 430 | 195 | 4.8 |
| LL3921 | 390 | 218 | 120 | - | 440 | 200 | 4.8 |
| LL4013 | 406 | 133 | 69 | 510 | 460 | 115 | 2.0 |
| LL6323 | 632 | 236 | 120 | 760 | 720 | 210 | 11.0 |
More bucket styles
Wooden box:
Link chain elevator bucket: PVC Bag
Sample:
Normally costs of samples and freight is charged. Sample costs shall be refunded to customer upon bulk orders. Samples will be shipped via express like DHL/UPS etc.. upon receipt of sample costs.
How to order your buckets:
Step1: choose bucket material
Step2: measure the size of bucket
Step3: choose the vent pattern, if needed
Step4: bucket style
Mould Customized:

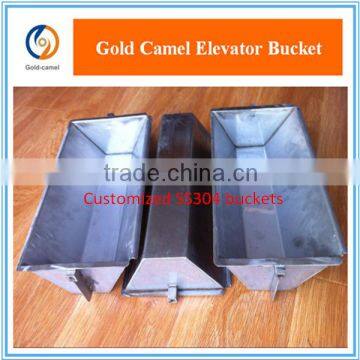

According to your buckets, we also offer customized ss304 bucket.
Successful example: Hofuf Saudi Arabia
Having specialized in mechanical conveyor systems products for more than 15 years, Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009,to seize more progressive development,Gold Camel got combined with Zhejiang Three-V Industry Group,which is a key Conveyor System & Rubber products manufacturer of about 20 years history in China.
Our products are designed and produced under ISO9001 system and strict quality control,which covers various kinds of Conveying System and Fittings, especially Elevator Buckets.
