Home > Tools & Hardware > Hydraulic Parts > Hydraulic Cylinder > D Type Grain Elevator Bucket

D Type Grain Elevator Bucket

US$ 1 - 30 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

OEM

Model Number:

Contact Supplier Request Quote Chat Now

Zhejiang Three-V Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name OEM

Model Number D

D type grain elevator bucket

Product Description

Thicker edge aim to increase abrasive resistance.

Reinforced ribs are greater structural integrity

Raw material comparison

Material	Mild Steel	Stainless	HDPE	Nylon	Reinforced Nylon	Polyurethane (PU)
Cost	2	4	1	3	3	4
Wear resistance	3	4	1	2	3	4
Impact Resistance	2	2	1	2	3	2
FDA Approved	NO	OK	OK	OK	OK	NO
Max Temp °C	180+	250+	70	100	110	60
Max Temp °C Peak	220	400	80	120	130	70

Remark: code 1=low, 4=high

Property of Raw material

HDPE: tough and flexible,suitable for handing grains, foodstuffs and other produts with no sharp edges and material that has a bulk density of less than 1g/cm^3_.

Nylon:high impact and abrasion resistance, better heat and are well suited for handing hot, abrasive and sticky products.

PU: extreme abrasion resistance,tough and flexible, used in handling sharp, cutting and sticky products.

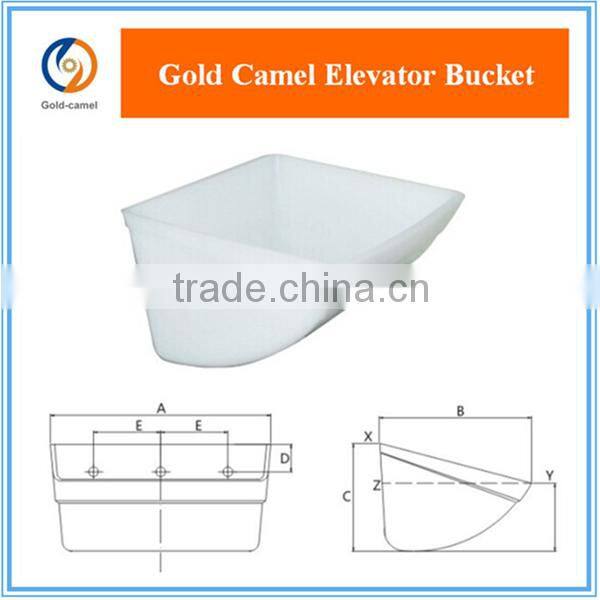

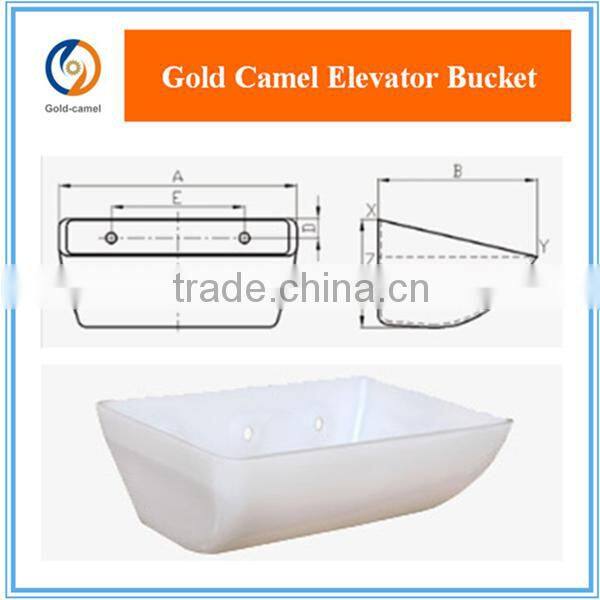

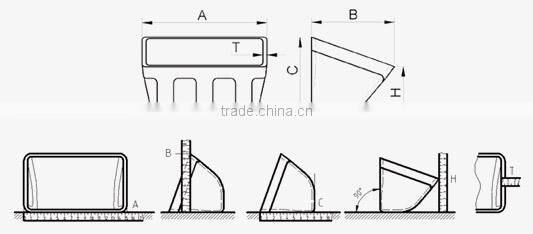

Measure the size of bucket

Specification

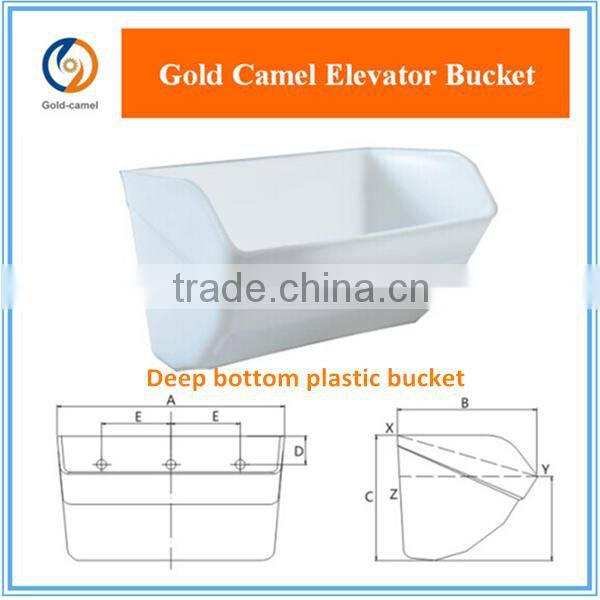

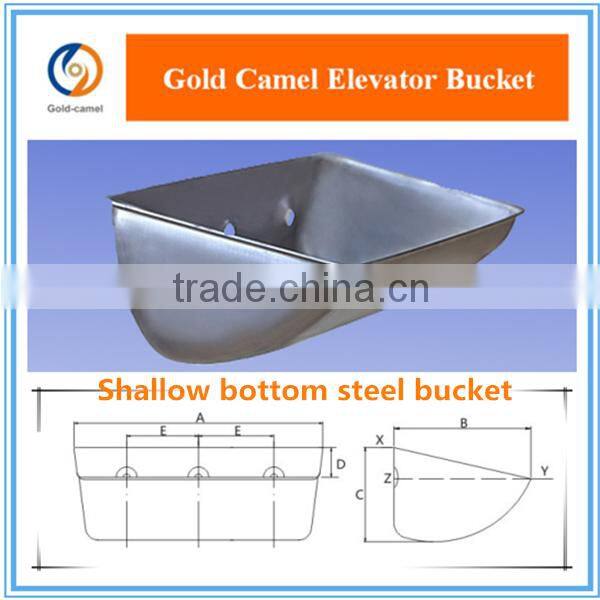

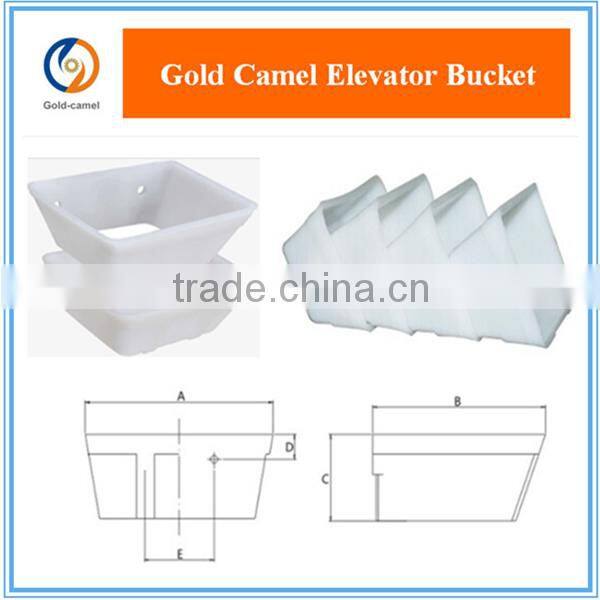

Model	A	B	C	D	E	Hole QTY	Hole D	Capacity L
Model	mm	mm	mm	mm	mm	Hole QTY	mm	Water level +10%	Water level
D4*3	107	81	75	22	50	2	7	0.28	0.25
D5*4	133	113	106	32	60	2	7	0.65	0.59
D6*4	159	108	103	32	90	2	7	0.72	0.65
D7*4	184	108	103	32	120	2	9	0.83	0.75
D6*5	168	140	130	40	90	2	9	1.21	1.10
D7*5	192	140	130	40	120	2	9	1.32	1.20
D8*5	211	140	130	40	120	2	9	1.55	1.41
D9*5	237	140	130	40	85	3	9	1.93	1.75
D11*5	289	140	130	45	100	3	9	2.21	2.01
D8*6	211	168	154	45	120	2	9	2.28	2.08
D9*6	237	168	154	40	85	3	9	2.57	2.34
D10*6	266	168	154	45	90	3	9	2.84	2.58
D11*6	287	168	154	45	100	3	9	3.11	2.83
D12*6	313	168	154	45	85	4	9	3.48	3.16
D13*6	338	168	154	45	85	4	9	3.78	3.44
D14*6	368	168	154	50	95	4	9	4.15	3.77
D9*6-1/2	230	180	180	45	75	3	9	2.78	2.53
D10*6-1/2	280	180	180	45	100	3	9	3.52	3.20
D10*7	269	197	180	50	90	3	9	4.07	3.70
D11*7	287	197	180	45	100	3	9	4.35	3.95
D12*7	326	197	180	45	85	4	9	4.79	4.35
D13*7	343	197	180	45	90	4	9	5.58	5.07
D14*7	373	197	180	50	95	4	9	5.74	5.22
D15*7	392	197	180	50	100	4	9	6.68	6.07
D16*7	427	197	180	48	85	5	9	6.95	6.32
D11*8	280	220	216	55	65	4	9	5.40	4.91
D12*8	331	222	206	55	85	4	9	6.35	5.77
D12*8-1/2	330	220	216	55	85	4	9	6.55	5.95
D14*8	378	222	206	55	95	4	9	7.56	6.87
D14*8-1/2	380	220	216	55	75	5	9	7.69	6.99
D15*8	392	222	206	55	80	5	9	8.73	7.94
D16*8	434	222	206	55	85	5	9	8.91	8.10
D18*8	473	222	206	55	95	5	9	9.98	9.07
D20*8	520	225	210	55	90	6	9	11.66	10.60
D16*9	430	260	260	65	68	6	11	12.10	11.00
D1109	116	92	85	25	60	2	7	0.30	0.27
D1311	134	115	94	35	60	2	7	0.56	0.51
D1411	145	110	96	35	60	2	7	0.71	0.65
D1814	188	140	130	40	120	2	9	1.49	1.35
D2314	235	140	130	40	85	3	9	1.60	1.45
D2814	280	140	139	40	100	3	9	1.87	1.70
D2816	282	168	154	45	90	3	9	3.01	2.74

More bucket styles, please click the following linked products!!

Packaging & Shipping

Wooden box:

PVC bag

FAQ

Sample:

Normally costs of samples and freight is charged. Sample costs shall be refunded to customer upon bulk orders. Samples will be shipped via express like DHL/UPS etc.. upon receipt of sample costs.

How to order your buckets:

Step1: choose bucket material

Step2: measure the size of bucket

Step3: choose the vent pattern, if steel buckets

Step4: bucket style

Mold Customized:

A new mould costs range from $1500 to $6000, which depends on the size and material of customized buckets. We will return the charge when your total quantity reaches a certain quantity.
