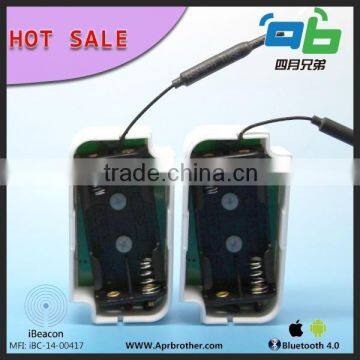

IBeacon/ibeacons project custom enhanced BLE 4.0 near base station module positioning range
- 200000 Set / Sets per Month
- Beijing
- T/T L/C D/P D/A Credit Card PayPal
- Cisco Fiber Switches N9K-C93180YC-FX
- SIERRA AR7586
- Quectel LC29D GPS Beidou Inertial Guidance Module
- telit 4G module LE910C4-NF
- Acrel 4G LORA communication AWT200-1E4S1-4G/LR Intelligent data communication gateway, supports 4-way serial port
- Acrel Wireless communication terminal Supports centralized collection of up to 10,000 points AWT200-1E8SL
Product Details
Place of Origin: | Beijing, China | Brand Name: | AprilBeacon | Model Number: | AprilBeacon 227A |
Product Description
Thank you for choosing us
Our site is :
We are the earliest manufacturer of beacons with iBeacon technology in China. We provide integrated deployment guide for iBeacon users.
We provide customized service such as beacon name, logo printing , ibeacon App development and etc.
IBeacon/ibeacons project custom enhanced BLE 4.0 near base station module positioning range
Product Description:
1, Easy and Rapidly to customize a casing in very low cost;
2,UUID, Major, Minor, Pairing Password and other parameters can be changed by customer;

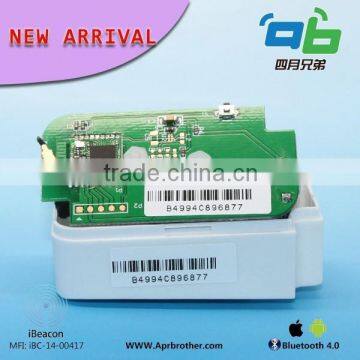

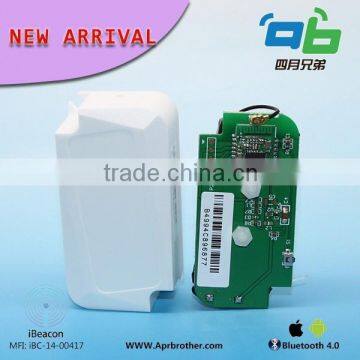

3,Mac address stickers on both PCB and Case.
4,Based on TI's CC2540/AAA battery,bluetooth low energy module.
5,Support for IOS7.0,Android 4.3 or later
6,Effected range:25M and size is 61mmx39mmx15mm
7,low energy module for battery life 12 months for default frequency 600ms,TX power 0f 0dbm.
8,Certification: Apple Licensed, CE and FCC certifications;
Ibeacon Description:
- Run standalone as iBeacon, External host is not required.
- Application for advertisement and location
- Built in pairing password to prevent others to modify the settings
- Support customize your own iBeacon configuration including UUID etc.
- Tx Power configurable
- Advertising frequecy configurable
- Support upgrade firmware through OAD (air upgrade)
- Built in JTAG port for customized other application firmware as a standalone system
Item | Value | Remarks |
Firmware | iBeacon | Version 2.0.1 |
Battery model | AAA | 2PCS |
Operation Frequency | 2400-2483.5MHz | Programmable |
Frequency Error | +/- 20KHz |
|
Modulation | Q-QPSK |
|
Standby current | 100uA | Depends on duty cycle/broadcasting frequency |
Broadcasting Frequency | 600mS | Duty cycle |
Output Power | 0 dBm | Default setting, programmable |
Receiving Sensitivity | -93dBm | High gain mode |
Transmission distance | 30 meters | BER<0.1%, Open space |
Antenna | 50ohm | External |
Size | 31.08mm*31.08mm*9mm | case size: 57.6 * 18.9 * 7.6 mm |
Operation Voltage | 2.0-3.6V | DC |
Default Setting:
Default iBeacons UUID(The sample from Apple's AirLocate): E2C56DB5-DFFB-48D2-B060-D0F5A71096E0
Major and minor identifier: 1,1
Pairing password: AprilBrother
How to modify iBeacon parameters :
You could modify the parameters (bulk) by the APP named with Aprilbeacon directly. .
You could search Aprilbeacon from App store or googleplay.
Parameters: UUID/Major/Minor/output power/broadcasting frequency .
Aprilbeacon is the first company in the world to enable this function.
Our service:
1,Customize the case with your logo & customize the firmware of iBeacon
2,Pre-configure the value of parameter before the shipment.
3,Package case can be customized if required.
4,APP & SDK for IOS&Android 4.3 provided.
5,We have professional team provide any consultation or advice needed.
6,SDK is available to help customers build their own APP or use our APP.
Battery Consumption:
Our company's advertisement at the China Sourcing (HK) Fair Magazine 2015
Our Advantage:
We are the largest iBeacon provider here in China. We have several customers which are the biggest Indoor navigation service providers. They have bought bunch of our beacons in their projects. During the process of providing deployment services, we have developed many features in our APP, and gained abundant practical experiences in batching deployment.
1)Our App AprilBeacon(both Android and iOS version) have batch function, can update UUID etc automatically.
2)We have Mac address on both case and PCB. So it is easy to recognize with specific one.
3)We have 227A which has 2 AAA batteries, long term power supply significantly reduce maintenance cost.
4)During the maintaining process, you will face many problems such as iBeacon lost, battery low power etc. We have platform Skymap(). It is a online service for your operational groups.
Do you lile those modules?
How to use our ibeacons:
System requirements: Android 4.3 and IOS7 or later

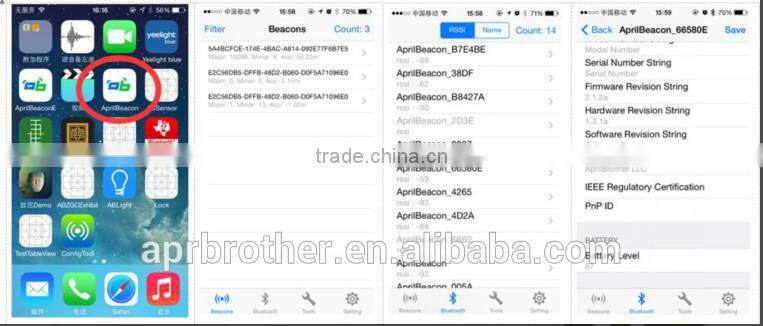

App has three main function menus: Beacons, Tools, Setting.
Also ,Here is link for you how to use our ibeacon for IOS system:
/p/228
How to contact us:
Contact:Penny Chen
Skype:aprbrother
Trademanager:cn1510714036
Tel: 86-10-5629 0047
Technical forum:
