Bluetooth 4.0 Wifi IBeacon Receiver
US$ 35 - 35
MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
AprilBeacon
Model Number:
Wifi iBeacon Receiver
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wristband /Bracelet Beacon With IBeacon & Eddystone TechnologyUS$ 8.90 - 12.50MOQ: 2 Sets -
Bluetooth 4.0 Wireless IBeacon ReceiverUS$ 35 - 35MOQ: 2 Sets
-
Bluetooth Silicone Bracelet Compatible With IBeacon &Eddystone Smart Beacon Wristband/Bracelet/KeyringUS$ 10.00 - 12.00MOQ: 2 Sets
-
New Arrival Bracelet IbeaconUS$ 6 - 12MOQ: 2 Sets
-
New Arrival Waterproof Wristband Beacon/ibeaconUS$ 3 - 12MOQ: 2 Sets
Place of Origin
Beijing, China
Brand Name
AprilBeacon
Model Number
Wifi iBeacon Receiver

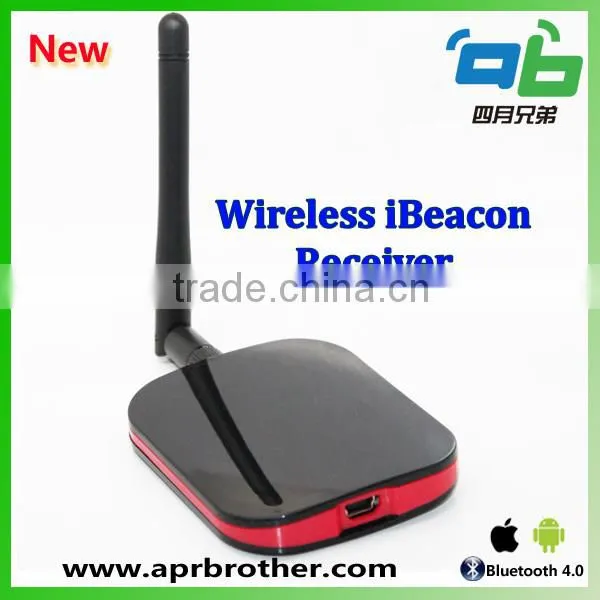

WiFi iBeacon Receiver
|
The Wireless iBeacon Receiver can work as Bluetooth 4.0 receiver. It will scan the iBeacon device nearby and post to the remote server side. The device work as Wi-Fi station status. It will connect the Wi-Fi AP and connect to internet.
Specifications
|
Hardware
| Parameters | Description | Remark |
| Work Voltage | 5V DC / 2A | |
| Power Interface | MINI-USB | |
| Bluetooth Protocol | Bluetooth 4.0 | |
| Receiving Sensitivity | -93dBm | High gain mode |
| Bluetooth Antenna | 50 Ohm | External 2dBm antenna |
| Bluetooth Scan Duration | Configure as 1 - 10 seconds | 1 second default |
| Wi-Fi Antenna | 50 Ohm | PCB antenna |
| Work with Wi-Fi AP | 2.4G Wi-Fi AP only | |
| Working Temperature(C) | -20 ~ 65 |
How it worked
TODO
Applications
- Indoor Location
- Meeting sign in
- Check in
- Parking & Checking in
- Sensor data collection
- Home automation
- User data collection
- ...
Quick Start
- Prepare an iPhone and download app Wi-Fi Starter
- Power on Wireless iBeacon Receiver
- When the yellow led on, the device prepare for connect Wi-Fi AP. Configure the Wi-Fi SSID and password by app Wi-Fi Starter.
- Open app Wi-Fi Starter,type in SSID and password and tap Start.Wait a moment, the app will receive a notification for device discovering, now Wi-Fi config ok. (Note: Only work with 2.4G Wi-Fi AP)
- Re-power the receiver. The receiver will connect a MQTT Broker provide by ApilBrother default. -
- Download the free software mosquitto to access the beacon datas uploaded by the receiver.
Please refer the "How To Config" Section for more information.
Transport Protocol And Data Format
The transport protocol is MQTT. Here's a sample data.
{
"id":"ABCDEF123456",
"raw_beacons_data":"F4B85ED84CB7123456781234123412341234123412347DAD33B1C6FF41;0117C538C0CF23A01AF0232A45189C0E323FB773F5EF00100020B3FFB2;"
}
It's a json data. The key "id" is the MAC address for the receiver. The key named "raw_beacons_data" contains the beacon datas. The iBeacon datas are splitted by semicolon. The sample data F4B85ED84CB7123456781234123412341234123412347DAD33B1C6FF41
| Bytes | Description | Example |
| 0 - 12 bytes | Mac address for beacon | F4B85ED84CB7 |
| 13 - 45 bytes | iBeacon's UUID,32 bytes | 12345678123412341234123412341234 |
| 46, 47 byte | major | 7DAD |
| 48, 49 byte | minor | 33B1 |
| 50 byte | measured power,minus 255 for real value | C6 |
| 51 byte | Battery level in percent, there will be FF if battery level unknown | FF |
| 52 byte | RSSI,minus 255 for real value | 41 |
How to Config
- Wi-Fi Config
- MQTT Config
Community
More Details, please refer to below link:
/wiki/Wireless_iBeacon_Receiver
Order from us and join our R&D bbs now !
Contact:Julia Zheng
Skype:aprilbeacon
