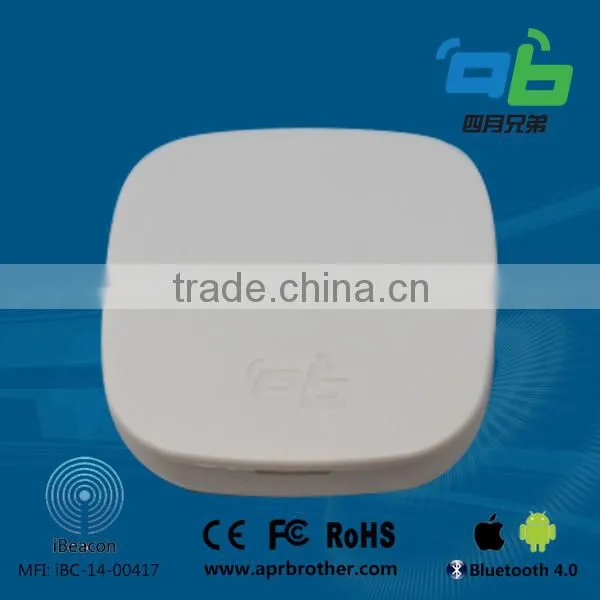

Hot Sale Cheap Wholesale iBeacons CC2541 module Bluetooth
company site:
We are the largest iBeacon provider here in China. We have several customers which are the biggest Indoor navigation service providers. They have bought bunch of our beacons in their projects. During the process of providing deployment services, we have developed many features in our APP, and gained abundant practical experiences in batching deployment.
1) Our App AprilBeacon(both Android and iOS version) can detect and modify beacon's uuid, major, minor and other parameters.
2) Batch modify function help you change beacons' parameters in bulk.

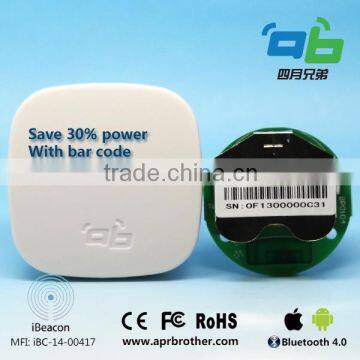

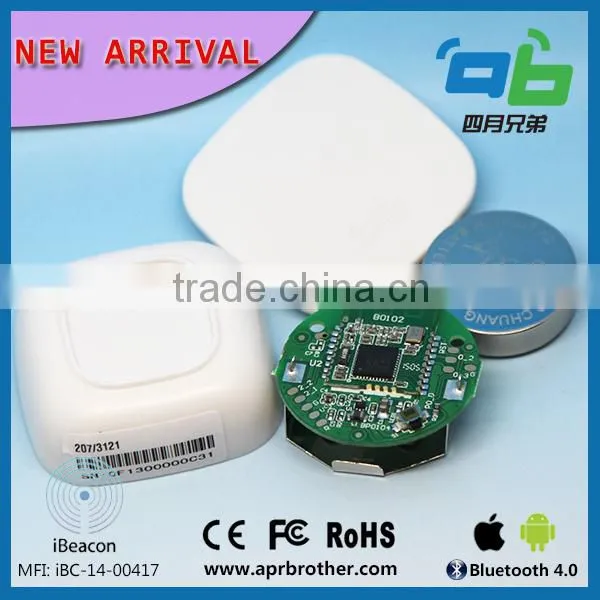

3) Mac address barcode on cases, easy to recognize specific one.
4) During the maintaining process, you will face many problems such asiBeacon lost, battery low power etc. We have platform Skymap(). It is a online service for your operational groups.
5) Our certificates: MFI certification iBC-14-00417, ISO9001:2008, CE, FCC, RoHS
Strong point:
Specifications:
- MFI certification iBC-14-00417
- Built-in iBeacon firmware

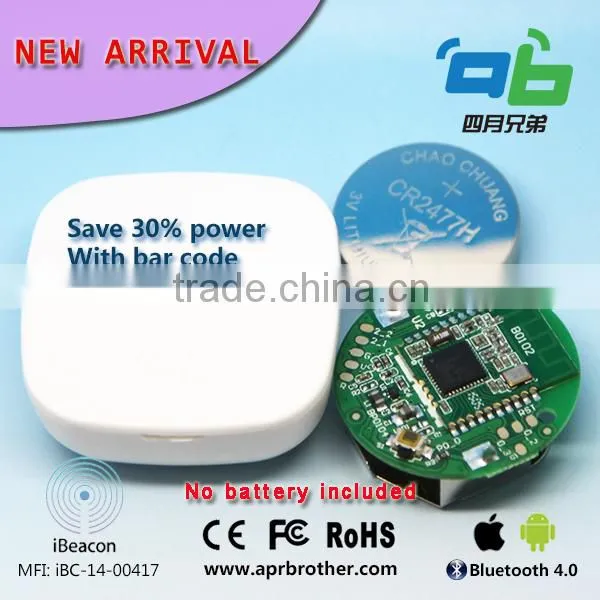

- Built-in a coin battery holder
- Bluetooth low energy technology compatible
- Accurate digital RSSI
- High performance and low power 8051 core MCU
- AES security coprocessor
- Tested with iOS 7.0
iBeacon Descriptions:
- Run standalone as iBeacon, External host is not required.
- Application for advertisement and location
- Built in pairing password to prevent others to modify the settings
- Support customize your own iBeacon configuration including UUID etc.
- Tx Power configurable
- Advertising frequecy configurable
- Support upgrade firmware through OAD (air upgrade)

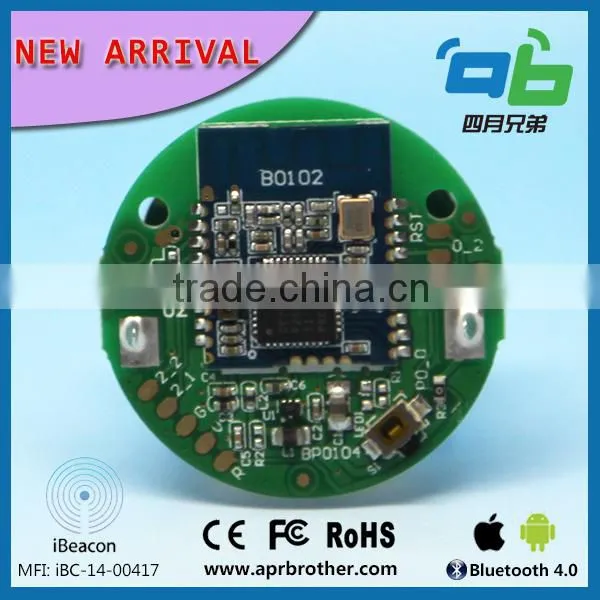

- Built in JTAG port for customized other application firmware as a standalone system
-
Item Value Remarks Firmware iBeacon Version 2.0.1 Battery model CR2450 Coin battery, 3.0Vdc, 1 pc Operation Frequency 2400-2483.5MHz Programmable Frequency Error +/- 20KHz Modulation Q-QPSK Standby current 100uA Depends on duty cycle/broadcasting frequency Broadcasting Frequency 900mS Duty cycle Output Power 0 dBm Default setting, programmable Receiving Sensitivity -93dBm High gain mode Transmission distance 25 meters BER<0.1%, Open space Antenna 50ohm On board/ PCB Antenna Size 31mm*31mm*9mm case size:39mm*39mm*15mm Operation Voltage 2.0-3.6V DC
Default setting:
Default iBeacons UUID(The sample from Apple's AirLocate): E2C56DB5-DFFB-48D2-B060-D0F5A71096E0
Major and minor identifier: 1, 1
Pairing password: AprilBrother
How to modify iBeacon parameters :
you could modify the parameters (bulk) by the APP named with Aprilbeacon directly.
you could search Aprilbeacon from App store or googleplay.
Parameters: UUID/Major/Minor/output power/broadcasting frequency .
Aprilbeacon is the first company in the world to enable this function.
Characteristic:
FFF0->FFF1 - read/write UUID
FFF0->FFF2 - read/write major identifier
FFF0->FFF3 - read/write minor identifier
FFF0->FFF4 - read/write measured power Operation state and power consumption
| State | Operatio State Current (mA) DC/DC OFF | DC/DC ON |
| State 1: wake-up | 6 | 5.4 |
| State 2: pre-processing | 7.4 | 6.9 |
| State 3: pre-receiving | 11 | 10.7 |
| State 4: receiving | 17.5 | 15.4 |
| State 5: Rx changed to TX | 7.4 | 5.8 |
| State 6: transmitting | 17.5 | 15.1 |
| State 7: pre-processing | 7.4 | 6.7 |
50sets/ Carton Package Measurements: 25X20X18 cm Gross Weight: 2kg
we will choose the prompt shipping way based on the cost & the delivery time.
We provide samples for testing, we do custom beacon & housing.
You could configure the iBeacon by our APP:Aprilbeacon(for IOS&Android4.3)
SDK of IOS and Andriod provided.
We provide any consultation or advice needed.
The iBeacon(s) will be dispatched Monday-Friday, same day as the order is made if purchased before 4pm,tracking number provided.
Once the iBeacon(s) has been purchased documentation will be provided .
1 Q: What is the difference between using Apple SDK and April Brother’s SDK ? Is there any additional functionality on your SDK?
A:April Brother's SDK provide some function for configure the April Beacon.
For example:
proximityUUID
major
minor
etc...
Otherwise it's same with Apple SDK.
2 Q: Can I get SDK for Android and iOS?
A: Yes, we can give you SDK for both Android 4.3 and iOS 7.0.
3 Q: Can I have our own logo and in what kind of way?
A: Sure. We can have your logo engraved or printed on your case and also we can put customized sticker on it. Besides, we can customize case based on your requirement if you send us your detailed requirement of your case.
4 Q: Where can I download or air upgrade firmware or device?
A: we will provide you the link for it .
5.Q:Would you also be able to make custom housing for the circuits?
A: Yes, we do custom housing for the circuits as well as the custom iBeacon with logo on the pcb.
6.Q: Do you have any other products that can be used in conjuction with the iBeacon technology?
A: We are developing an sensor with temperature, 3-Axis acceleromete, Lighting. It support iBeacon technology too.
7 Q: Are the products compatible with Andriod apps too?
A: It compatible with Android 4.3 or above. The phone must support Bluetooth 4.0 Smart Ready.
skype: aprilbeacon

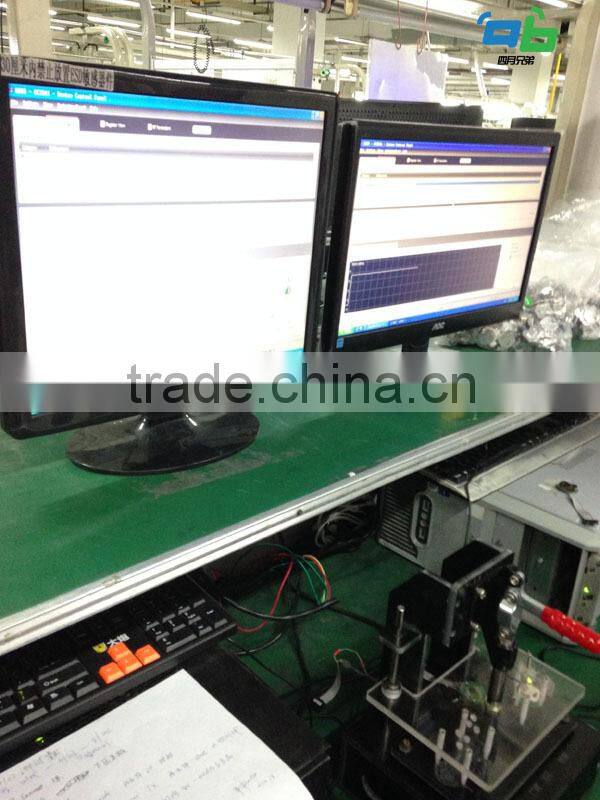

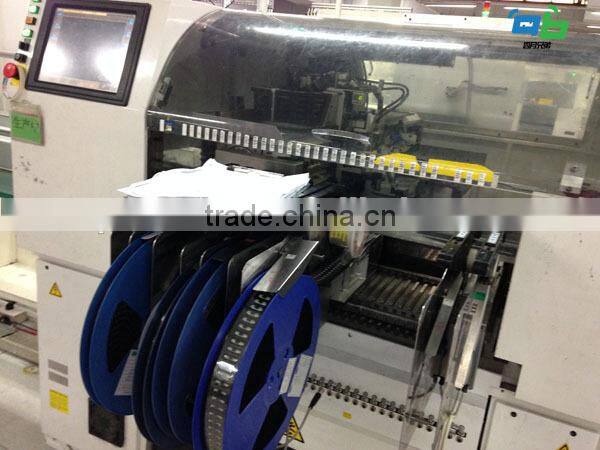

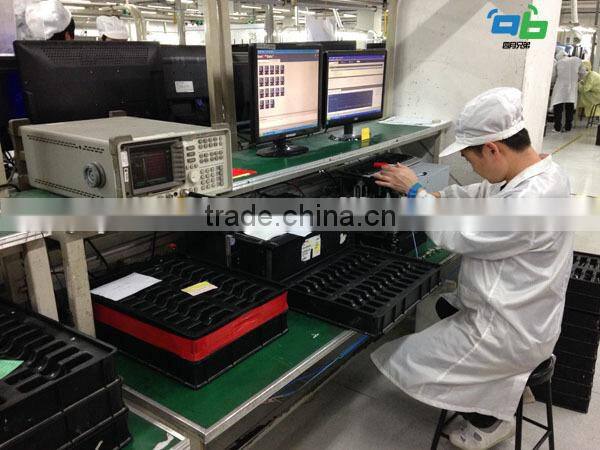

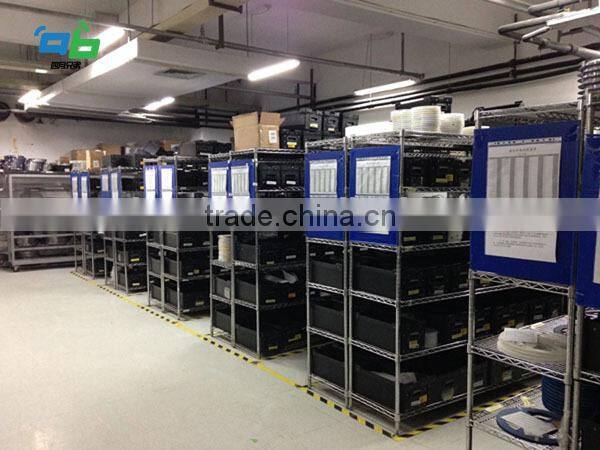

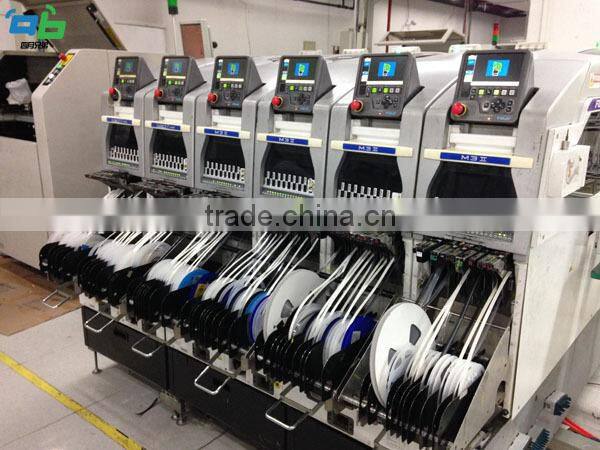

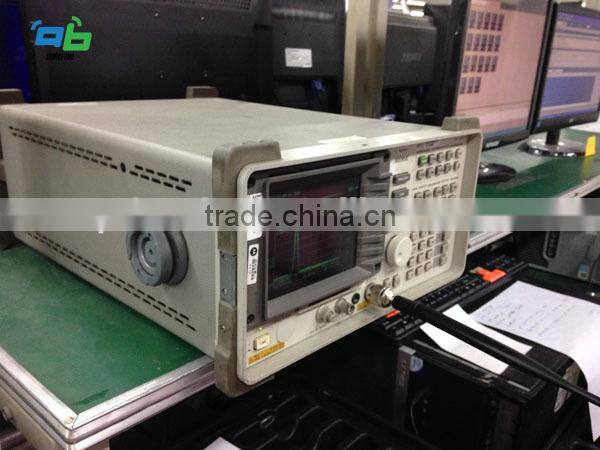

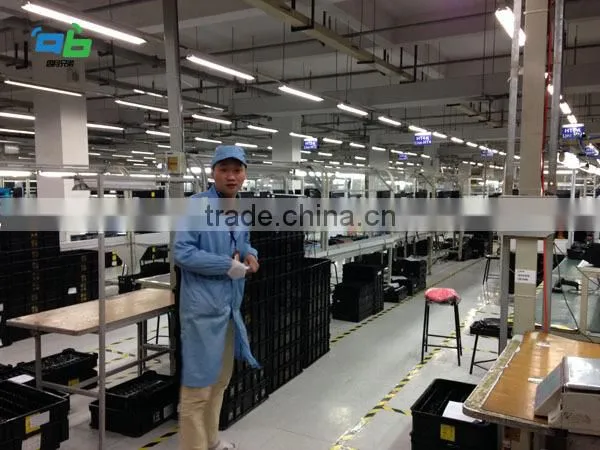

workshop pics:
Contact : Penny Chen
Skype:aprbrother
