300w Advertising Used Laser Spot Welder Machine For Sale
JOY Laser welding machine
What advantages about our productions?
LED signs Multifunction Advertising Letter Metal Laser Welder Machine
1, Joy welding machine character machine welding head can be moved up and down, front and back, left and right to realize regulating and positioning, it is suitable for welding of font edge height 0.5-20cm, operability is greatly increased.
2, The optical path and the power control system use independent design, convenient movement and suitable for a variety of venues and does not affect the font welding.
3, Welding character table horizontal direction is using track ball screw, it can be applied to large, small font welding, the operation table can be easily removable, and has very high precision and stability. The center positioning system can realize accurate welding for various characters.
4, Joy welding character machine control system can control laser power waveform in precision, and the system set up optimization waveform values for different material. As long as select the corresponding material, it can achieve the best welding effect.
5, Small heat affected area, does not cause deformation, better welding depth, firm welding, better melted, leaving only 0.2mm~0.5 trace inside but not in font surface. The convex part of solution material in the bath can bind of the substrate material without convex depression phenomenon.
Who are we ?
Wuhan king suntime CNC Equipment Co., Ltd. is a professional manufacturer of automation equipment, integrated, self-development, production ultra-Art (JOY) license a full range of flat-panel carving and machines, woodworking engraving machine, engraving machine, glass engraving machine, stone engraving machine, laser engraving machine , acrylic blister forming machine, plasma cutting machine, CNC slotting machines and other equipment, products, sales network and after-sales service center has full coverage of the country and sold abroad. Products are widely used in advertising gifts, handicrafts, mold, construction, seals, signs, wood, stone processing, metal cutting, glass, leather and garment processing industry.
Technical Parameter:
Max. laser power |
220W |
Laser wave-length |
1064nm |
Single pulse energy |
90J |
Welding depth |
0.1-1.2mm |
Pulse width |
0.3-20ms |
Welding frequency |
0.5-40Hz |
Adjustable facula size |
0.2-2mm |
Power consumed |
≤9KW |
Electrical source |
220V±10%/50Hz/40A |
Standard worktable |
800*1000mm |
Positioning |
Microscope |
Z-itinerary |
200mm |
Mobile level |
200-800mm |

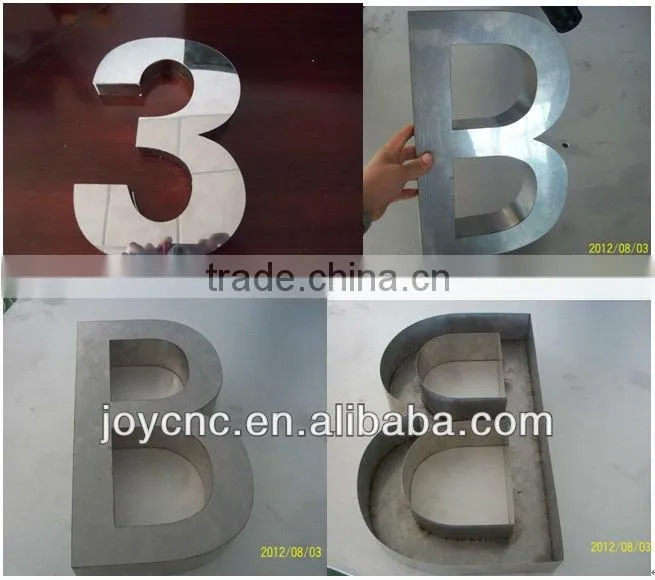

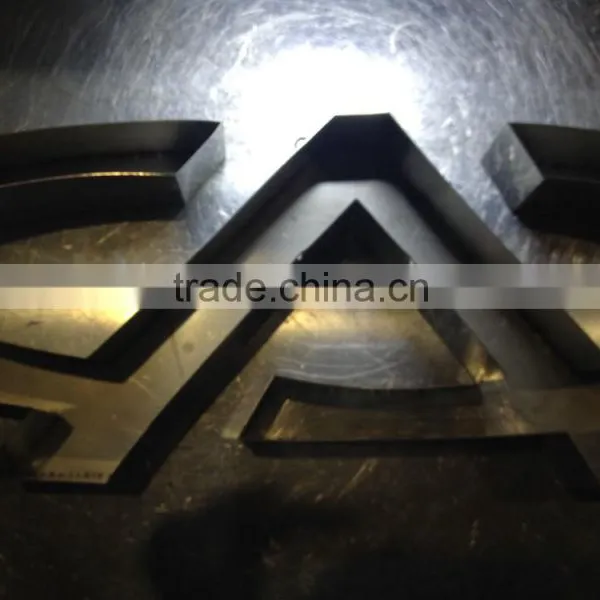

Samples:
Why choose us ?
1, How to pay to you ?
T/T inadvance or by Others . We can accept 30% deposit , and balance paid to us before delivery machine to you .
2, How long is the delivery time?
For standard machines, it would be 15 days; For non-standard machines and customized machines according to clients specific requirements.
3. I want a size that you don`t make as standard, is this possible?
Absolutely, we can design and manufacture any size our clients require.
4. I am new to CNC, how difficult are your machines to operate?
We help a lot of beginners in CNC, if you have a reasonable knowledge of computers and are willing to spend a little time learning it is not that bad.We can also offer installation and operator training service upon request. Clients have to responsible for the expenses on traveling, food and accommodation.
5. How do you send your CNC machine?
They are firstly packaged in wooden case. Usually, we send machine by ship, sometimes, as customer's requirement, send by air or by train. When the goods arrive at your sea port or destination, you can pick up goods with the bill of lading we offered. Or we can arrange the cargo agent to send goods to you.
6. How is your waranty and service?
After clients purchased our products, our sales with contact with clients frequently, to help clients solve any problem regarding to our products. Also, we recommend clients to prepare some spare parts. We can also send spare parts and wearing parts to clients who need them urgently.
Share carton fair pictures with you :
Pls feel freely to email to us for any questions and further infors ,or some advice and thought about us !
